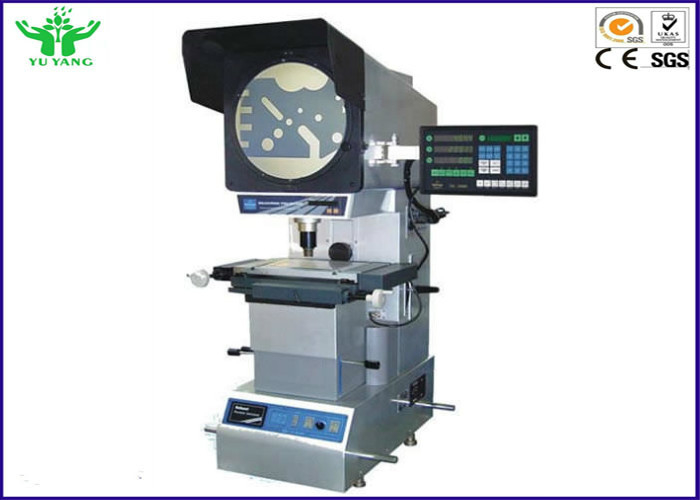

10x 20x 50x 100x Optical Digital Profile Projector Vertical Measure For Wire And Cable

China 10x 20x 50x 100x Optical Digital Profile Projector Vertical Measure For Wire And Cable supplier
10x 20x 50x 100x Optical Digital Profile Projector Vertical Measure For Wire And Cable supplier 10x 20x 50x 100x Optical Digital Profile Projector Vertical Measure For Wire And Cable supplier 10x 20x 50x 100x Optical Digital Profile Projector Vertical Measure For Wire And Cable supplier 10x 20x 50x 100x Optical Digital Profile Projector Vertical Measure For Wire And Cable supplier

Large Image :  10x 20x 50x 100x Optical Digital Profile Projector Vertical Measure For Wire And Cable

Product Details:

Place of Origin: China
Brand Name: YUYANG
Certification: UL, ASTM, CE, ISO
Model Number: YY616

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Product Name: Wire Testing Equipment Usage: Profile Projector
Standard: UL, ASTM, CE, ISO Projection Lenses: 10x, 20x, 50x, 100x
Measuring Accuracy: 3+L/200 Um Power: 220V±10%, AC, 50HZ, 400W
Weight: 170kg Cold: Forced Air Cooling





10x, 20x, 50x, 100x Optical Digital Profile Projector Vertical Measure for Wire and Cable





Application:



1. Vertical profile projector is mainly used for the measurement of the mechanical parts of the length, angle, contour and surface shape.

2. Rotation 360 optical measuring vertical profile projector can inspect all kinds of surface and outline of complicated work-Pieces, cam, screw thread, gear, perform milling cutter and so on.

3. Optical measuring vertical profile projector widely used in the trade of mechanism, meter, electricity, light industry, college, research institute and measurement-inspecting department.

4. Measurement data can output and connect printer and computer.




Product Features:


• Top quality profile projector highly versatile and easy to operate;
• Large travel range 200mm x 100mm as standard;
• Linear scale stage with 0.0005mm resolution;
• Fine ground glass screen for clear image;
• Built-in profile and surface illumination;
• 10x, 20x, 50x, 100x projection lenses available.




Specification:



Model

YY616









Table

The metal table’s size

450 x280 mm

The glass table’s size

306x196mm

X-axis travel

200mm

Y-axis travel

100mm

Z-axis travel

90 (for focus)

Measuring accuracy

3+L/200 um

Resolution (X-axis, Y-axis): 0.001 mm

Projector screen

Screen size (mm): Ø 312 Used range>Ø 300(with the meter line)

Screen rotary range: 0°~360°

Resolution (X-axis, Y-axis): 1´ or 0.01°



Lens

Magnification: 10X option 20X option 50X option 100X option

Object view (mm): Ø30 Ø15 Ø6 Ø3

Working distance (mm): 77.7 44.3 38.4 25.3

Max. work piece height: 90mm 90mm 90mm 90mm

Data Processing System

DP-100multi-function data processing system, appearing in English, can be used to gather the data and measure the point, line, circle, angle and distance.

Illumination

The illumination of transmission and reflection: 24V/150W-halogen lamp.

Power

110V/220V(AC), 50/60HZ, Total power=400W

Cold

Forced air cooling

Dimensions

770*810*1120mm

Weight

170kg

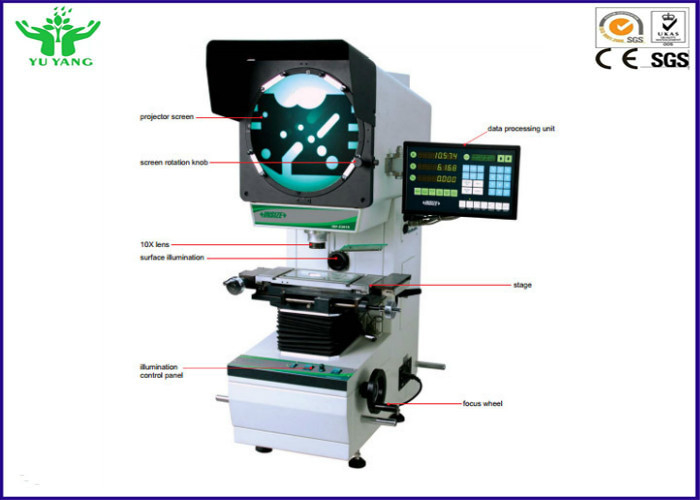

10x 20x 50x 100x Optical Digital Profile Projector Vertical Measure For Wire And Cable

1. Screen

2. screen fast move handle

3. DP-400 Digital Readout

4. Rotary fine tune knob

5. projector frame

6. main body of transmission illumination

7. X axis knob

8. lifting knob

9. footing

10. carry knob

11. dust cover

12. Y axis

13. Base

14. Vertical work table

15. hinge group

16. worktable

17. lower stage table

18. reflection illumination

19. objective

20. upper stage table

21. null position

22. lock screw

23. elastic platen

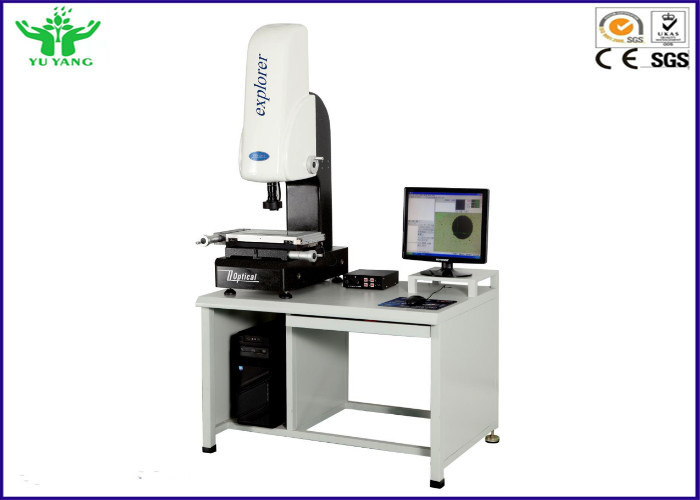

Characteristics:



1) Solid framework, large LCD touch screen and advanced QM2.0 software;

2) High quality optics for crisp and clear images;

3) Adjustable LED surface and contour illumination;

4) High resolution industrial CCD camera;

5) 6.5X Detente zoom lens changeable within the range of 30-190x magnification;

6) Easy to operate user interface;

7) Extended function of printing, saving and exporting data;

8) Excel, word or txt multi-format report output, and DXF input and output;

9) Non-contact optical height measurement;

10) Automatic edge-detecting function;

11) Make Save and input the program;

12) Map photo and measurement;

13) Dimension label function;

14) SPC statistical function;



10x 20x 50x 100x Optical Digital Profile Projector Vertical Measure For Wire And Cable



10x 20x 50x 100x Optical Digital Profile Projector Vertical Measure For Wire And Cable
