0.015~2.7w/m k Automatic Refractories Materials Thermal Conductivity Tester

0.015~2.7w/m k Automatic Refractories Materials Thermal Conductivity Tester

  • 0.015~2.7w/m k Automatic Refractories Materials Thermal Conductivity Tester
  • 0.015~2.7w/m k Automatic Refractories Materials Thermal Conductivity Tester
  • 0.015~2.7w/m k Automatic Refractories Materials Thermal Conductivity Tester
  • 0.015~2.7w/m k Automatic Refractories Materials Thermal Conductivity Tester
0.015~2.7w/m k Automatic Refractories Materials Thermal Conductivity Tester
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: ISO 10635, GB/T 17911.8
Model Number: YY166
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Box
Delivery Time: 30 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Product Name: Flammability Testing Equipment Usage: Thermal Conductivity Test
Material: Stainless Steel Power: AC 220V, 50 / 60hz, 4.5KW
Weight: 200kg Furnace Temperature: Room Temperature ~ 1000
Sample Size: Max 230 × 230 × 30mm
High Light:

flame test equipment

,

flammability test apparatus


0.015~2.7w/m k Automatic Refractories Materials Thermal Conductivity Tester




Description:

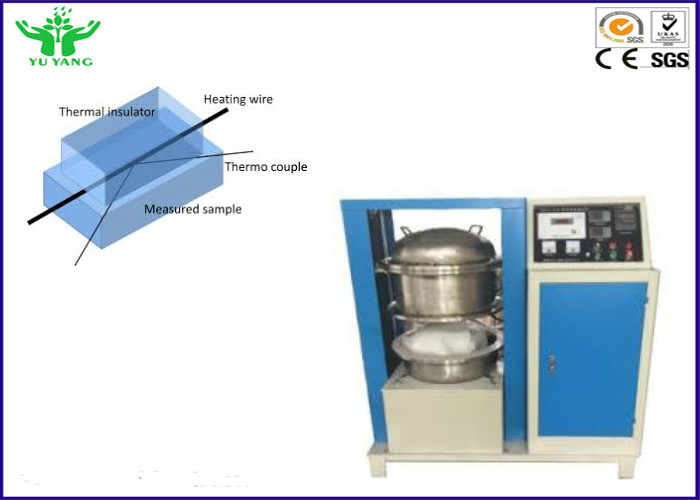

The tester is mainly used to test low thermal conductivity of refractory materials, refractory ceramic fiber products, heat insulating wool and board, and thermal conductivity of fire-resistant materials and powdery materials. It achieves automatic control by applying industrial PC, with friendly interface, high precise temperature control, and printing test report automatically.


Standards:

GB/T 17911.8-2002 Refractory Ceramic Fiber Products--Determination of Thermal Conductivity,
ISO 10635-1999Standard Test Method for Thermal Conductivity of Refractories


Specification:

1. Range of thermal conductivity: 0.015 ~ 2.7w / m. k;
2. Accuracy: ± 3%;
3. Furnace temperature (oC): Room temperature ~ 1000;
4. Heating mode: heat by resistance furnace.
5. Sample size requirements (mm): max 230 × 230 × 30 (mm);
6. Sample group quantity: 1 ~ 3 pieces
7. Metering heating power can be adjusted, but also can be controlled by computer.
8. Circulating water control system: 10g/s
9. Power supply: 220V, 4.5kw.
10. Environmental conditions: room temperature: 18 ~ 25℃, humidity: 20 ~ 80%RH
11. Equipped with automatic thermal analysis software: Windows 10/7/XP English operation interface
12. Complete list of products:

Item no.

Name

Unit

Qty

Marks

1

Thermal Conductivity Machine

set

1



2

Thermostatic Water Cabinet

set

1



3

User manual

piece

1



5

Manual of the intelligent digital instrument

piece

1



6

Manufacturer certificate

piece

1



7

Testing software

piece

1

CD

8

Computer

set

1





0.015~2.7w/m k Automatic Refractories Materials Thermal Conductivity Tester 0

0.015~2.7w/m k Automatic Refractories Materials Thermal Conductivity Tester 1
