High Precision Flammability Testing Equipment Black Body Furnace For Calibration Of Infrared Thermometer

High Precision Flammability Testing Equipment Black Body Furnace For Calibration Of Infrared Thermometer
High Precision Flammability Testing Equipment Black Body Furnace For Calibration Of Infrared Thermometer

Large Image :  High Precision Flammability Testing Equipment Black Body Furnace For Calibration Of Infrared Thermometer Get Best Price

Product Details:

Place of Origin: Dongguan, China
Brand Name: YUYANG
Certification: CE, ISO
Model Number: YYD003

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1500~2000 /set
Packaging Details: Plywood box
Delivery Time: 3-5 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 sets / month
Detailed Product Description
Product Name: Blackbody Furnace Function: Temperature Calibrator
Brand Name: YUYANG Measure Range: 30~50℃
Temp Resolution: 0.01℃ Cavity Diameter: Φ56mm
Cavity Depth: ≥0.99 Temp Stability: ±0.1℃/30min
Temp Uniformity: ±0.1℃ Power: 220V AC 50HZ
High Light:

flame test equipment

,

flammability test apparatus

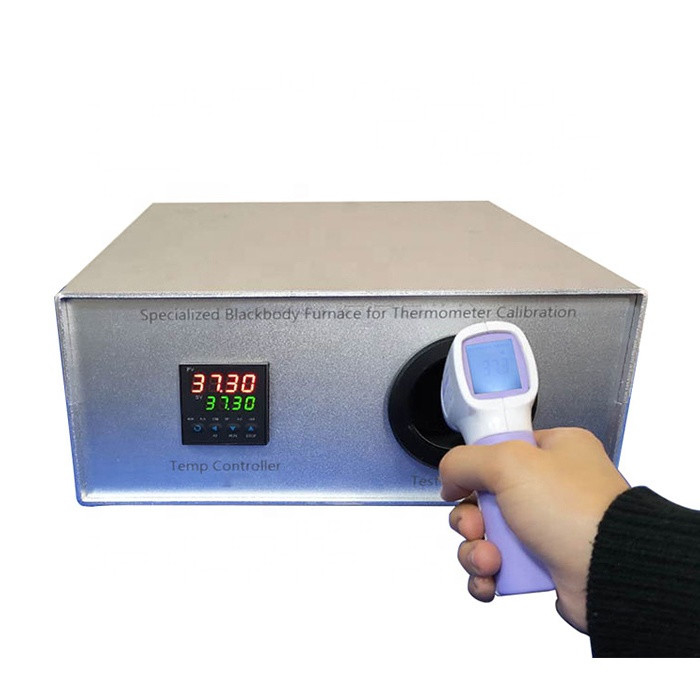

High Precision Black Body Furnace for Calibration of Infrared Thermometer



Description:

A precision blackbody (black body) is a controlled source of thermal radiation used to calibrate infrared radiation thermometers (pyrometers), thermal imagers and radiation heat flux gauges and radiometers. It is our R&D and manufactured product which is special used in calibration for Infrared ear temperature gun, forehead temperature gun and medical thermometer. It can also be used for the calibration of infrared body surface screening instrument. Through our main R&D of the temperature cycle system, plus the new materials, the emissivity can reach more than 0.99.



This black body source has been introduced to meet the demand for a simple, cost-effective, but high accuracy calibrator for the calibration of thermal imagers and infrared thermometers used at temperatures near ambient.

A 56mm diameter, ridged plate is heated or cooled with an internal solid-state thermoelectric heat pump. The temperature of the plate can be set from 30°C to 50°C, to a resolution of 0.01°C.





Specifications:



Item Black Body Furnace for Calibration of Infrared Thermometer

Measure Range 30~50℃

Temp Resolution 0.01℃

Cavity Diameter Φ56mm

Cavity Depth 50mm

Emissivity ≥0.99

Temp Stability ±0.1℃/30min

Temp Uniformity ±0.1C°

Power 220V AC 50HZ

Weight Approx 3.0Kg





Features:



1) Emissivity: more than 0.99, isothermal black body cavity, only one cavity mouth, cavity mouth radiation evenly distributed with the spectrum.

2) Novel design, simple operation

3) Adapt automatic temperature control method, safe and reliable, fast temperature rise and good temperature stability.

4) Easy to operate, Small size and light weight, easy to carry. Suitable not only for laboratory calibration, but also for field calibration.

5) Display the measured value, set value and parameter setting with double row digits. New technology, high precision, multi - function and strong anti - interference ability.

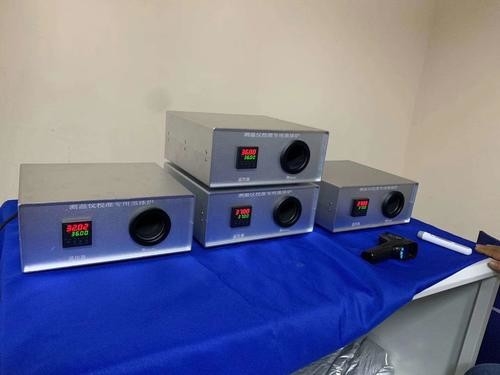

High Precision Flammability Testing Equipment Black Body Furnace For Calibration Of Infrared Thermometer 0

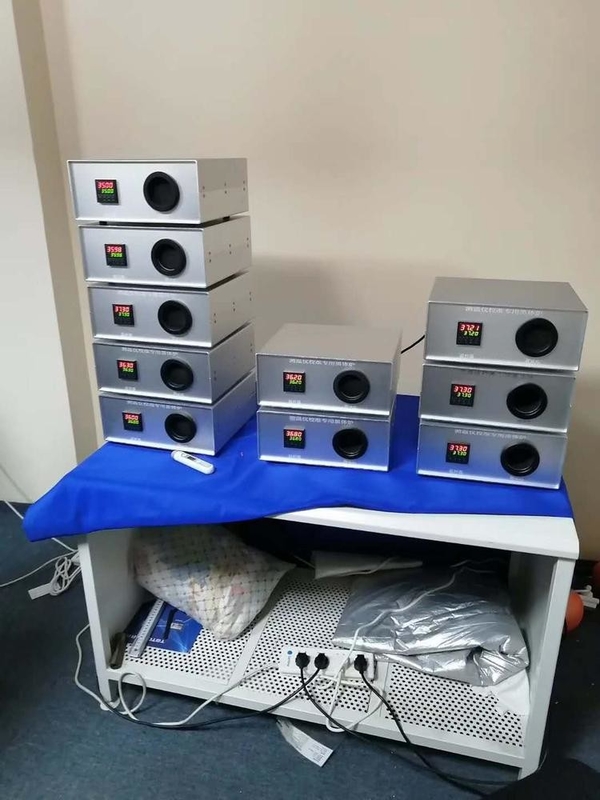

High Precision Flammability Testing Equipment Black Body Furnace For Calibration Of Infrared Thermometer 1

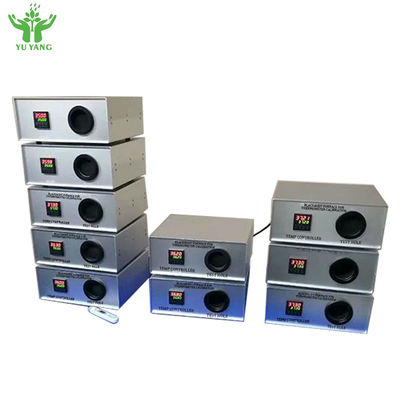

High Precision Flammability Testing Equipment Black Body Furnace For Calibration Of Infrared Thermometer 2
