Commercial Automatic Personal Sanitizer Gate Disinfection Chamber High Precision

China Commercial Automatic Personal Sanitizer Gate Disinfection Chamber High Precision supplier
Commercial Automatic Personal Sanitizer Gate Disinfection Chamber High Precision supplier Commercial Automatic Personal Sanitizer Gate Disinfection Chamber High Precision supplier Commercial Automatic Personal Sanitizer Gate Disinfection Chamber High Precision supplier

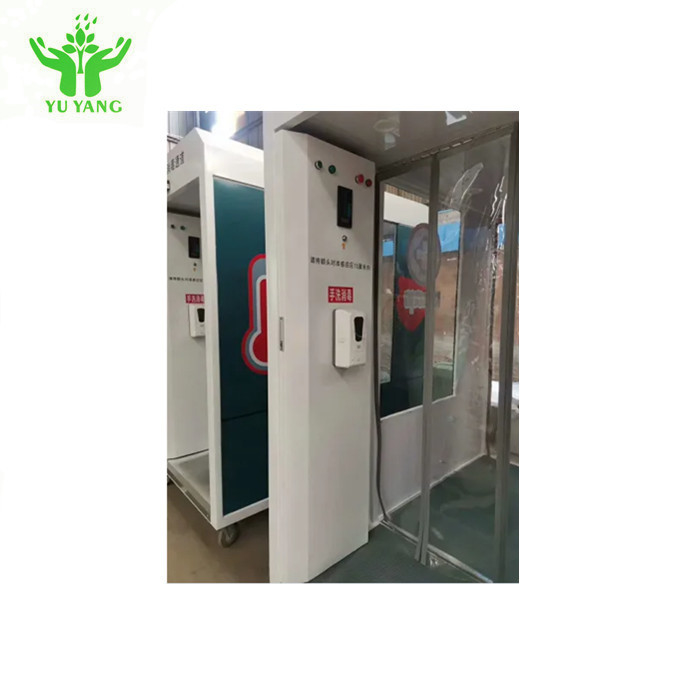

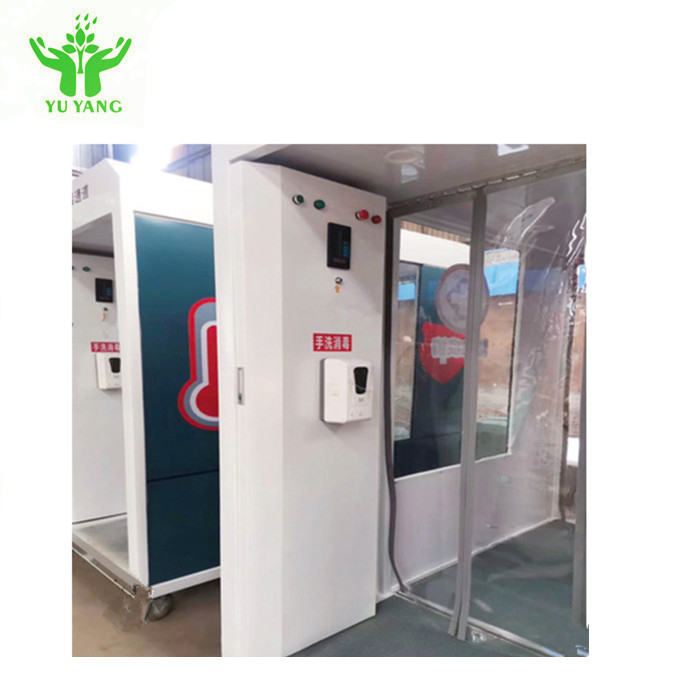

Large Image :  Commercial Automatic Personal Sanitizer Gate Disinfection Chamber High Precision

Product Details:

Place of Origin: CHINA
Brand Name: YUYANG
Certification: ISO13485
Model Number: YYY7

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Wooden Box
Delivery Time: 1-3 WORK DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 SETS A MONTH
Contact Now
Detailed Product Description
Product Name: 2020-Commercial-automatic-personal-intelligent-temperature-measurement Dimensions: 2100*1100*2450mm
Electric Tension: Ac 220V Weight: 80kg
Capacity: 400W Material: Cold Rolled Steel Plate

Commercial-Automatic-Personal-Intelligent-Temperature-Measurement





1. Specification:



Product Name Commercial automatic personal intelligent temperature measurement and disinfection channel
Temperature sensing mode Infrared spectrum (accurate real-time live detection)
Human body induction mode Microwave detection
Temperature collection distance 10-20cm
Temperature collection location Forehead, wrist inside (non-contact type)
Temperature collection accuracy Plus or minus 0.5 C
Temperature collection range 34-45 C
Temperature collection time About 2 seconds
Temperature display panel 2.3 "four digit
Temperature measurement area length 640mm
Body temperature detection output Green light + prompt tone for qualified output red light for abnormal detection + continuous alarm prompt tone
Warm tip:The product dimensions are all measured manually. Please understand that there may be some errors





5. Features:

  • Face recognition and external personnel investigation and file storage
    Can carry out identity authentication and file storage in areas with high population flow such as shopping malls, stations, communities, factories, etc.
  • Using high-precision infrared spectrum sensor, factory calibrated by blackbody radiation source, can measure body temperature without contact at a long distance, can effectively avoid cross infection. Voice prompt for normal body temperature. Voice prompt for over temperature alarm
  • Smart display
    The body temperature display can be adjustable accordingly to the seasonal temperature difference, which can display the human body temperature more accurately.
  • Hand wash smart spray disinfection
    The temperature measurement area is equipped with an intelligent induction sprayer, non-contact induction spraying, safe and hygienic, and can effectively sterilize the hands.
  • Automatically sense the ultrasonic out of the fog, stop when people walk out
    A microwave sensor is installed at the equipment port, which can detect the entry of people, start the fog machine by itself, spray the disinfectant into the channel, and stop automatically when the person leaves to avoid liquid waste.
  • Equilibrium spray box to reduce throttling without hurting facial organs
    The balanced spray method is used in the disinfection channel, instead of directly spraying human facial organs, the mist is more refined and no waste is caused.
  • Bottom circulating waste liquid tank
    There is a circulation tank inside the disinfection channel, which can collect and process the excess disinfection liquid to avoid pollution to the surrounding environment.
    8.Equipment status reminder
    The device has status reminder displays such as work, liquid shortage, light voice, etc., so that the equipment management staff can accurately grasp the equipment operation status. Real-time trends of various personnel
  • Automatic fluid replacement function
    The device is equipped with a large-capacity liquid storage tank, with a liquid alarm prompt function to avoid damage to the atomization equipment due to lack of liquid, and automatically refills the atomization tank and stops automatically, which can meet the daily usage
  • External ramp pedal
    There are non-slip pedals at the entrance and exit of the equipment, which is convenient for the elderly and children
  • Lighting auxiliary functions
    Fully considering the use of different scenes, the channel is equipped with LYD waterproof lights, which can be used at night or in dark places
  • Quick layout and transfer function
    There are four wheels on the bottom of the device, and there are brakes, which can quickly reach the designated location for quick installation. The device uses 220V household AC power, and the function is less than 800 watts. The installation is simple and fast.

Commercial Automatic Personal Sanitizer Gate Disinfection Chamber High PrecisionCommercial Automatic Personal Sanitizer Gate Disinfection Chamber High Precision
