Intelligent Temperature Detection And Disinfection Chamber Cold Rolled Steel Plate

China Intelligent Temperature Detection And Disinfection Chamber Cold Rolled Steel Plate supplier
Intelligent Temperature Detection And Disinfection Chamber Cold Rolled Steel Plate supplier Intelligent Temperature Detection And Disinfection Chamber Cold Rolled Steel Plate supplier Intelligent Temperature Detection And Disinfection Chamber Cold Rolled Steel Plate supplier Intelligent Temperature Detection And Disinfection Chamber Cold Rolled Steel Plate supplier

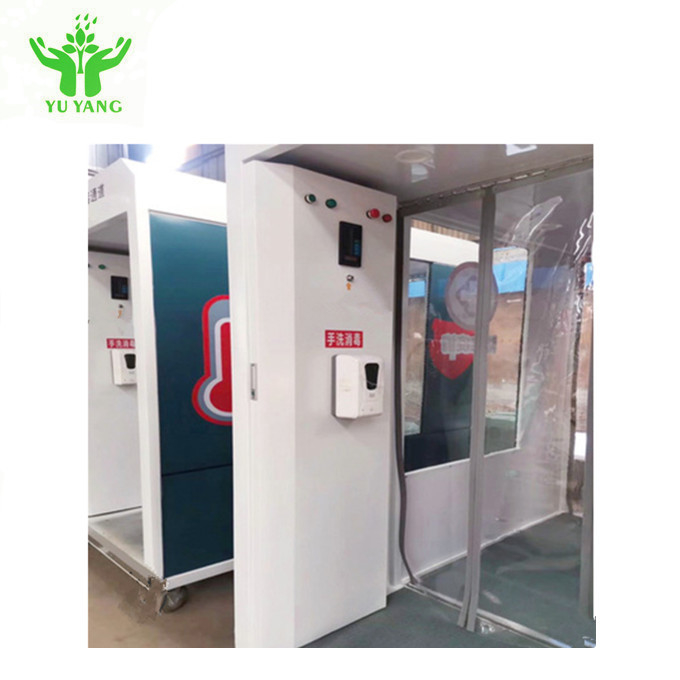

Large Image :  Intelligent Temperature Detection And Disinfection Chamber Cold Rolled Steel Plate

Product Details:

Place of Origin: CHINA
Brand Name: YUYANG
Certification: ISO13485
Model Number: YYY7

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Wooden Box
Delivery Time: 1-3 WORK DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 SETS A MONTH
Contact Now
Detailed Product Description
Product Name: Intelligent Temperature Check Sterilization Channel For Device Dimensions: 2.1*1.1*2.45m
Weight: 220kg Electric Tension: Ac 220V
Capacity: 400W Material: Cold Rolled Steel Plate

Intelligent Temperature Detection and Disinfection Chamber



2020 Intelligent Temperature Detection and Disinfection chamber 400W ISO13485



1. Specification:



Product Name Commercial automatic personal intelligent temperature measurement and disinfection channel
Temperature sensing mode Infrared spectrum (accurate real-time live detection)
Human body induction mode Microwave detection
Temperature collection distance 10-20cm
Temperature collection location Forehead, wrist inside (non-contact type)
Temperature collection accuracy Plus or minus 0.5 C
Temperature collection range 34-45 C
Temperature collection time About 2 seconds
Temperature display panel 2.3 "four digit
Temperature measurement area length 640mm
Body temperature detection output Green light + prompt tone for qualified output red light for abnormal detection + continuous alarm prompt tone
Warm tip:The product dimensions are all measured manually. Please understand that there may be some errors



2. Common machine faults:

Fault phenomenon Cause Elimination method
The power switch is not on

The power supply without power

The power switch is not on

Check the power supply lines to ensure normal power supply

Power switch on

No spray after startup

The water supply pipe is dry

Inlet valve damaged

The fuse burns out

Check the water supply line to ensure normal power supply

Replace inlet valve

Replace fuse of the same specification

Reduced or no fog

Excessive scale in the tank

Atomizer aging

Voltage to reduce

Clean water tank and atomizer

Replace atomizer

Maintain normal voltage



4. Scope of application

Hotel catering industry, school entrance, farmers market entrance, company entrance, unit entrance, cold storage entrance, cinema, KTV, bar entrance, and there are special disinfection requirements of the industry.





Intelligent Temperature Detection And Disinfection Chamber Cold Rolled Steel PlateIntelligent Temperature Detection And Disinfection Chamber Cold Rolled Steel PlateIntelligent Temperature Detection And Disinfection Chamber Cold Rolled Steel Plate
