| Place of Origin: | china |
| Brand Name: | YUYANG |
| Certification: | GB/T16292-1996，ISO14644-1 |
| Model Number: | YY096 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | case package |
| Delivery Time: | 1-3 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/month |
| WEIGHT: | 350g | BATTERY CAPACITY: | 3.7VDC，6000mAh |
|---|---|---|---|
| RESOLUTION: | 1ug/m3,1PC/L | Measure Range: | 0-10,50,100,200,1000,2000,6000,10000PPM(optional) |
| Certificate: | CMC/CPA/CE/SGS | Accuracy: | ≤±3% |
| Weight: | 130g | ||
| High Light: | textile testing machines,fabric stiffness tester |
||
Melt-blown cloth filter dust tester
Product Description

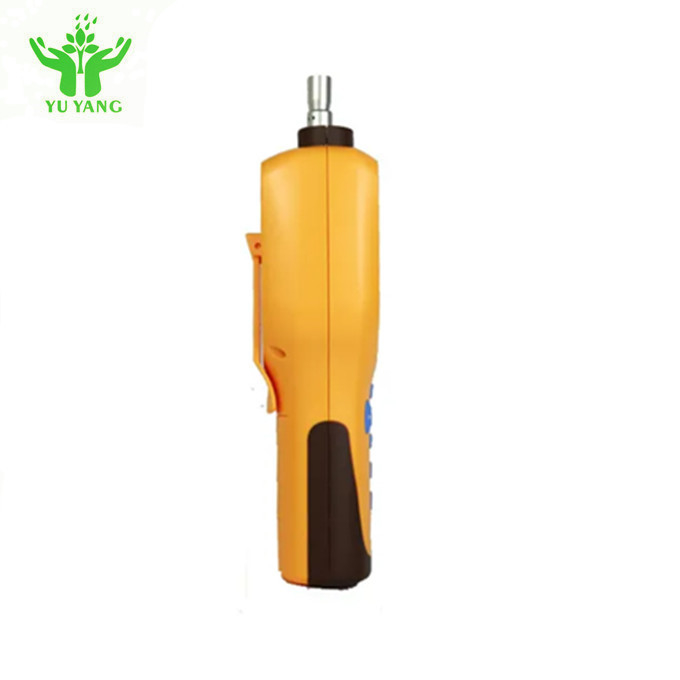

The pump suction type compound gas detector is suitable for VOC gas concentration detection in various industrial environments and special environments. It adopts imported electrochemical gas sensors and micro-controller technology, with fast response and high accuracy,which makes it ranks the leading level in China.
Specifications
| Product Type | Total Volatile Organic Gas (VOC), imported PID photoion sensor |
| Detection Range | 0-10,50,100,200,1000,2000,6000,10000PPM(optional) |
| Resolution | 0.01PPM(0-100PPM),0.1PPM(0-1000PPM),1PPM(0-10000PPM) |
| Response Time | ≤20s(T90) Detection Accuracy:≤±3%(Depending on the specific sensor) |
| Linearity Error | ≤±1% Zero Drift:≤±1%(F.S/Year) |
| Recovery Time | ≤20s Scalable Gas Sensor:User can customize 1-5 gas sensors in any combination |
| Repeatability | ≤±1% Explosion Proof Sign:CNEx16.0547 |
| Temperature and Humidity(Optional) | Temperature detection range:-40 ~ 120℃ Humidity detection range:0-100%RH |
Powerful Function
(1) standard function
• data logging,up to 154,000 groups
• temperature and humidity detection
• can be comfigure flexibly up to 5 gas sensors
(2) optional function
• GPRS wireless transmission
• large capacity TF memory card storage
• dust detection(PM0.3/PM0.5,PM1.0,PM2.5,PM10)
• mobile printing,micro-printer or portable bluetooth printer
• custom setting detection mode,storage mode and print mode as needed
• 3.5 inches LCD color screen with IPS display,perfectly display from any angles
• pump can be turned off during the detection interval to prolong the standby time
• dust-proof, explosion-proof, intrinsically safe circuit design
• three concentration units are available: PPM,%VOL,mg/m3
• with temperature compensation,suitable for all kinds of harsh applications
Portable fusible spraying cloth tester
Portable fusible spraying cloth tester
