| Place of Origin: | CHINA |
| Brand Name: | YUYANG |
| Model Number: | YYY5 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 1-3 WORK DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Product Name: | Industry School Bus Public Thermal Scanner | Power: | Electronic |
|---|---|---|---|
| Power Supply: | 220V 50Hz | Response Time: | 0.1s |
| Temperature Measurement Range: | 30-42C | Repeat Accuracy: | ±0.2ºC |
| High Light: | flame test equipment,flammability test apparatus |
||

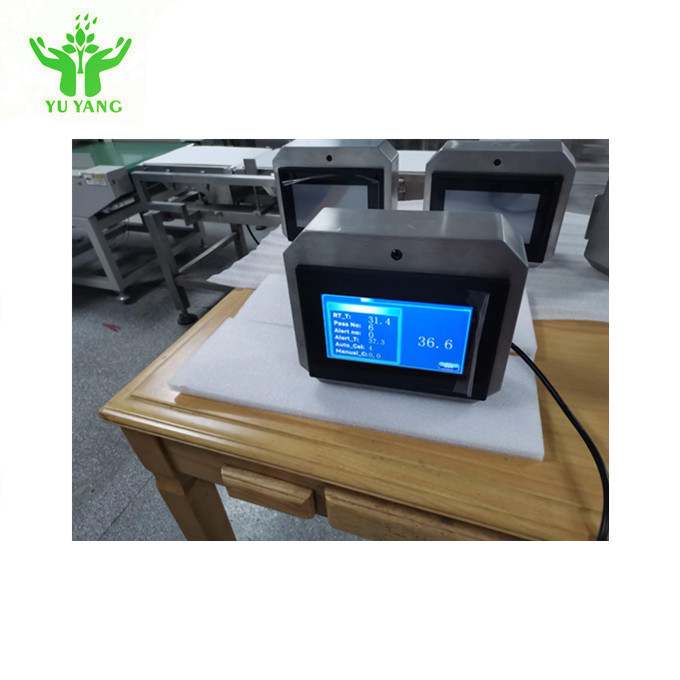

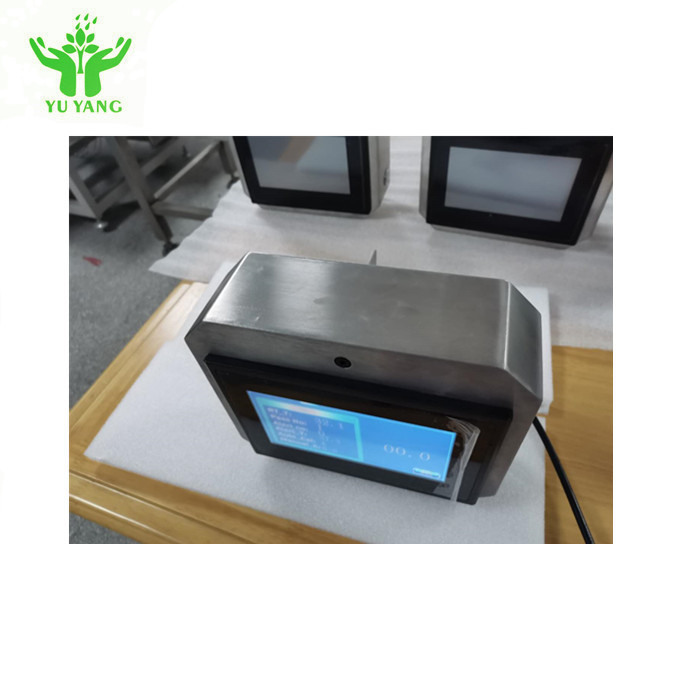

Industry School Bus Public Thermal Scanner
Product features
The product uses infrared thermal imaging technology to perform infrared thermal imaging on the human face or hand, recognize the temperature of each point, and then calculate the maximum temperature of the face or hand;
Non contact fast temperature measurement, 5 ~ 15cm away from the instrument, with the eyes directly looking at the lens, the instrument can measure the temperature within 2 seconds
The normal temperature buzzer will sound for 1 second, and the over temperature buzzer will continue to sound an alarm

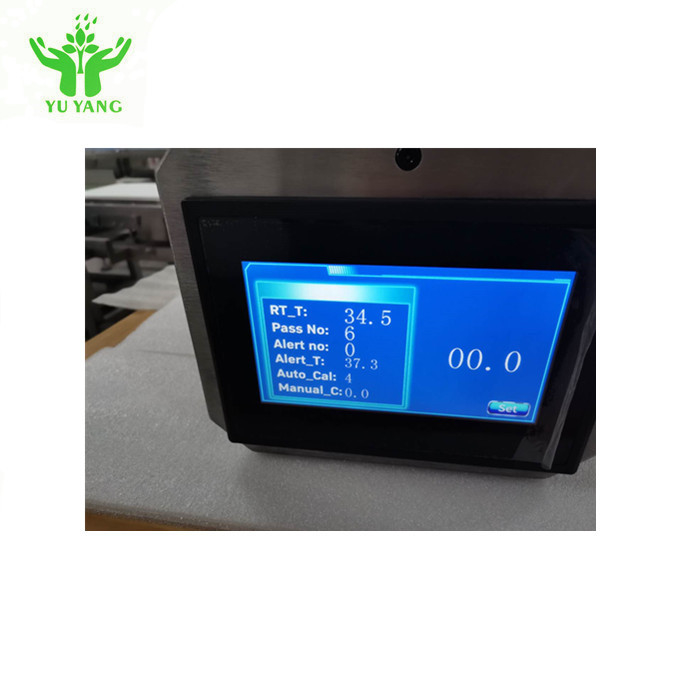

It can display the latest measurement records, including time and temperature;
Display the total number of people measured and the number of people overtemperature;
Three month measurement records can be stored; optional record export function, measurement record excel file exported to U disk
Optional WiFi function, measurement data can be uploaded to the server, and can be viewed by mobile phone
Specification
| Detection distance | Forehead, 5-15CM | Temperature measurement range | 30ºC~42ºC |
| Minimum resolution | 0.1ºC | Temperature measurement module | MELEXIS |
| Temperature measurement accuracy | ±0.5ºC(indoor temperature) | Repeat accuracy | ±0.2ºC |
| Response time | 0.1S | measure time | 0.5S-1.5S |
| Display | 7 inch color touch screen | Power consumption | ≤50W |
| External power | 220V 50Hz | working environment | -10ºC─35ºC |
| (mm) Dimension | 23.5(L) x 9.2(W) x 20(H) | (mm)Tunnel Dimension |
Applicantion
Government departments: including courts, hospitals, subways, high-speed rail, prisons, detention centers, labor camps, drug treatment centers, and public security bureaus.
Public places: including schools, gymnasiums, entertainment venues (disc halls, dance halls, etc.), airports, railway stations, bus stations, ports, exhibition halls, museums, banks, oil depots, power stations, etc.
