Convenient Industry Thermal Body Scanner With 7 - Inch LCD Screen

China Convenient Industry Thermal Body Scanner With 7 - Inch LCD Screen supplier

Large Image :  Convenient Industry Thermal Body Scanner With 7 - Inch LCD Screen

Product Details:

Place of Origin: CHINA
Brand Name: YUYANG
Model Number: YYY5

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Box
Delivery Time: 1-3 WORK DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Power Supply: 220V 50Hz Response Time: 0.1s
Temperature Measurement Range: 30-42C Repeat Accuracy: ±0.2ºC
Temperature Measurement Accuracy: ±0.5ºC(indoor Temperature) Detection Distance Forehead: 5-15CM

Industry School Bus Public Thermal Scanner



Description



Metal and temperature detection integrated security gate is an accurate and convenient detection device for detecting human body temperature and whether it can carry metal. It uses a non-contact abnormal body temperature preliminary screening method, which has a fast detection speed and can prevent personnel from being exposed to cross infection. At the same time, the common 7-inch LCD screen can display the measured temperature, the temperature of the alarm, the number of alarms, the number of people passing through, and the number of compensations. When a person passes through the security inspection channel, if the person's body temperature exceeds a preset temperature or metal is trapped, the system will automatically alarm. If the body temperature is normal, the normal body temperature value will be displayed, and the body temperature will be displayed on the screen in real time





Specification



Detection distance Forehead, 5-15CM Temperature measurement range 30ºC~42ºC
Minimum resolution 0.1ºC Temperature measurement module MELEXIS
Temperature measurement accuracy ±0.5ºC(indoor temperature) Repeat accuracy ±0.2ºC
Response time 0.1S measure time 0.5S-1.5S
Display 7 inch color touch screen Power consumption ≤50W
External power 220V 50Hz working environment -10ºC─35ºC
(mm) Dimension 23.5(L) x 9.2(W) x 20(H) (mm)Tunnel Dimension





Product features

Convenient Industry Thermal Body Scanner With 7 - Inch LCD Screen

Walk Through Infrared temperature sensor Body Temperature Scanner

When no one is measuring, the measured temperature shows the ambient temperature.

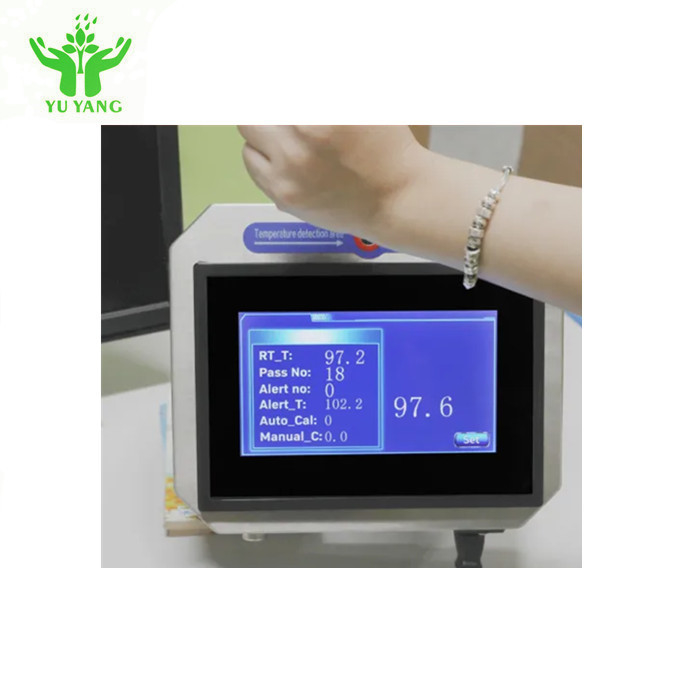

The inspected person only needs to raise his head slightly when passing normally to detect the forehead temperature, and the final test result will be displayed at the lower right of the LCD screen.

Automatically counts once for each detection, the system automatically counts the number of detections and the number of alarms.

Compensation parameters can be adjusted from 0-9, 0 is suitable for a relatively low-temperature environment, and 5 is suitable for a relatively warm environment. Users can adjust according to the use environment. (The smallest the number, the greater the compensation)



Convenient Industry Thermal Body Scanner With 7 - Inch LCD ScreenConvenient Industry Thermal Body Scanner With 7 - Inch LCD Screen
