| Place of Origin: | CHINA |
| Brand Name: | YUYANG |
| Certification: | ISO15579, ISO679, ISO7438, ISO6892, EN100021-1, ASTM E8M, JIS Z2241-1998, ISO75000-1, ISO4012, ISO1006 |
| Model Number: | YYD03 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 1-3 WORK DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Power: | AC 220V,50 Hz | Warranty: | 1 Year |
|---|---|---|---|
| Weight: | Around160kg | Color: | Silvery White |
| Standards: | GB/T16491; GB/T1040; GB/T1041; GB/T8804.1-2; GB/T8 | Accuracy: | The Value ±1% / The Value ±0.5% |
| High Light: | flame test equipment,flammability test apparatus |
||

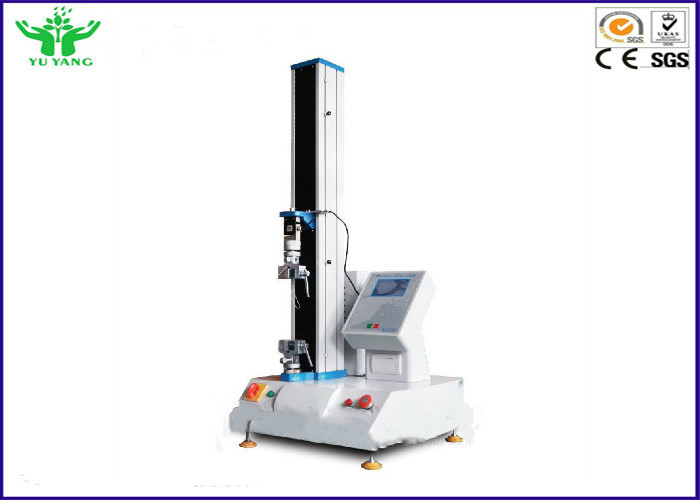

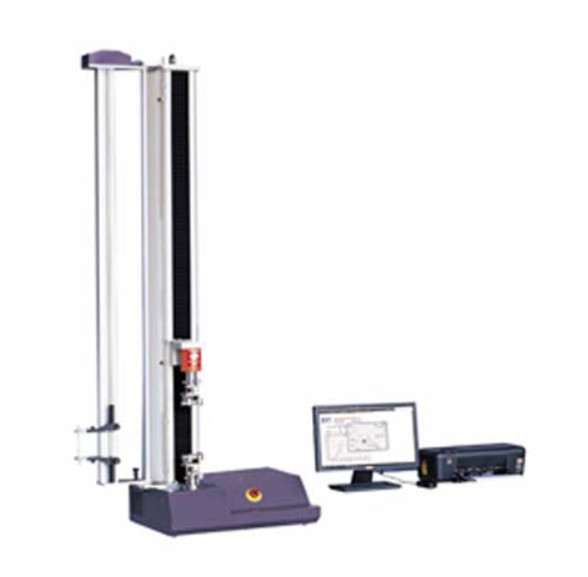

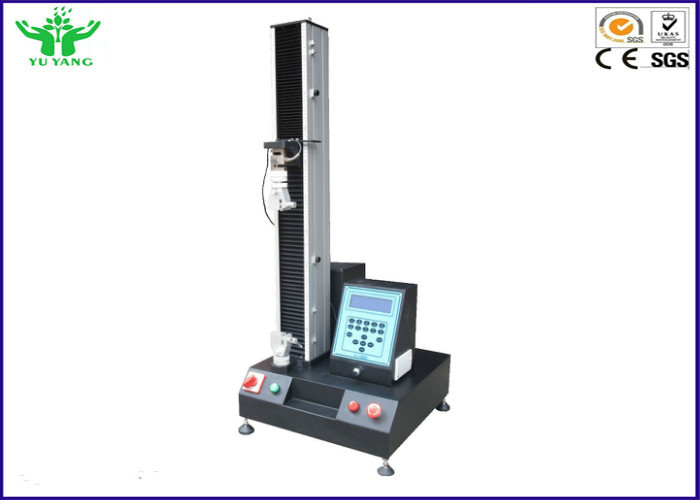

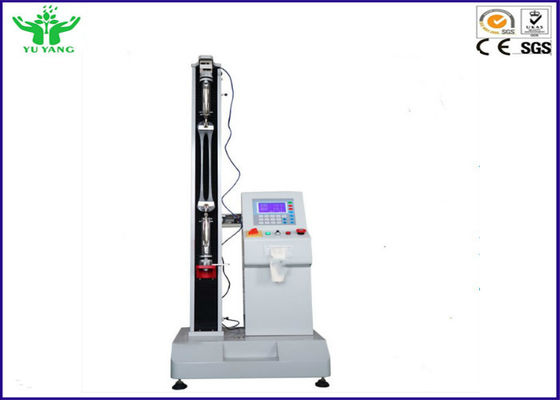

0.5% F.S Automatic Wire and Cable Tensile and Elongation Testing Machine 1200mm
Product Description:
Product Description:
Computer Control Paper Tear Tensile Strength Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control. This series of machine using singlespace structure, operational space at the bottom,it is mainly applied to test nonmetallic and metallic material ,which the load is less than 1kN, it has the parameters, such as stress,strain, control mode of displacement ,calculated max force, tensile strength, bending strength, compressive strength,elastic modulus, rate of elongation, yield strength and others.
Main function:
This machine can be applied to test lots of materials in tension, compression, tear, peel (can 90 degrees and 180 degrees) and other
mechanical test, such as rubber, tires, belt, shoes, plastic, film, acrylic, FRP, ABS, EVA, PU, aluminum-plastic pipe, composite materials, waterproof materials, fibers, textiles, wire and cable, paper, gold foil, ribbons,thread, spring, wood,medicine packaging materials, tapes etc.
Main features:
1. Adopt Panasonic servo motor,the beam moves up and down to test the load through the transmission.
2. The whole control system is safe and high reliability.
3. Microcomputer control the whole testing process, real-time dynamic display the load values, displacement
values, deformation,testing speed and testing curves.
4. Microcomputer for data processing and analysis, testing results can be saved automatically, testing curvers
can be transferred out after the test, you can know the testing process through the testing curvers, or compare
with others curves, or amplify the curvers.
5. the testing software of the Window, with strong processed capabilities of data and graphics, it can
immediate print out a complete testing report and testing curves.
6. Has limit protection, overload protection, emergency stop and other safe protective functions.
Features:
| Item | Description |
| Frame capacity | 500kg |
| Load cell brand | Germany brand load cell for high accuracy 500kg (5,10,50,100,200kg are optional) |
| Load accuracy | 0.5% F.S |
| Control system | LCD with build-in printer /PC with windows 7 system |
| Motor | Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Vertical test space | 1400mm including fixture |
| Test speed | 0.1~500mm/min (adjustable) |
| Software | TM 2101 |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
| Safety features | E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
