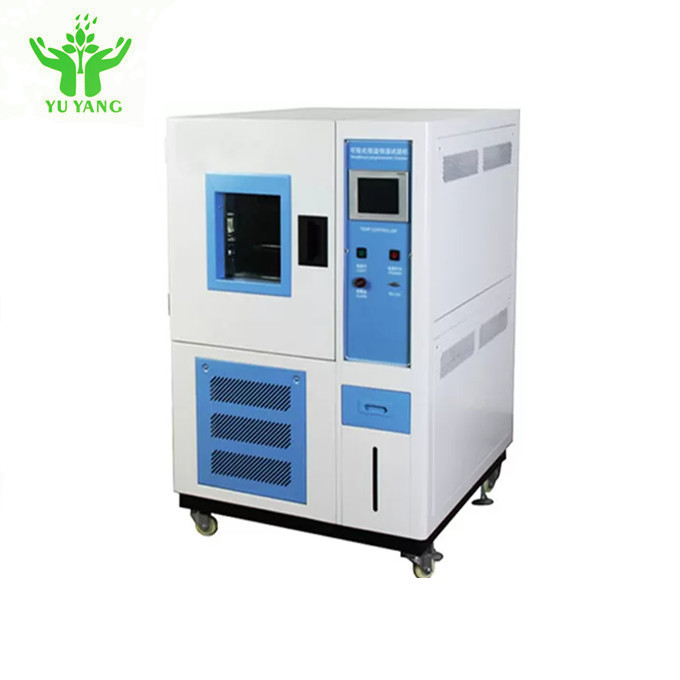

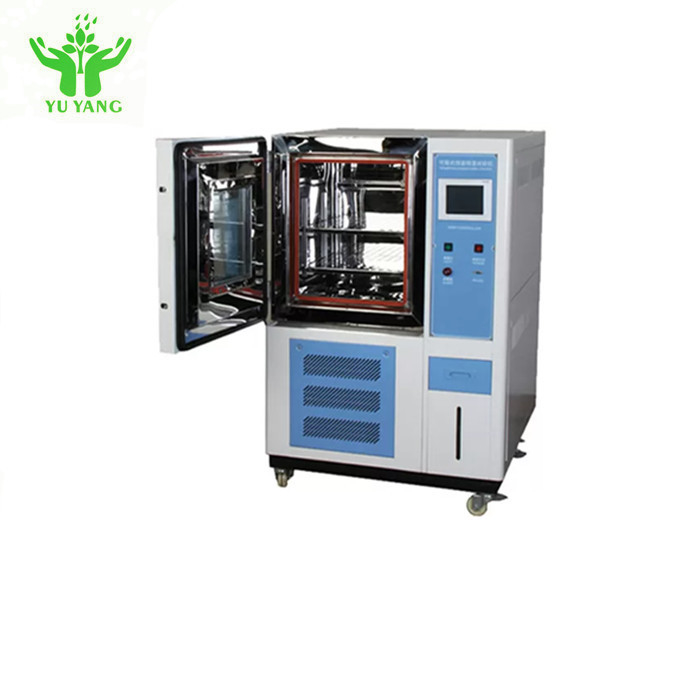

Water - Cooled Climatic 50HZ Environmental Test Chamber

Water - Cooled Climatic  50HZ Environmental Test Chamber
Water - Cooled Climatic  50HZ Environmental Test Chamber

Large Image :  Water - Cooled Climatic 50HZ Environmental Test Chamber Get Best Price

Product Details:

Place of Origin: CHINA
Brand Name: YUYANG
Certification: IEC60068-2-1, IEC60068-2-2, GJB150.3, GJB150.4, GJB150.9
Model Number: YYE006

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Wooden Box
Delivery Time: 1-3 WORK DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 SETS A MONTH
Detailed Product Description
Deviation: ±0.5°C-±2°C Shell Material: Stainless Steel 304 / Coating
Inner Wall: #SUS 304 Stainless Steel Temp And Hum Range: -40°C~150°C
Dimensions: 400*500*500(mm) Power: AC 220V/50HZ
High Light:

thermal shock test chamber

,

salt spray test chamber

High-Low Temperature and Humidity Climatic Test Chamber Price​



-40°C~150°C High - Low Temperature and Humidity Climatic Test Chamber



Description



High-Low Temperature and Humidity Climatic Test Chamber Price is used to test the material characteristic for wire type, skin type, plastic, rubber, cloth, Equiped with a special ventilation regulator for maintain the fresh air inside when heating. This testing machine design with sophisticated air-displacement adjustment device and a digital voltage meter, current meter, watt-hours, the timer can be used to measure the air replacement rate. Horizontal circulatory air supply system and both sides of airflow regulator to ensure the internal temperature uniformity and stability.





Features:



1. High-texture appearance, the surface handled through the matte stripes, and use of planar non-reactive handles, easy to operate, safe and reliable.
2. Rectangular complex glass window can be viewed the testing sample, windows with anti-sweat heater device that prevents water vapor condensation, and high-brightness PL light.
3. Double-insulated airtight container, which can effectively isolate the internal temperature of leakage.
4. With an external water supply system can be easy to supply water and automatically reuse.
5. Compressor circulatory system from French and use environmentally refrigerants ( R404).
6. PLC controller, touch screen import and display the measure values and curve
7. Controller with multi-segment program edited, temperature and humidity can be controlled quickly (OUICK) or slope (SLOP).
8. Built-in mobile pulley easy to move and has a strong positioning screw fixed position



Main Technical Parameter









Function





Fluctuation

±0.5°C     ±2.5%RH

Deviation

±0.5°C-±2°C    ±3%RH(>75%RH); ±5%RH(≤75%RH)

Controller

Analytical

Accuracy

±0.3°C      ±2.5%RH





Material





Inner Wall

#SUS 304 Stainless steel

Outer Skin

#SUS 304 Stainless steel

Heat

Preservation

High temperature resistant,

high chlorine acid b vinegar foam insulation materials

Wind Cycling Way

Centrifugal fan-broadband type forced air circulation

Refrigeration Way

Single stage compression refrigeration

Refrigerator

French Tecumseh

Refrigerants

R4O4A USA DuPont environmental protection refrigerant(R23+R404)

Condensing Way

Air-cooled or water-cooled

Heater

Nickel chrome heating wire heater

Humidifier

Semi-closed steam and wet

Water Supplying Way

Automatic cycling water supply

Standard

Accessories

1 Observe window(double-deck cavity toughened glass),

1  50mm test hole in the left,

1  PL inner chamber lamp,

2 clapboards,

1 bag of wet and dry bulb,

3 fuses,

1 power line.
