UL1581 Wire and Cale Flame Testing Machine AC220V, 50HZ

UL1581 Wire and Cale Flame Testing  Machine AC220V, 50HZ
UL1581 Wire and Cale Flame Testing  Machine AC220V, 50HZ UL1581 Wire and Cale Flame Testing  Machine AC220V, 50HZ UL1581 Wire and Cale Flame Testing  Machine AC220V, 50HZ UL1581 Wire and Cale Flame Testing  Machine AC220V, 50HZ UL1581 Wire and Cale Flame Testing  Machine AC220V, 50HZ UL1581 Wire and Cale Flame Testing  Machine AC220V, 50HZ

Large Image :  UL1581 Wire and Cale Flame Testing Machine AC220V, 50HZ Get Best Price

Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: UL1581
Model Number: YY611
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden case
Delivery Time: 10-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50/sets
Detailed Product Description
U Manometer:: 1M Pressure Gauge:: 0-160kPa
Power Supply:: AC220V, 50HZ Total Power:: 200W
Burn Off Time:: It Can Be Set Spraying Time:: It Can Be Set
High Light:

UL1581 Flame Test Chamber

,

200W Flame Test Chamber

,

L1800mm Flame Test Chamber

UL1581 Wire and Cale Flame Testing Machine AC220V, 50HZ

Descriptions:

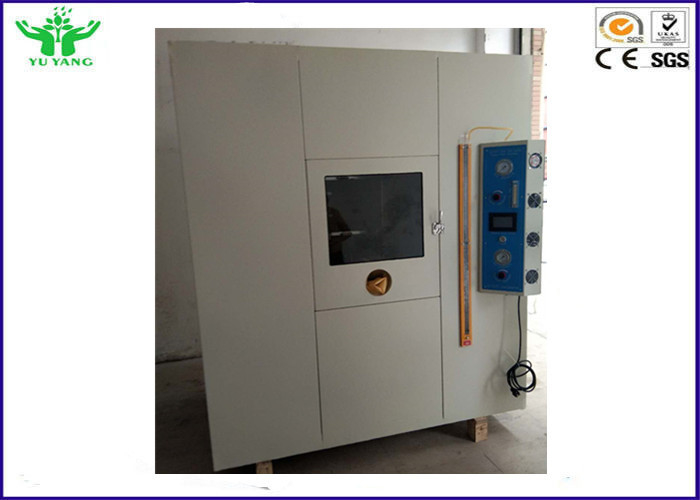

UL1581 Wire and Cable Flame Test Chamber is used to test the flame retardant performance of insulation layer under abnormal conditions such as overheat and overcurrent.This sect will be manufactured strictly according to UL1581 sect 1080.1~1080.14 , which fully meets the VW-1 Flame Test standard and is applicable to FT-1 and FT-2 of UL1581.The equipment has beautiful appearance, reasonable internal structure, simple and fast operation, accurate test. It is widely used by wire and cable manufacturers, colleges ,universities and commodity inspection departments.

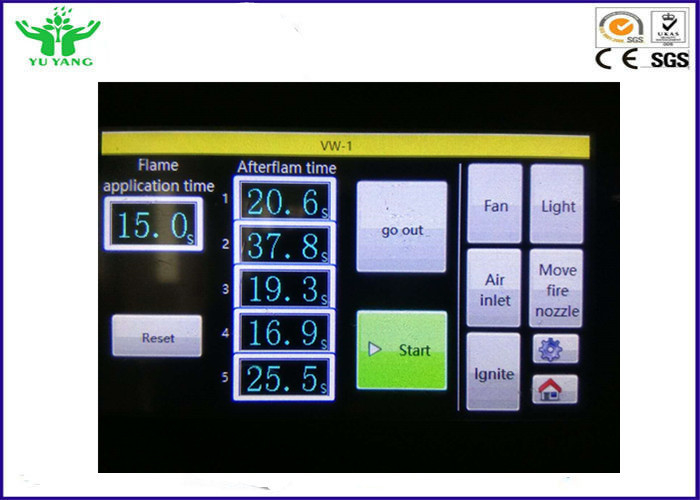

The equipment is composed of test part and control part and adopts integrated design, which is convenient for field installation and commissioning.The control system is highly automated and has the function of automatic ignition.Real-time display of temperature and time, convenient observation and recording, stable and reliable use.

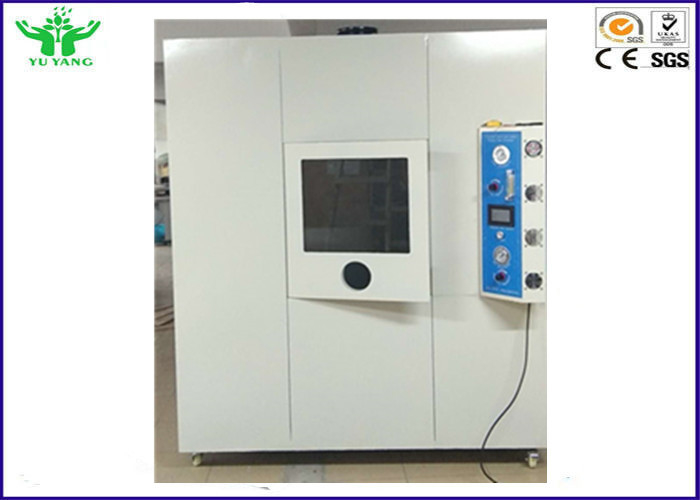

The back of the chamber body is equipped with a strong exhaust air exhaust system. After the test is completed, it is opened at the same time with air supply system to discharge waste gas to outside in time. The front of the chamber body is equipped with sealed toughened glass window and operation window, which is convenient for the observation of test process and operation of experimenter.

Main Technical Parameters:

1. The machine is composed of combustion chamber and control part.

2. Test chamber: the volume is greater than 4m.The area above the test flame is greater than 2.0m;The chamber consists of a frame inside and outside coating thickness of 1.5mm electrostatic high-temperature paint steel plate, CNC machine tool processing and molding, external spray treatment, internal paint.There are two layers of paint, one for anti-rust paint, two for production of black matte paint, with anti-rust corrosion and other characteristics.

3. The back of chamber is provided with a ventilation and smoke exhaust system, and forced exhaust is used.The exhaust gas can be discharged to outdoor after the test is completed.

4. Operating equipment: There is an operating window below the observation window, with a length of about 600mm corrosion-resistant long arm gloves, square then seal operation.

5. Lighting equipment: Adopt an anti-fog and anti-smoke LED lamp

6. Spraying time: it can be set

7. Burn off time: it can be set

8.The number of flame: setting

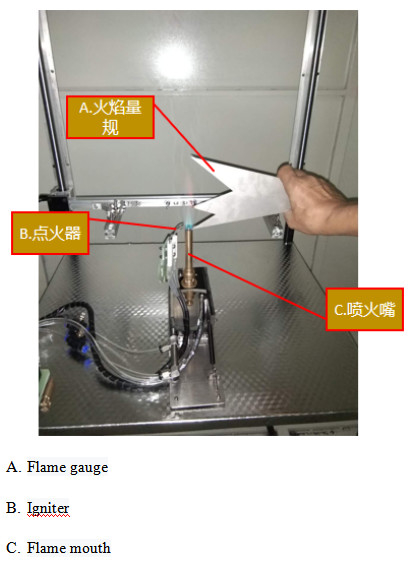

9. The device has the functions of automatic ignition, automatic timing and counting, with high test accuracy

10. U manometer: 1M

11. Pressure gauge: 0-160kPa

12. Power supply: AC220V, 50HZ

13. Total power: 200W

14. External dimension of equipment: L1800mm*W1200mm*H2000mm (excluding dimensions of exhaust outlet and casters)

Spraying time:  it can be set
Burn off time:  it can be set
The number of flame:  setting
U manometer:  1M
Pressure gauge:  0-160kPa
Power supply:  AC220V, 50HZ

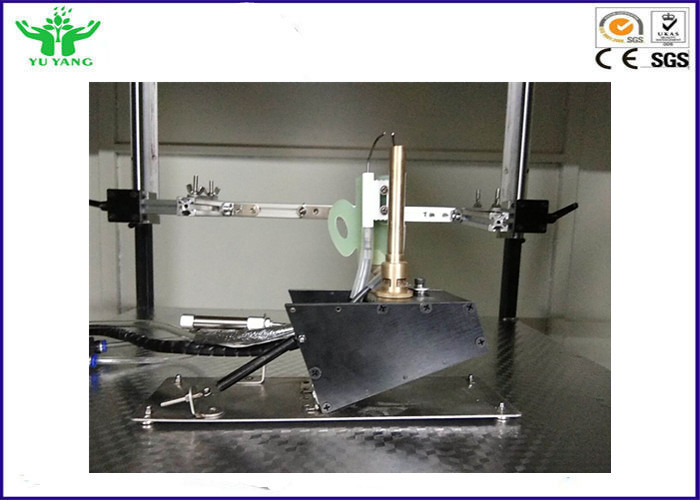

Accessories Show:

UL1581 Wire and Cale Flame Testing  Machine AC220V, 50HZ 0UL1581 Wire and Cale Flame Testing  Machine AC220V, 50HZ 1UL1581 Wire and Cale Flame Testing  Machine AC220V, 50HZ 2UL1581 Wire and Cale Flame Testing  Machine AC220V, 50HZ 3
