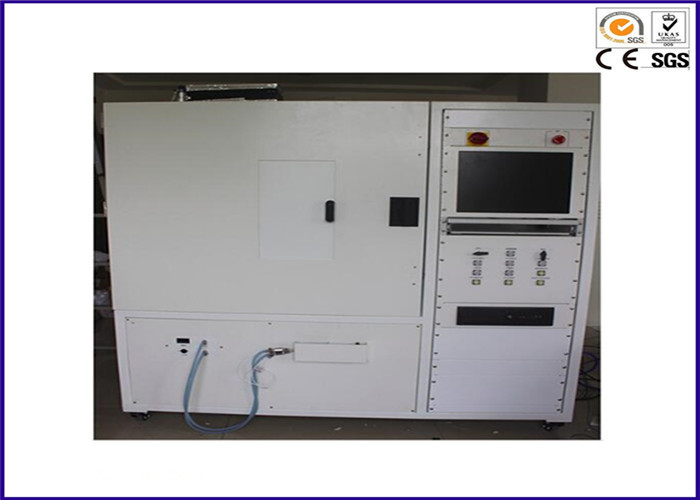

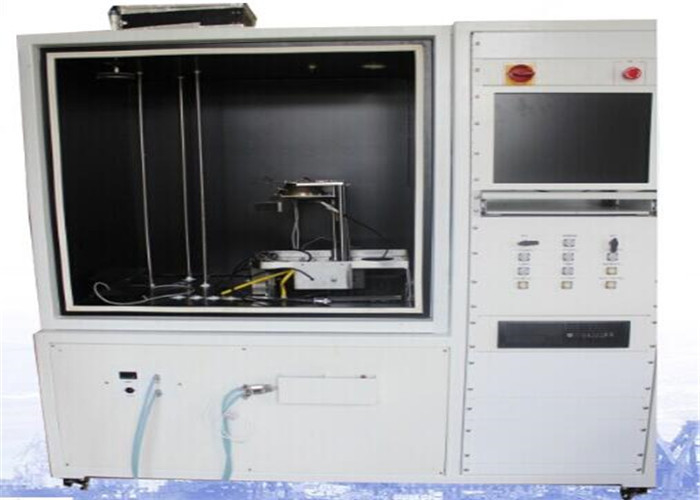

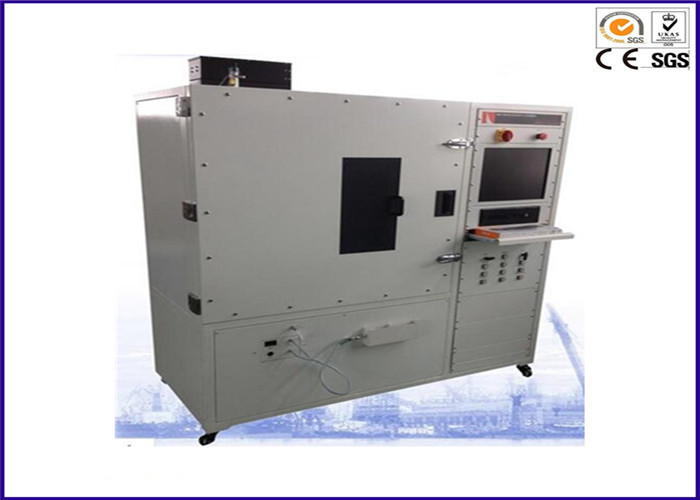

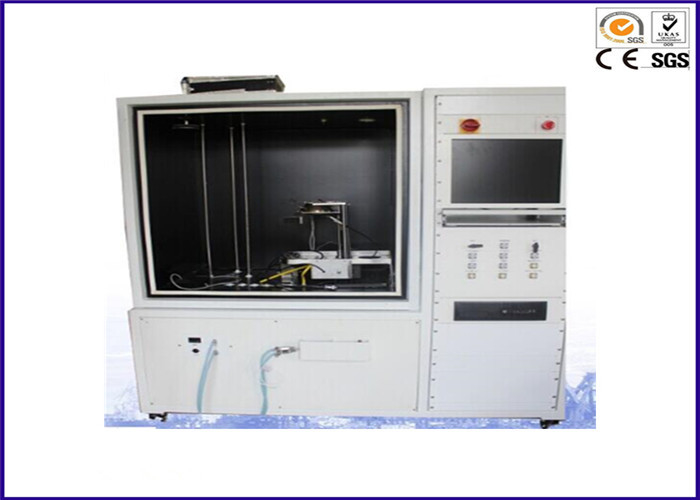

UL1581 FT-1 and FT-2 Wire and Cable Flame Test Chamber with Touch Screen

UL1581 FT-1 and FT-2 Wire and Cable Flame Test Chamber with Touch Screen

UL1581 FT-1 and FT-2 Wire and Cable Flame Test Chamber with Touch Screen
UL1581 FT-1 and FT-2 Wire and Cable Flame Test Chamber with Touch Screen
UL1581 FT-1 and FT-2 Wire and Cable Flame Test Chamber with Touch Screen
Product Details:
Brand Name: YUYANG
Certification: UL1581
Model Number: YY-UL1581
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Contact Now
Detailed Product Description
High Light:

ul1581 Flammability Testing Equipment

,

ul1581 flammability test chamber

,

1m U manometer flammability test chamber

UL1581 Wire and Cable Flame Test Chamber, UL1581 Flammability Testing Equipment



Flammability Testing Equipment Descriptions:

UL1581 Wire and Cable Flame Test Chamber is used to test the flame retardant performance of insulation layer under abnormal conditions such as overheat and overcurrent.This sect will be manufactured strictly according to UL1581 sect 1080.1~1080.14., which fully meets the VW-1 Flame Test standard and is applicable to FT-1 and FT-2 of UL1581.The equipment has beautiful appearance, reasonable internal structure, simple and fast operation, accurate test. It is widely used by wire and cable manufacturers, colleges ,universities and commodity inspection departments.

The equipment is composed of test part and control part and adopts integrated design, which is convenient for field installation and commissioning.The control system is highly automated and has the function of automatic ignition.Real-time display of temperature and time, convenient observation and recording, stable and reliable use.

The back of the chamber body is equipped with a strong exhaust air exhaust system. After the test is completed, it is opened at the same time with air supply system to discharge waste gas to outside in time. The front of the chamber body is equipped with sealed toughened glass window and operation window, which is convenient for the observation of test process and operation of experimenter.



Flammability Testing Equipment Main Technical Parameters:

1. The machine is composed of combustion chamber and control part.

2. Test chamber: the volume is greater than 4m.The area above the test flame is greater than 2.0m;The chamber consists of a frame inside and outside Coating thickness of 1.5mm electrostatic high-temperature paint steel plate, CNC machine tool processing and molding, external spray treatment, internal paint.There are two layers of paint, one for anti-rust paint, two for production of black matte paint, with anti-rust corrosion and other characteristics.

3. The back of chamber is provided with a ventilation and smoke exhaust system, and forced exhaust is used.The exhaust gas can be discharged to outdoor after the test is completed.

4. Operating equipment: There is an operating window below the observation window, with a length of about 600mm corrosion-resistant long arm gloves, square then seal operation.

5. Lighting equipment: Adopt an anti-fog and anti-smoke LED lamp

6. Spraying time: it can be set

7. Burn off time: it can be set

8.The number of flame: setting

9. The device has the functions of automatic ignition, automatic timing and counting, with high test accuracy

10. U manometer: 1M

11. Pressure gauge: 0-160kPa

12. Power supply: AC220V, 50HZ

13. Total power: 200W

14. External dimension of equipment: L1800mm*W1200mm*H2000mm (excluding dimensions of exhaust outlet and casters)



Spraying time: it can be set
Burn off time: it can be set
The number of flame: setting
U manometer: 1M
Pressure gauge: 0-160kPa
Power supply: AC220V, 50HZ



Flammability Testing Equipment Test instructions:

1.Sample preparation for FT1 combustion test:

One sample, about 455mm long, is taken from the finished wire and cable or flexible cord.

2. Operation method of FT1 combustion test:

2.1. Prepare samples and handle them according to the relevant provisions in the above "Sample Preparation".

2.2 Open the door of test chamber, clamp both ends of sample into the upper and lower fixtures respectively and fix them.Move the flame spread limit indicator and flame spread start indicator to the appropriate position.Access gas, access air.

2.3 Power on and turn on the power switch.Turn on "Light" on the touch screen and turn on lighting.Press the "Move fire NOZZLE" on touch screen. Tilt the nozzle 70° and place it (as shown below). Then install a flame nozzle (Long:40mm). Move the nozzle assembly appropriately and compare it to nozzle to determine the nozzle's test position.(Note: Once the position of blowtorch is determined, it does not need to be adjusted)

2.4 After the nozzle is adjusted, remove flame nozzle and press the "Move fire NOZZLE" on touch screen. Place the nozzle perpendicular to 90°.



UL1581 FT-1 and FT-2 Wire and Cable Flame Test Chamber with Touch Screen 0UL1581 FT-1 and FT-2 Wire and Cable Flame Test Chamber with Touch Screen 1UL1581 FT-1 and FT-2 Wire and Cable Flame Test Chamber with Touch Screen 2UL1581 FT-1 and FT-2 Wire and Cable Flame Test Chamber with Touch Screen 3
