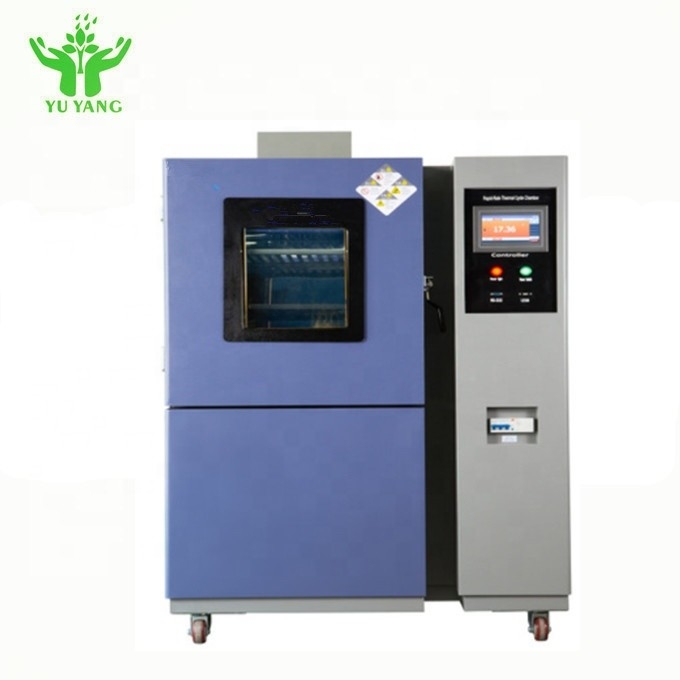

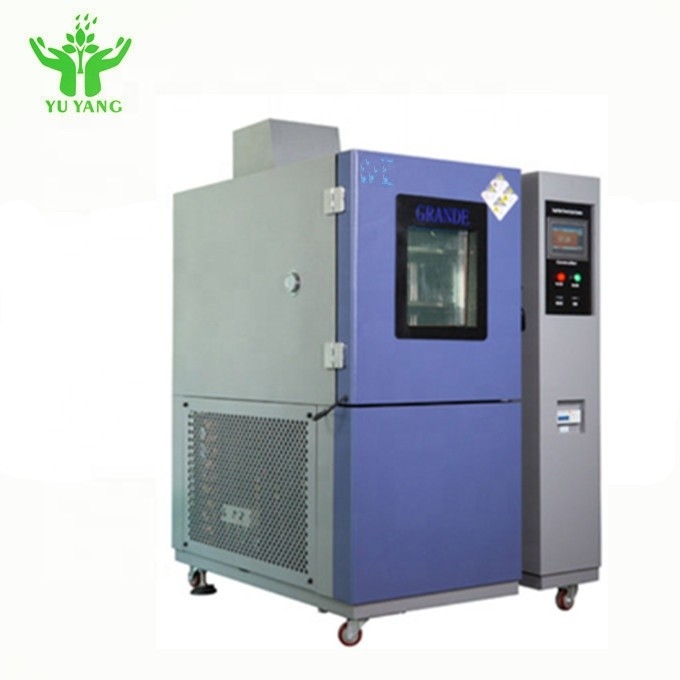

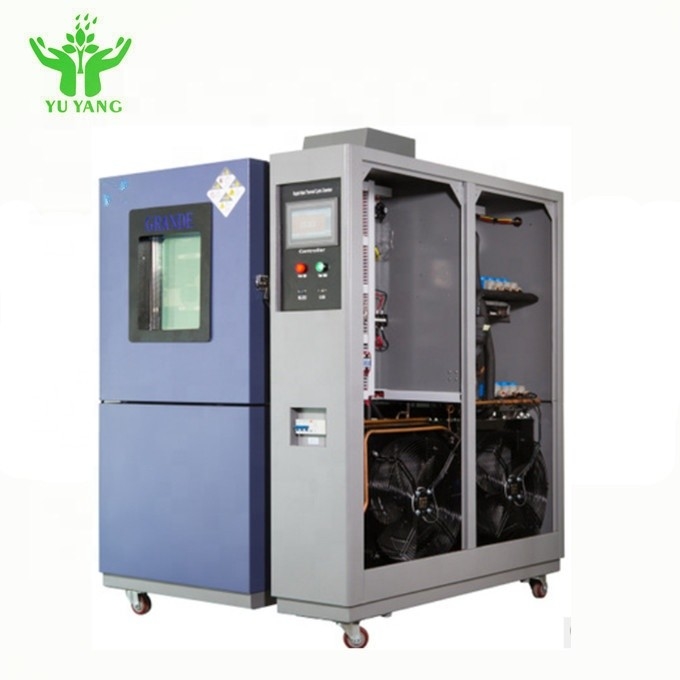

Ozone Aging Rubber Testing Machine Environmental Test Chamber
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: CE
Model Number: YYE013
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $1000-$4000
Packaging Details: Wooden Box
Delivery Time: 7-30 Days
Payment Terms: T/T
Contact Now
Detailed Product Description
Product Name: Ozone Aging Resistance Testing Machine Material: Stainless Steel
Temperature Range: 0~70℃ Humidity Range: ≥65R.H
Temperature Fluctuation: ±0.5 Ozone Concentration: 0~200PPm, 0~300PPm
High Light:

Sulfur Dioxide Environmental Test Chamber

,

2.5KW Environmental Test Chamber

,

95%RH temperature and humidity chamber

Ozone Aging Rubber Testing Machine Environmental Test Chamber 0

Application:

Ozone aging test chamber use for test aging cracking test in non-metallic materials and rubber products .

Structure:

Box using CNC machining with nice shape, easy to operated because of no side effect on door handle
Ozone aging inner tank made of imported high grade stainless steel, the gall bladder of outside box using A3 steel spray to
increasing the appearance of texture and cleanliness
The heating method is Fever asanas ,this style let it heating up fast and Evenly distributed.

Specification:
Type
YYE013-100
YYE013-225
YYE013-500
YYE013-1000
Working camber size D*W*H
450*450*500
500*600*750
700*800*900
1000*1000*1000
Performance indicators
Temperature range
0~70ºC
Humidity range
≥65R.H
Ozone concentration
0~200PPm, 0~300PPm
Temperature fluctuation
±0.5ºC
Operation control system
Test device
Dynamic and static (optional)
Sample holder rotation
360°rotation sample holder,(1cycle/min)
Gas flow rate
12~16mm/s
Temperature controller
Imported LED digital display P,I, D+S, S, R. Microcomputer integrated controller
Time controller
High-precision controller by hour,minute,second
Ozone concentration analysis
Imported concentration analysis regulator, 4~60mAoutput,RS232 communication port
Ozone generator
Silent discharge tube
Security
Leakage, short circuit, over-temperature, motor overheating, over-current protection
Ozone Aging Testing chamber is mainly suitable for polymer materials and products (rubber) of the resistance to ozone aging performance test. Ozone content in the atmosphere is very low,but it is the main factors of polymer materials aging. Ozone aging test chamber simulating and strengthen the ozone condition in the atmosphere, get approximate to actual use or reproduction of the test results in a short time. The studay of ozone effect regulation to rubber products, quickly identify and evaluate rubber materials resistance to ozone and antiozonant protection efficiency method,and then take effective aging proof measures to improve the service life of rubber products.

Standard:

GB/T7762-2003 ozone aging test vulcanized rubber or thermoplastic rubber resistance to ozone cracking static tensile test method.
GB/T2951.21-2008 ozone aging test cable insulation and sheathing materials test methods.
