| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | CE |
| Model Number: | YYF025 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | #2950 |
| Packaging Details: | Wooden Box |
| Delivery Time: | 7-30 Days |
| Payment Terms: | T/T |
| Flame Length: | 1/2" | Fuel Gas: | Butane |
|---|---|---|---|
| Mark Line Spacing: | 6" | Power Source: | AC 220V 50Hz 3A |
| Product Name: | SPI Flammability Tester | Application: | Plastic |
| High Light: | 16 CFR Flammability Testing Equipment,SPI Flammability Testing Equipment,6" fire testing equipment |
||

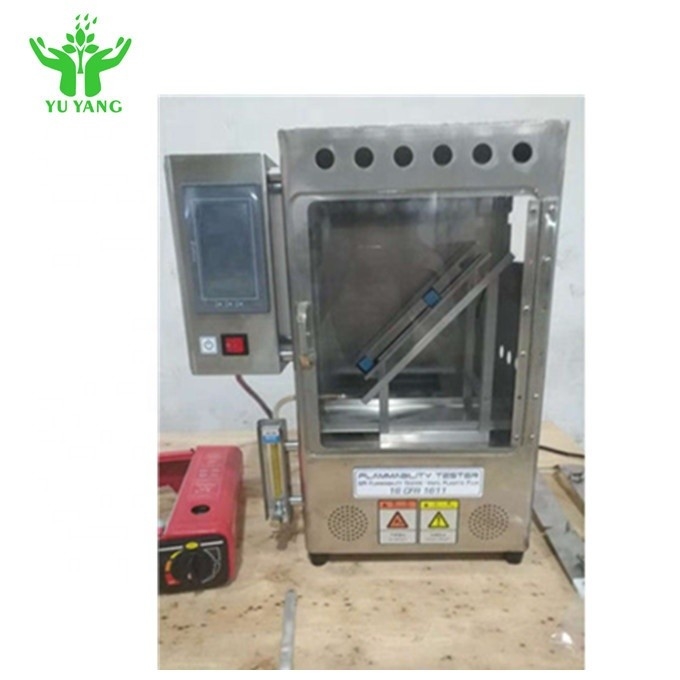

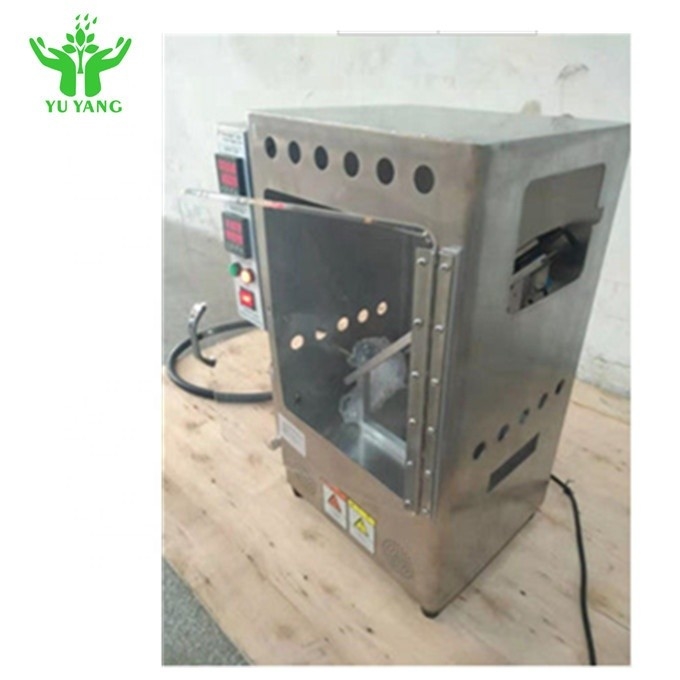

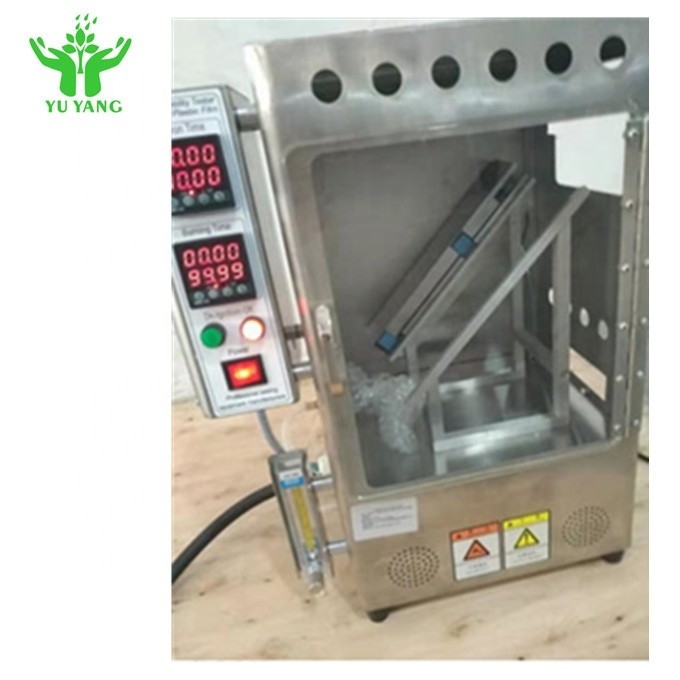

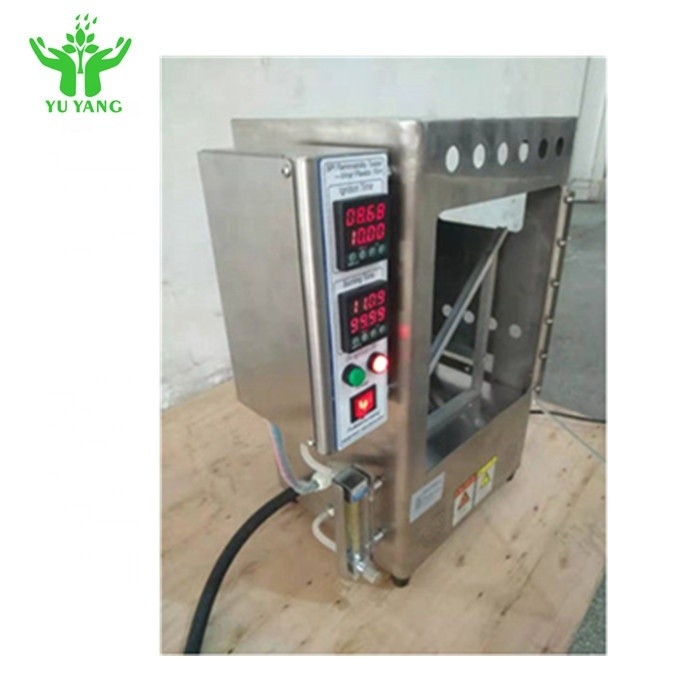

16 CFR Part 1611 Flammability Tester Vinyl Plastic Film Flammability Tester Machine
Application:
This instrument is suitable for testing the flame retardant property of polyethylene plastic film materials. The testing scope is mainly non-rigid and unsupported polyethylene plastic film materials, including transparent, translucent and opaque materials.Includes flat, convex, cast or surface-treated materials.
Principle:
Under prescribed conditions, sample with fixture clamping, the Angle of 45 ° inclined to put, specimen ignition, record of sample spacing on 45 degrees of bevel to 6 'burning time, burning rate to calculate sample.
Standard:
(CPSC)16 CFR Part 1611
Parameter
| Project | Specification |
|
Test chamber
|
30cmX25cmX37cm,There are five 20mm air holes on each side of left and right sides |
| Sample holder | 45° |
| Sample fixture | Length 11 ", width 4 15/16", slot width 1 1/2 ", 1 "end bending length, width of 3 7/8", bending Angle 45 ° |
| Mark line spacing | 6” |
| Distance of burner from sample surface | 9/16” |
| Flame length | 1/2” |
| fuel gas | Butane |
| Sample size | 3”x9” |
| Volume(WxDxH) | 46x29x52cm |
| Weight(about) | ≈20Kg |
| Power source | AC 220V 50Hz 3A |
Operation steps:
Matters to be confirmed before operation:
1.1 Confirm whether the power supply meets the requirements
1.2 Make sure there is enough gas in the tank
1.3 Confirm whether the pipeline is damaged or leaking
