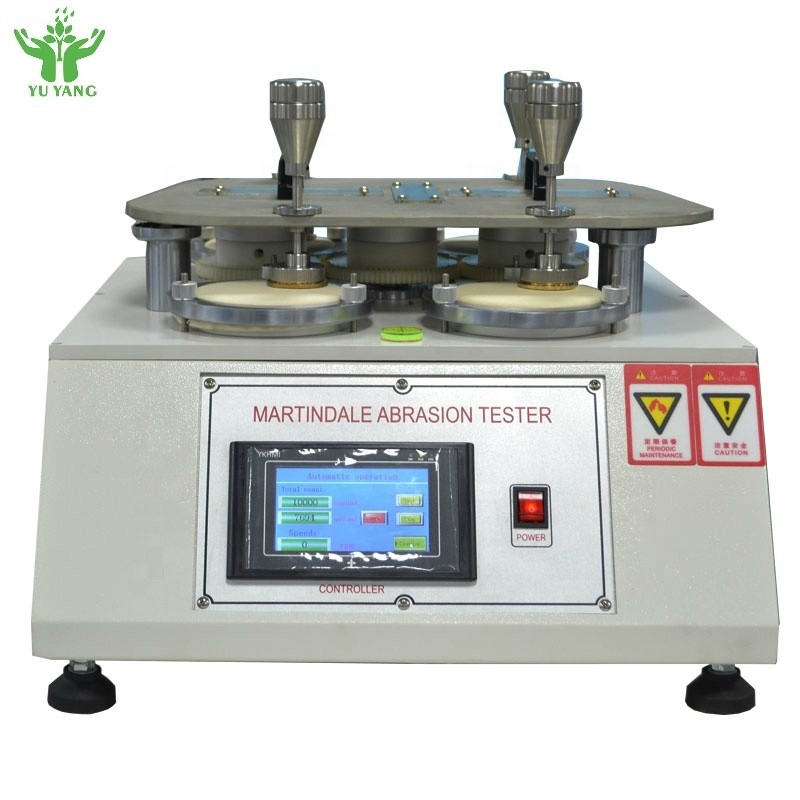

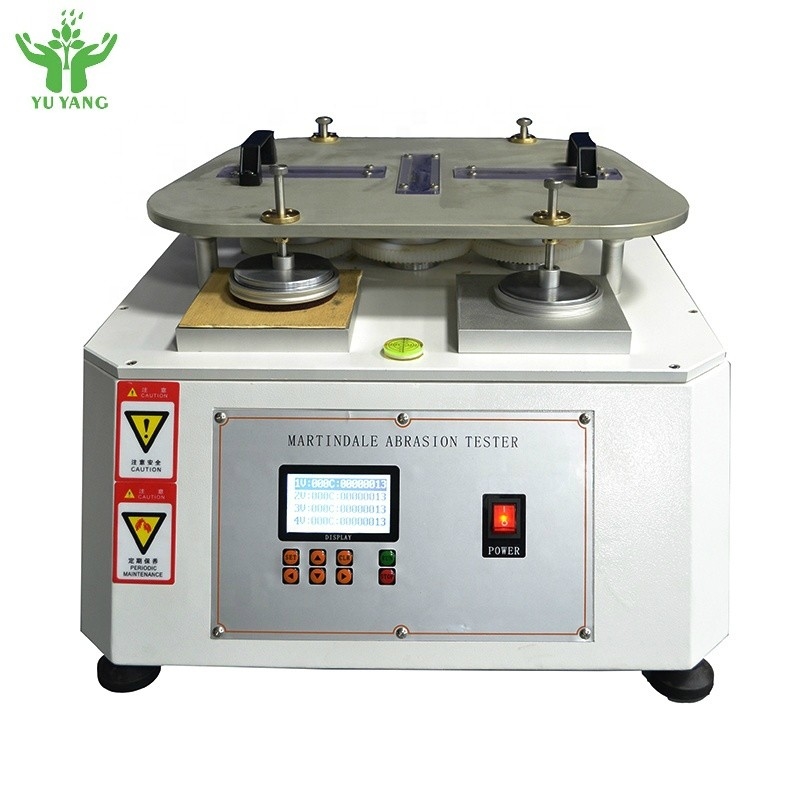

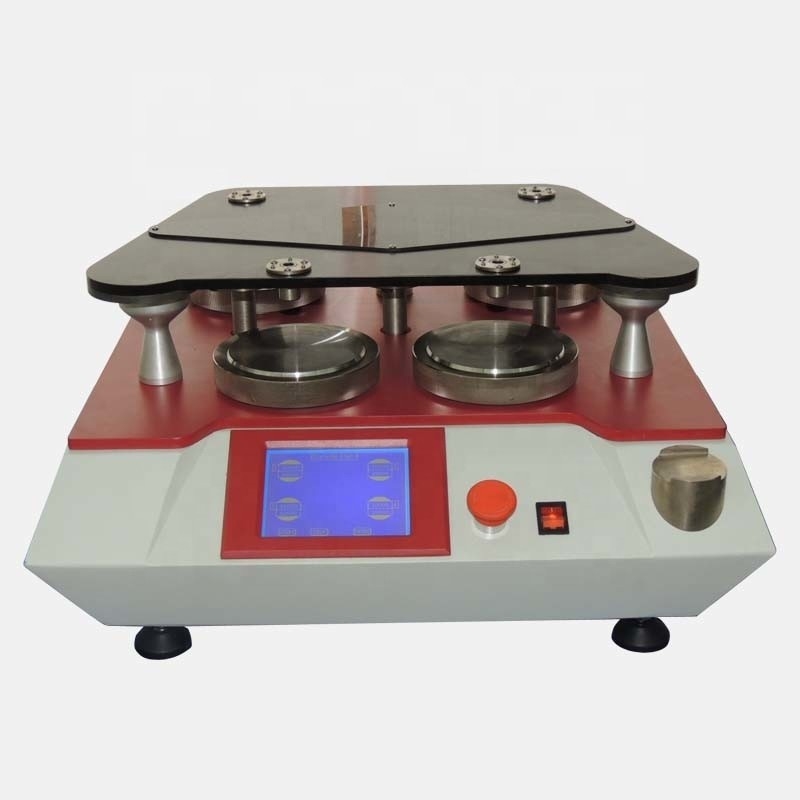

Martindale Abrasion Textile Testing Equipment ISO 12947-2 4 Stations

Name: Martindale Abrasion Textile Testing Equipment ISO 12947-2 4 Stations
Brand: YUYANG
SKU: YY001
Price: 1000 USD
Availability: InStock
Rating: 4.8 (111 reviews)

Product Details:

Place of Origin:	China
Brand Name:	YUYANG
Model Number:	YY001

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	$1000-$1500
Packaging Details:	Wooden Box
Delivery Time:	7-30 Days
Payment Terms:	T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Product Name:	Testing Machine	Usage:	Martindale Abrasion And Pilling Tester
Application:	Textile	Function:	Abrasion And Pilling
Maximum Dynamic Range:	24±0.5mm, 60.5±0.5mm	Gripper:	200 ± 1g
Working Station:	4/6/8	Dimension:	885mm600mm410mm(LWH)
High Light:	Martindale Abrasion Textile Testing Equipment , 4 Stations Textile Testing Equipment , ISO 12947-2 martindale abrasion tester

ISO 12947-2 Martindale Abrasion And Pilling Tester for Textile Resistance Testing Machine

Description:

To determine the abrasion and pilling resistance of all kinds of textile structures.Samples are rubbed against known abradents at low pressures and in continuously changing directions and the amount of abrasion or pilling is compared against standard parameters. .

The tester is equipped with electronic preset batch counter, timer and pooled sample clips and load device (compatible with international testing standards)

Parameters:

Testing Head: 8 (or 4 and 6 head could be selectable)

Display: LED

Accumulate count: 1~999999

Dimensions (L x W x H) 880×600×410mm

Power supply AC380V, 180W or AC220V, 180W

Pressurized material weight:

(a) wear resistance test: clamps component 200 ± 1g, cloth sample hammer 395 ± 2g , furniture decorations specimen hammer 594 ± 2g.

(b) pilling test: gripper assembly 155 ± 1g, heavy punch 260 ± 1g

Relative velocity 50 r / min

Effective friction diameter:

(a) wear resistance test: φ28.8mm (b) pilling performance test: φ90mm

Advantages:

Textile Martindale Abrasion Testing Machine learn the advantages of domestic and foreign similar equipment’s design,it with elegant appearance, and touch display screen, the interface easy to understand, easy to operate.

Computer system uses two counting methods, visual appearance, convenient setting, 4 or 6 or 8(optional) station testing at the same time to improve test efficiency.

Instrument also has two kinds of Li Sha Ru (Lissajous),saying 24mm × 24mm and 60.5mm × 60.5mm.

Variety of trajectory matching accessories, can adapt to a variety of test methods standard.

Standards:

BS 3424/5690,IWTO 40-88,BS EN 388/530,IWSTM 112/196,ASTM 4966/4970, IS 12673,JIS L1096, SFS 4328,PR EN ISO 12947-1,PR EN ISO

12945-2,SATRA TM31,ISO 20344

Accessories: ballot sheet 1pcs, bowl shape specimen kit 1pcs,O-rings( 4,6,8), Abrasion weights kit(4,6,8), Pilling weights

kit(4,6,8), power line 1pcs

Optional purchase consumables: wool fabric, felt, sponge, EMPA, scale, SM50 scales

Weight: Net weight: 102KG, Gross weight: 124KG

Plywood box size: 102*87*47cm
