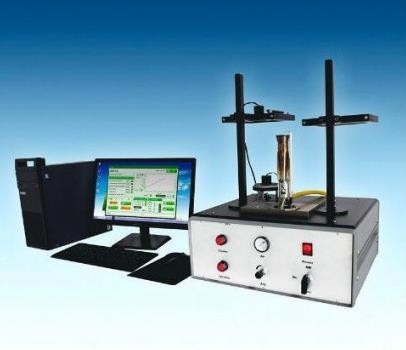

ISO 9151 Flammability Testing Equipment Protective Clothing Heat Transmission Index Tester

small.img.alt small.img.alt

Large Image :  ISO 9151 Flammability Testing Equipment Protective Clothing Heat Transmission Index Tester Get Best Price

Product Details:
Place of Origin: China
Brand Name: YUYANG
Model Number: YY160
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $4950
Packaging Details: Wooden Box
Delivery Time: 7-30 Days
Payment Terms: T/T, Western Union, MoneyGram
Detailed Product Description
Product Name: Protective Clothing Heat Transmission Index Tester Material: Stainless,copper
Timer Accuracy: 0.1s Sample Size: 140mmx 140mm
Thermocouple Accuracy: 0.1 ºC Test Table Size: 650mm X 350 Mm X 650mm
Power Supply: 220V 50 / 60Hz
High Light:

ISO 9151 Flammability Testing Equipment


Protective Clothing Flammability Testing Equipment


Flammability Heat Transmission Index Tester

ISO 9151 Protective Clothing Heat Transmission Index Tester



  A new term heat transfer index (HTI) has been introduced to avoid confusion with the thermal protective index (TPI) or other terms used in previous versions of this test. Heat transfer index is calculated from the mean time in seconds to achieve a temperature rise of 24±0.2℃when testing by this method using a copper disc and a starting temperature of 25±5℃. The heat transfer index provides a method of grading materials which does not imply that the material tested will give any precise protective time under actual use conditions.


ISO 9151——Protective clothing against heat and flame -- Determination of heat transmission on exposure to flame
BS EN 367——Protective clothing. Protection against heat and fire. Method for determining heat transmission on exposure to flame
1. The apparatus is designed and manufactured according to EN 367 and ISO9151 standards.
2. The apparatus consists of the burner, the cover sheet and the specimen holder with copper calorimeter.
3. The cover sheet and the specimen holder are controlled via pneumatic transmission which is automatically controlled by software.

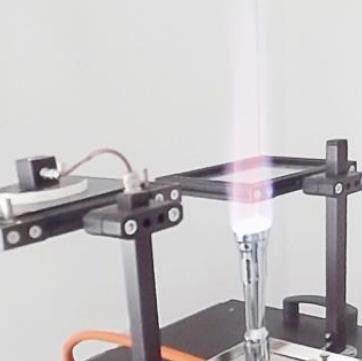

4. A horizontally oriented test specimen subjected to an incident heat flux of 80KW/m2 from the flame of a Meker burner beneath it.
5. The heat passing through the specimen is measured by means of a small copper calorimeter on top of and contact with the specimen.
6. The time to record a temperature rise of 12 or 24℃in the calorimeter is recorded in seconds.
7. The calorimeter-cooling device shorten the test time.
8. The mean result for the three test specimens is calculated as the HTI.
9. The calibration of heat flow density of 80 kW/m2 is performed automatically by software.
Technical Parameters:
1. The tester is consists of a control box and stainless steel test gantry;
2. The copper calorimeter is made from 99% copper; diameter 40mm, thickness 1.6mm, weight 18g; constantan thermocouple;
3. There is 1.6mm thick copper sample support frame; the size is 150mmx150mm, the middle hole of 50mm x 50mm;
4. Aluminum calorimeter; dimensions of 149mm x 149mm; thickness of 6mm; intermediate pore size 90mm; weight 264 ± 13g;
5. The specimen support frame is made of stainless steel; And the sample distance is 50mm from the burner mouth;
6. The tester is quipped the imported Meckel burner from USA; the burner orifice diameter is 38mm ±2mm;
7. Inlet flow control valve precisely adjust the flame to burn calories
8. Pressure gauge and pressure regulator is imported brands;
9. The metal plate is placed between the burner and heat the sample, can be freely moved away;
10. Timer accuracy is 0.1s;
11. The sample size 140mmx 140mm;
12. Equipped with a metal plate; The size is 140mm x 140mm;
13. PLC and touch screen intelligent control system;; the system automatically calculates the caloric value;
14. The system of automatic ignition, automatic timing;
15. The test data is automatically saved and retrieval system, the test report can be printed freely;
16. Thermocouple accuracy is 0.1 ºC;
17. The test table size: 650mm x 350 mm x 650mm
18. Power supply 220V 50 / 60Hz,
