| Place of Origin: | CHINA |
| Brand Name: | YUYANG |
| Certification: | CE |
| Model Number: | YYC005 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Box |
| Delivery Time: | 1-3 WORK DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 SETS A MONTH |
| Product Name: | Flammability Test Equipment | Stainless Steel Cabinet: | 370mm X Length 220mm X Height 510mm |
|---|---|---|---|
| Bottom Ventilation Hole Distance: | Transverse 63.5mm; Portrait 127mm | Bottom Ventilation Hole: | 10(number), Diameter 19mm |
| Ventilation Slot: | 360*13mm | Test Speed: | 0.1s |
| Thermometer: | MAX:150ºC | Power: | 220V/50Hz |
| High Light: | 220V Blanket Flammability Test Machine |
||

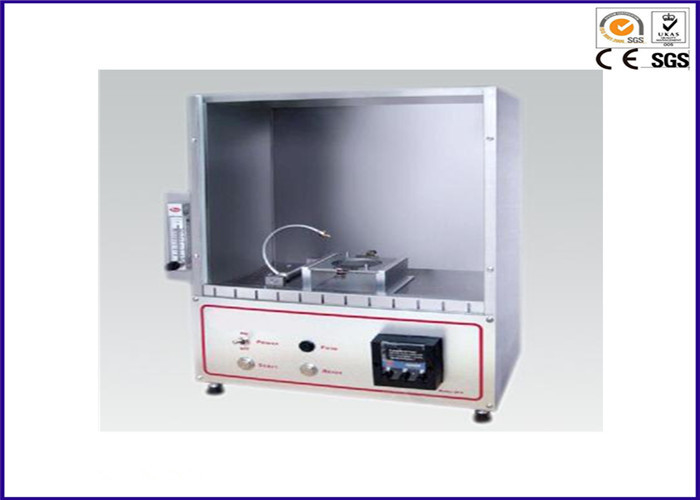

Blanket Flammability Test Machine Big Combustion Chamber Furniture Testing Machine
Descriptions:
Blanket Flammability Tester is designed and developed based on ASTM D4151; Suitable for bedding, including bed sheets, blankets, mattress mattress, pillow, duvet, and similar products that used to cover on the bed of the flame retardant performance; This test method is use the standardize flame to burn the sample surface within the prescribed time, observing the combustion, degree of damage or discoloration of standard sample, in order to evaluation the fabric grading of the test.
.
Features:
1, Stainless steel cabinet, width 370mm x length 220mm x height 510mm, with transparent viewing window;
2, 18-gauge needle flame, the flame length is adjustable;
3, The ignition timing can be set freely;
4, Automatic timing, timing accuracy 0.1s;
5, High-precision needle precise control of gas flow and the flame height;
6, Meter range: 0~ 60cc/min;
7, Equipped with a butane canister gas installations, you are outfitted with gas cans or gas tank;
8, To provide the bristles means and the sample holder;
9, To provide a standard stainless steel sample clip;
10, Power supply: 220V, 50Hz.
Specification
| Stainless steel cabinet | 370mm x length 220mm x height 510mm |
| Box material | SUB304 stainless steel |
| Ventilation slot | 360*13mm |
| Thermometer | MAX:150ºC |
| Mesa material: | POM |
| Power: | 220V/50Hz |
