| Place of Origin: | CHINA |
| Certification: | CE |
| Model Number: | YY-LBDR |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiate |
| Packaging Details: | Wooden Case Packing |
| Delivery Time: | 5-8 Work days |
| Payment Terms: | T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 Sets/Month |
| Brand Name: | Yu Yang | Product Name: | Conveyor Belt Hot Vulcanizing Machine |
|---|---|---|---|
| Core Components: | PLC, Motor | Warranty: | 1 Year |
| Power (kW): | 1.5KW - 75 KW | Test Report: | Provided |
| Voltage: | 220V/380V | OEM/ODM: | Acceptable |
| High Light: | Rubber Flat Vulcanizing Machine,380V PLC Lab Vacuum Dry Oven,75KW Digital Dry Oven |
||

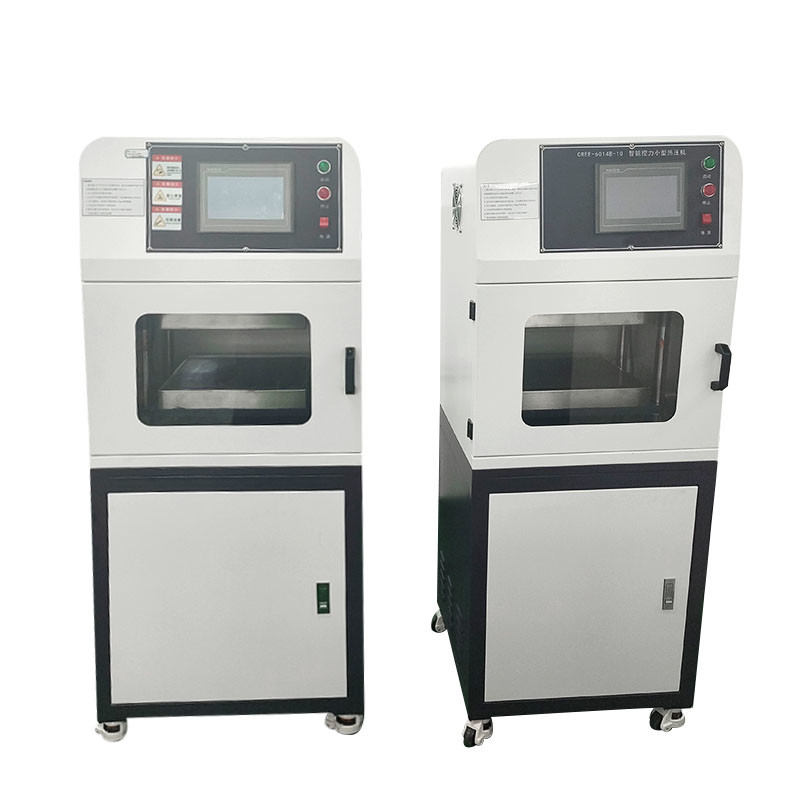

Lab Vacuum Drying Oven 10Ton Rubber Flat Vulcanizing Machine
Introduction
It mainly used in producing vulcanizing parallel adhesive type, such as conveyor belt,driving belt, and pressing rubber products, foamed plastic,thermosetting plastic(bakelite) and other plastic products. It also suitable for O ring,the key products such as cell phone, keyboard,remote-control,sealing washer such as pressure cooker, electric cooker, mechanical accessories for household, food, health and medical treatment. At the same time,this machine alsocan be used in complex silicone and rubber fittings production and process, such as nipple,medical supplies, health product, artware, toy seal, electroconductive rubber, automotive rubber parts, industrial rubber parts,medical silicone product, sport equipment, all kinds of vessels, multilayer product and so on.
The material is placed in the casting mold and clamped between the electric-heating flat plates to apply pressure and temperature,make the material shaping,testing and serving as the basis for the ingredient of mass production.
Specification
| Capacity | 10~50ton ( Option ) |
| Temp. Range | Room temp. ~300℃ |

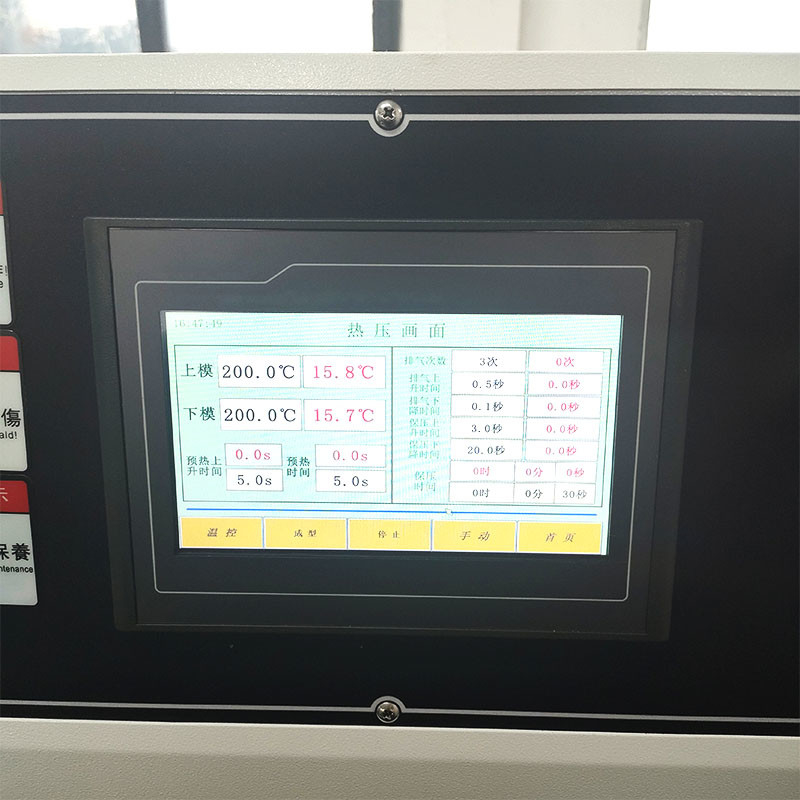

| Temp. Controller | LED Indicator,press key set input, the value indicate output |
| Timer | LED display,time range 0.1S~99min~9.9hr |
| Heating type | Electrical Heating module |
| Hot pressure plate | 300×300mm ( can be customized ) |
| Cold pressure plate | 300×300mm ( can be customized ) |
| Distance of pressure plate | 100mm |
| Pressure material | SKD chromium-molybdenum alloy |
| Pressure surface | Mirror chrome plated |
| Cooling temperature scope | Room temp. ~+5℃ |
| Cooling type | Tap water cooling/compressor cooling water(optional) |
| Oil cylinder stroke | Max 200mm |
| Oil cylinder speed | 11mm/s |
| Pressure gauge | 0~350kg/sq.cm |
| power | 10.6HP |
| Dimension W×D×H | 1000×500×1500 mm |
| Power supply | 3, AC380V,20A |
| Weight | About 658kg |
