| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ISO-3768 3769 3770, ASTM-B117 B268 |
| Model Number: | YY1001 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Case |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 15 sets per month |
| Product Name: | Environmental Test Chamber | Usage: | Salt Spray Test Machine |
|---|---|---|---|
| Test Room Size: | 600*450*400MM | Machine Size: | 1130*630*1070MM |
| Humidity: | Humidity | Temperature Range: | ± 0.5ºC |
| Salt Spray Subside: | 1.0~2.0ml/80cm2/h | Power Supply: | AC220V 50HZ |
| High Light: | thermal shock test chamber,salt spray test chamber |
||

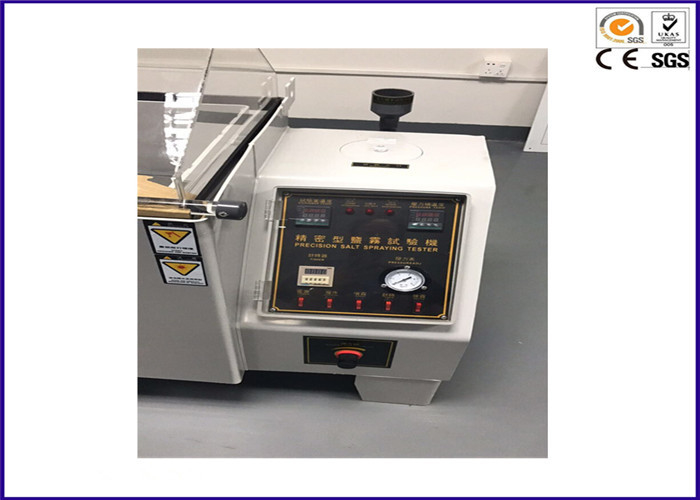

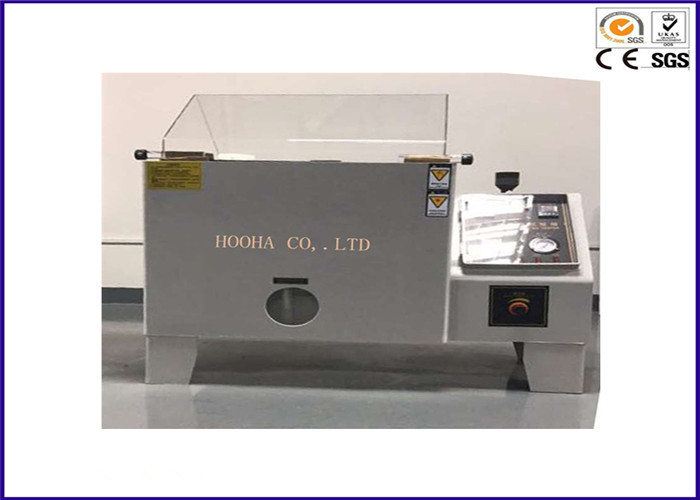

High Precision ASTM-B117 Environmental Salt Spray Test Chamber 108L
Detailed Descriptions:
Salt spray test chamber adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these
anti-corrosive treatment to test the corrosion resistance of their products.
Salt Spray Test Chamber Material:
1) Laboratory using PVC sheet, thickness 5 mm, the temperature reaches 80 degree Celsius;
2) Laboratory closure with high impact acrylic sheet, 6 mm thick;
3) Supplementary bottles of reagents attached to the water level perspective with hidden windows, clean easy, not easy to break;
4) Saturated air barrel using SUS #304 stainless steel barrel high pressure barrel insulation is best;
5) Laboratory basketball adopt flat indexing frame, adjustable angle, surrounded by mist side down exactly the same place the large number of test pieces.
Standards:
GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201, H8502, H8610 , K5400 Z2371
Specification:
| Model | HH801-108L |
| Test room size(WxLxH)(mm) | 600*450*400 |
| Machine size (WxLxH)(mm) | 1130*630*1070 |
| Lab temperature | NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C |
| Saturator temperature | NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C |
| Humidity | 85%~98%RH |
| Temperature range | ± 0.5ºC |
| Salt spray subside | 1.0~2.0ml/80cm2/h |
| Power supply | AC220V 50HZ |
