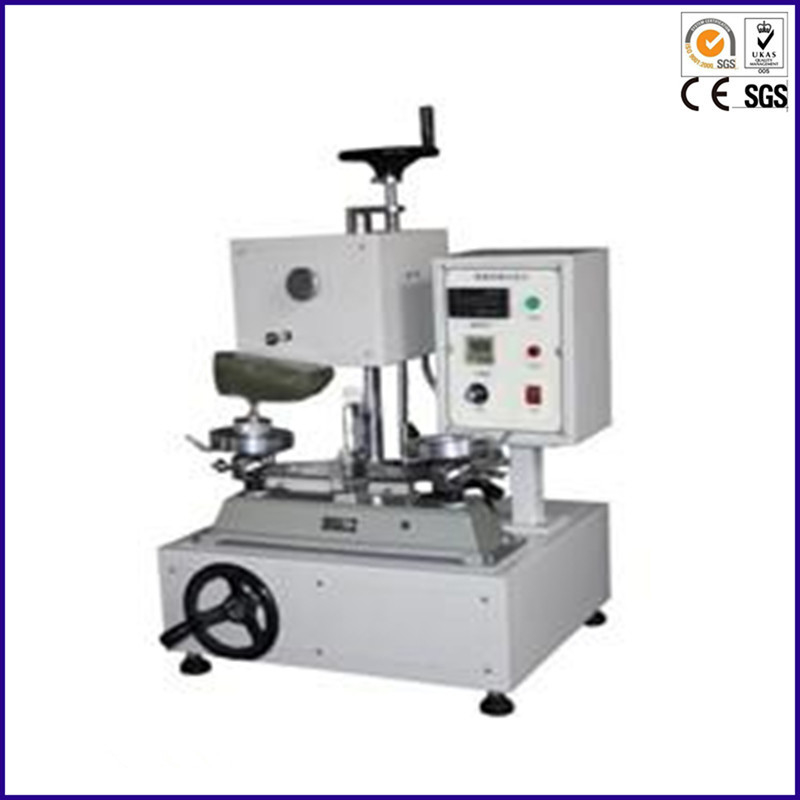

Wear Resistant Footwear Testing Equipment For Shoes / Sole Abrasion Resistance Tester

Wear Resistant Footwear Testing Equipment For Shoes / Sole Abrasion Resistance Tester
Wear Resistant Footwear Testing Equipment For Shoes / Sole Abrasion Resistance Tester Wear Resistant Footwear Testing Equipment For Shoes / Sole Abrasion Resistance Tester

Large Image :  Wear Resistant Footwear Testing Equipment For Shoes / Sole Abrasion Resistance Tester Get Best Price

Product Details:

Place of Origin: China
Brand Name: YUYANG
Certification: GB/T3903.2
Model Number: YY1501

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood Case
Delivery Time: 10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 sets per month
Detailed Product Description
Rotate Speed: 100-300 R/min (adjustable) Test Speed: 191±5 R/min
Test Standard: GB/T3903.2 Count Down Error: ± 10 Times
Volume: 500*600*800mm Weight: 65kg
Name: Abrasion Testing Machine Counter: LCD, 3digitals
High Light:

fatigue tester machine

,

flex tester machines

Professional Shoes and Sole Abrasion Footwear Testing Equipment With GB/T 3903.2





Description:



The shoe wear testing machine is used for wear resistance of shoe soles and molded bottom. The test method: first press the rotating wheel vertical on the sample with a certain load at a certain speed in a certain time to do the the wear test, then measure wear track length.





Specifications:



Model HH1401
Dimension of abrasive wheel (20±0.1)* (4±0.1)mm, aperture (6±0.02)mm, 72 tooth
Load between abrasive wheel and shoe sole 4.9N (0-19.6N optional )
Material of abrasive wheel T12 steel
Rotate speed 100-300 r/min (adjustable)
Test speed 191±5 r/min
Test period Successive 20min adjustable, self-clocking, accuracy 0.1min
Test standard GB/T3903.2
Counter LCD, 3digitals (1-999 )
Count down error ± 10 times
Balance range 2000g, accuracy 5g
Governor motor 3∮, 110W
Volume 500*600*800mm
Weight About 65kg
Power 1∮,AC220V,3A





Transaction information:



Minimum Order Quantity 1set
Price negotiation
Packaging Details Non-fumigation wooden box
Delivery Time 15 working days
Payment Terms FOB/CIF Shenzhen
Supply Ability 50 sets per month



GBT 3903.1.pdf

iso 13287.pdf
