55 * 80 * 170cm Footwear Testing Equipment for JAMES Slide Sole Heel Slip Resistance

China 55 * 80 * 170cm Footwear Testing Equipment for JAMES Slide Sole Heel Slip Resistance supplier
55 * 80 * 170cm Footwear Testing Equipment for JAMES Slide Sole Heel Slip Resistance supplier 55 * 80 * 170cm Footwear Testing Equipment for JAMES Slide Sole Heel Slip Resistance supplier

Large Image :  55 * 80 * 170cm Footwear Testing Equipment for JAMES Slide Sole Heel Slip Resistance

Product Details:

Place of Origin: China
Brand Name: HOOHA
Certification: ASTM - F489, ASTM - F1677
Model Number: HH1502

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: $2500-$3000
Packaging Details: PE +wood case
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 3pcs /week
Contact Now
Detailed Product Description
Volume: 55*80*170cm Weight: 72KG
Test Speed: 25.4mm/sec Weights: 25lb*3
Product Name: Footwear Testing Equipment Usage: JAMES Slide Sole Heel Slip Resistance





55*80*170cm Footwear Testing Equipment for JAMES Slide Sole Heel Slip Resistance



Description:

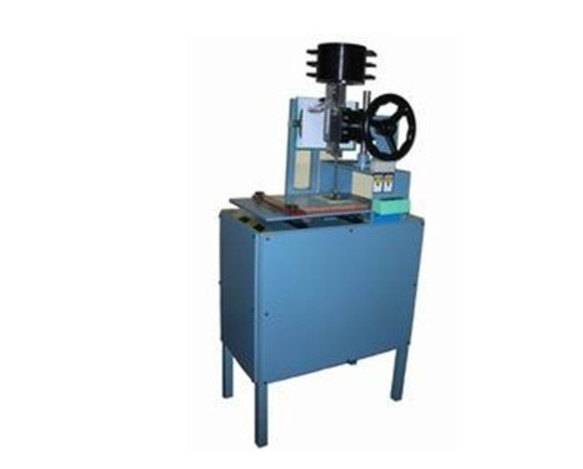

YY1502 James Shoes Anti skid test machine

This funcation tests the friction coefficient of the sole. detrmine the skid resistance of shoes ,when the sole glue micture and add anti skid material quantity  ,because of the diffrent species ,however,the fricion coefficient is different .it can be test comparating .


According to the standard: ASTM - F489





Specification:


1. Test rate: 25.4 mm / SEC
2. Test specimen area: 3 * 3 "(76.2 * 76.2 mm)
3. Load: 25 LB * 3
4. Holder  load: 5 LB
5. Friction surfaces: 12 * 12 inch
6. Size: 55 * 80 * 80 cm
7. Weight: 70 kg



YY1502-1 MARK II friction coefficient of the sole test  machine





Description:
The instrument to the principle of the loading horizontal componet and vertical component ratio .Test maximum  static friction with the groud .This tester is portable and can be arbitrary in dry,wet or all kinds of polluted groud . test sole and hell slip resistance of materials .


According to the standard: ASTM - F1677





Specification:


1. Load: 10LB
2. The slide bar diameter: 12 mm
3. The specimen area: 3 * 3 "(76.2 * 76.2 mm)
4. Land area: 4 "* 4" above
5.surfacing requirements :flat
6. holder thickness: 1.25 "(31.8 mm)
7. The thickness of the base plate: 3/4"
8 specimens from the ground: 1/8 "to 1/4"
9. Size: 40 * 22 * 39 cm
10. Weight : 15KG



55 * 80 * 170cm Footwear Testing Equipment for JAMES Slide Sole Heel Slip Resistance
