Professional Building Material Fire Tester Heat Of Combustion Testing Equipment

China Professional Building Material Fire Tester Heat Of Combustion Testing Equipment supplier
Professional Building Material Fire Tester Heat Of Combustion Testing Equipment supplier Professional Building Material Fire Tester Heat Of Combustion Testing Equipment supplier Professional Building Material Fire Tester Heat Of Combustion Testing Equipment supplier Professional Building Material Fire Tester Heat Of Combustion Testing Equipment supplier

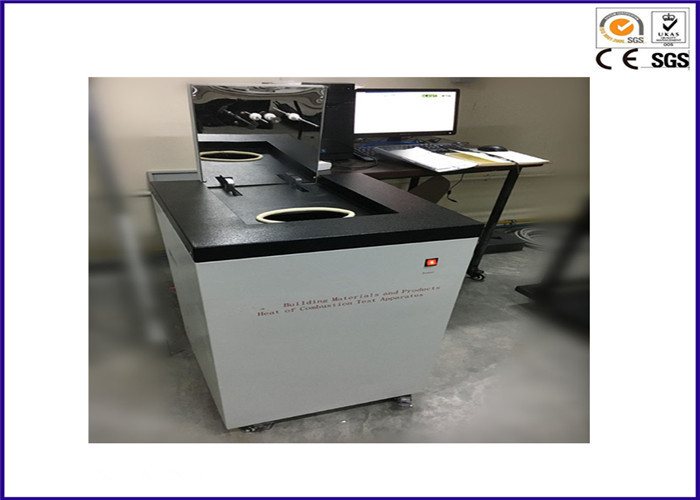

Large Image :  Professional Building Material Fire Tester Heat Of Combustion Testing Equipment

Product Details:

Place of Origin: China
Brand Name: YUYANG
Certification: GB/T 14402, EN ISO 1716
Model Number: YY502

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood box
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3 sets per month
Contact Now
Detailed Product Description
Power: AC220V, 50HZ Temperature Range: 0 ~ 50 ℃
Temperature Resolution: 0.0001 ℃ Stirrer Power: 3W
Product Name: Builing Material Fire Tester Stirrer Vessel Speed: 375r / Min
Usage: Heat Of Combustion Firing Wire Diameter: 0.1mm

Building Materials and Products Fire Tester Heat of Combustion Test Apparatus





Application:



Test the heat of combustion of building materials in the oxygen bomb calorimeter with constant heat capacity.





Standard:



EN ISO 1716: Reaction to fire tests for products- Determination of the gross heat of combustion(calorific value)

GB/T 14402: Combustion performance test for building materials and products-Determination of the heat of combustion





Specifications:



1. Gross heat of combustion: 0.01MJ / kg ~ 30MJ / kg;

2. Heat of combustion repeatability error:Dynamic ≤0.1%;

3. Temperature range: 0 ~ 50 ℃;

4. Temperature resolution: 0.0001 ℃, using PT100 sensor;

5. Oxygen calorimetric bomb volume:300ML,mass:3.2KG;

6. Calorimetric vessel volume: 2200ML;

7. Calorimetric bomb oxygen-supply pressure: 0 ~ 3.5Mpa without leakage;

8. Oxygen calorimetric bomb pressure resistance:≥21Mpa pressure;

9. Stirrer power: 3W;

10. Stirrer vessel speed: 375r / min;

11. Power:AC 185~245V;

12. Crucible(stainless steel):2;

13. Single-head oxygen bomb:1;

14. Firing wire:1 volume;

15. Containing crucible method and cigarette method;

16. Device for making the”cigarette”;

17. The system automatic records the data of temperature and time.It can be based on the input heat capacity, sample quality and additional heat and related data, automatically temperature correction and gross heat of combustion calculation, and the result is given.The computer of the test apparatus has the icon display function, display curve, Excel spreadsheets, print function, data input, command and control functions.In order to perfect the system, the computer system can be added to fault alarm, warning, alarm, etc.

18. Ignition circuit:voltage 12V,adjustable current 100mA,firing wire diameter 0.1mm;

19. Gross heat of combustion and net heat of combustion can read directly,without calculation;

20. Computer:1 set.



Professional Building Material Fire Tester Heat Of Combustion Testing Equipment



GBT 14402-2007.pdf
