Fabric Rotary Abrasion Tester , Taber Abrasion Machine For Textile Material

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Fabric Rotary Abrasion Tester , Taber Abrasion Machine For Textile Material Get Best Price

Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: ISO 5470, ASTM D3884, DIN53863.2, FED.CCC.5306/5309, DIN 53754 53799 53109, CNS-3309, 6483, 8540, JIS-A1453, K6902, K6911, K7204, L1096, ASTM-D1175, D1044, TAPPIT476ts-63, TAPPI-T476
Model Number: YY801
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $1666.66-4166.66
Packaging Details: plywood case
Payment Terms: Western Union, T/T, L/C,Paypal
Supply Ability: 3pcs /week
Detailed Product Description
Product Name: Textile Testing Equipment Usage: Taber Abrasion Test
Load: 5N~25N(Adjustable) Rotating Speed Of Tray: 75 Cpm
Friction Area Of Specimen: 50cm2 Dimension: 34×60×63cm
Weight: 50kg Power: AC220V 50Hz
High Light:

textile lab equipment

,

fabric stiffness tester

Taber Abrasion Testing Rotary Abrasion Grinding Wheel Textile Testing Equipment

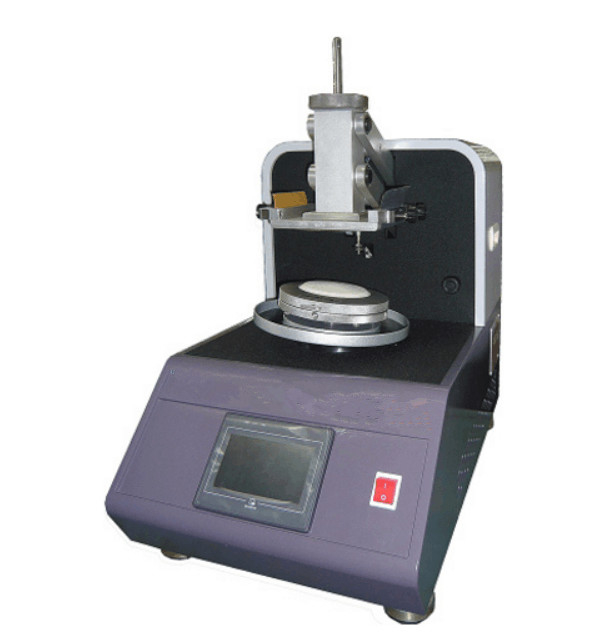

Rotary Abrasion Tester 1



This machine is designed for determining the resistance of textile products to abrasion. The specimen fixed to the cone rubs against the sand paper at a given load. This rub is conducted along the generatrix of the cone continuously and hence the friction effect is produced in the tangential direction.



Contact angle of tapered clamp

166°

Rotating speed of tray

75 cpm

Load

05N~25N(Adjustable)

Grain size of emery paper

280#,400#

Friction area of specimen

50cm2

Dimension(approx)

34cm×60cm×63cm

Weight(approx)

50kg

Power

1 AC220V50Hz(specified by user)



Instruments:

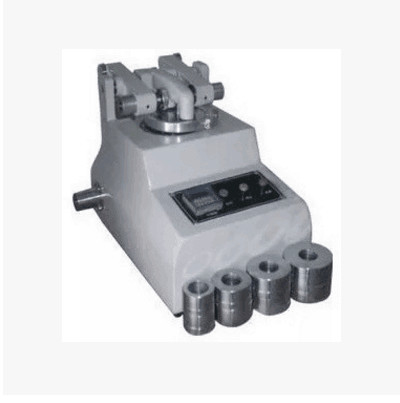

Can detect including metal, coating, plate surface, coating materials, textiles, leather, rubber and so on wear resistance.Through a pair of rotating friction wheel "X" type friction effect.
Equipped with a full range of auxiliary weights, the sample holder, friction wheel, vacuum unit, film type control keyboard and electronic counter.




Technical parameters:


1. The article number:



Molde

Simplex number

Weight

size

A

Simplex

20kg

330×320×310mm

B

duplex

25kg

330×420×310mm





2. Weight weight: heavy 250g weight: 250g /750g
3. The abrasion wheel center distance: 53.2 mm
4. The turning speed: 70 + 1 RPM (60 two kinds of speed regulation/RPM can switch)
5. The counter: LCD ,0-999999
6. Sample and dust collection tube distance: 3 mm
7. Power supply: AC220V 50 hz 5 a


According to the standard:
ISO 5470 ASTM D3884 DIN53863.2 FED. CCC. 5306/5309 DIN 53754 53799 53109
CNS - 3309, 3309, 6483, JIS - A1453 K6902, K6911, K7204, L1096, ASTM - D1175 D1044,
TAPPIT476ts - 63, TAPPI - T476




Standard configuration:


1pcs Wrench, 1pcs standard knife mould, 1pcs vacuum cleaners, stickers 50 piece,
Import standard grinding wheel for duable
Selection of the grinding wheel

Test block Coating Tiles Plywood Plastic

Grinding Wheel CS10, CS17 CS17 S32, S33 CS17, H18, H22





Standard configuration:


1pcs Wrench, 1pcs standard knife mould, 1pcs vacuum cleaners, stickers 50 piece,
Import standard grinding wheel for duable
Selection of the grinding wheel

Test block                  Coating                       Tiles                              Plywood                        Plastic

Grinding Wheel     CS10, CS17          CS17 S32,                          S33 CS17,                     H18, H22
