Place of Origin: | China |
Brand Name: | YUYANG |
Certification: | CE |
Model Number: | YY010 |
Minimum Order Quantity: | 1PCS |
---|---|
Price: | $250 |
Packaging Details: | Wooden Box |
Delivery Time: | 7-30 Days |
Payment Terms: | T/T, Western Union, MoneyGram |
Product Name: | Fabric Water Spraying Rating Tester | Inclination: | 45 Degree |
---|---|---|---|
Dropper Volume: | 50ml | Drop Volume: | Each Drop 0.1ml |
Length Of Water Passage: | 250mm | Weight: | 12.5kg |
High Light: | AATCC 22 Textile Testing Equipment,50ml Textile Testing Equipment,ISO 4920 fabric testing machine |

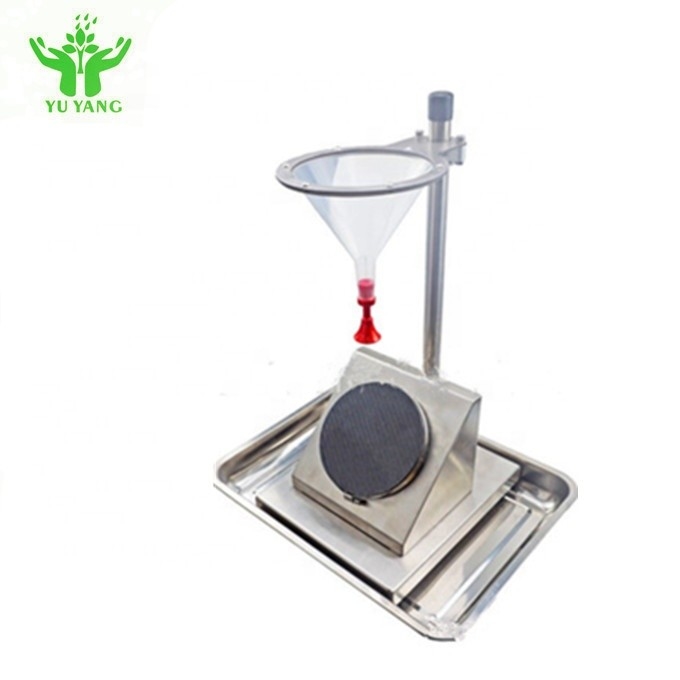

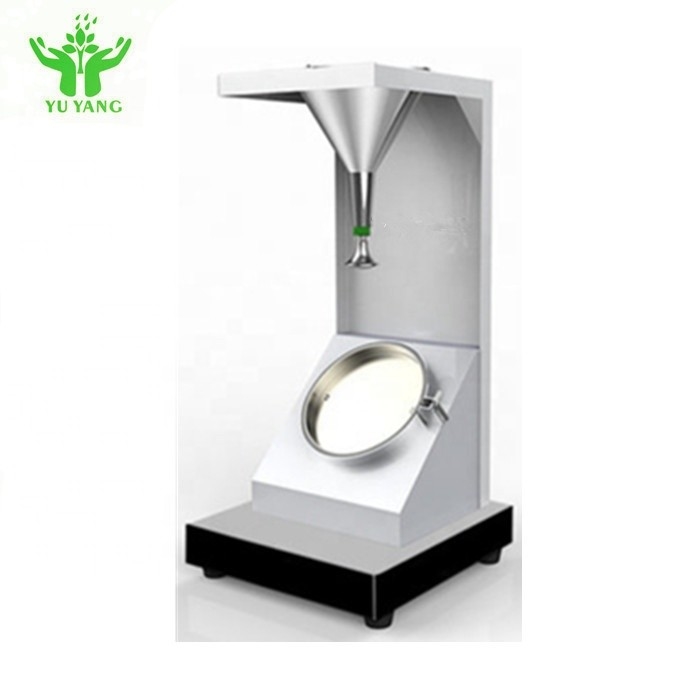

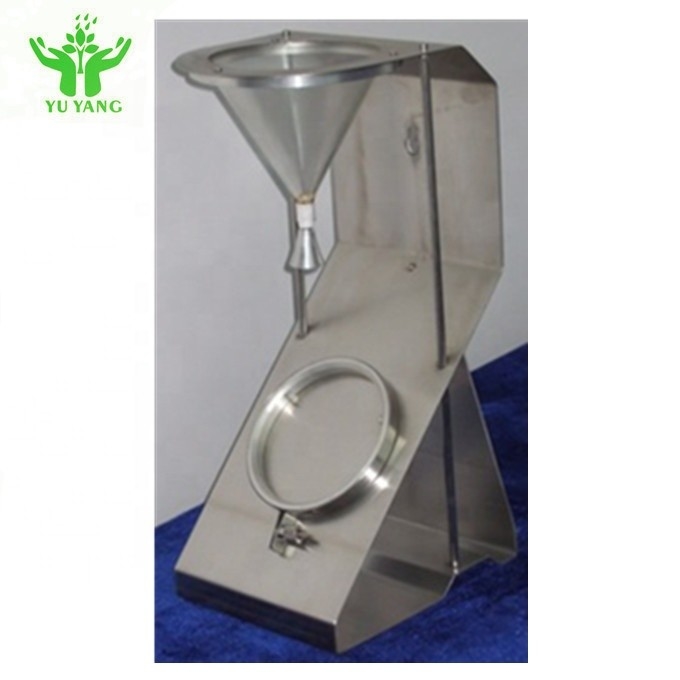

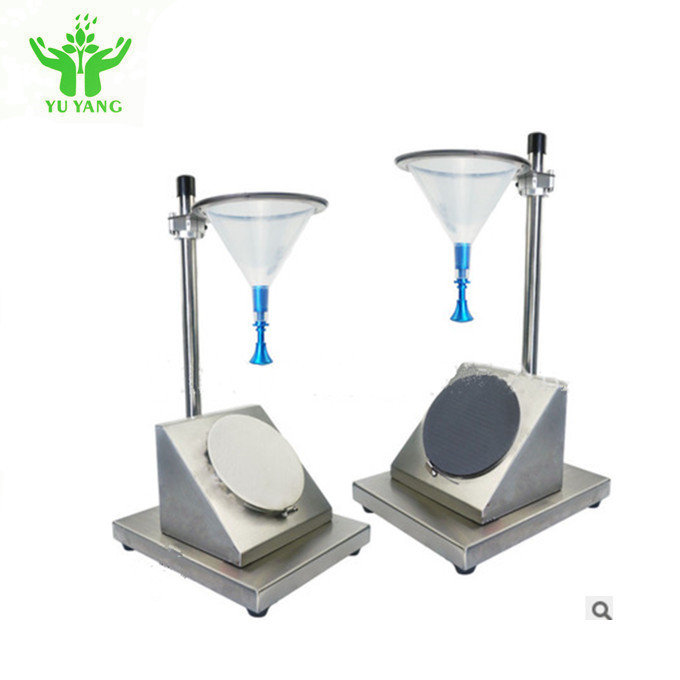

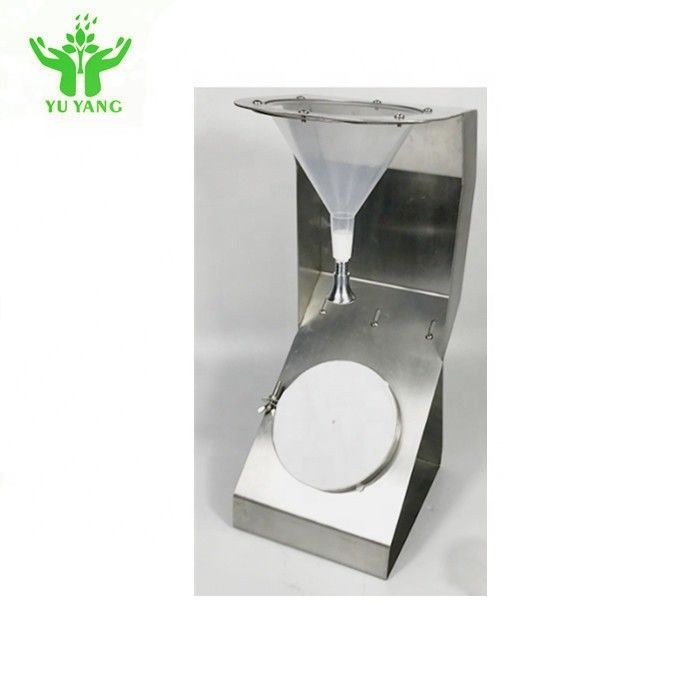

AATCC 22 & ISO 4920 Fabric Spray Rating Testing Machine
Spray Rating Tester.To determine the surface wetting resistance of fabrics. Comprising a metal framework allowing distilled water to be sprayed through a nozzle onto a test specimen at 45° and 150mm below the nozzle. The appearance of the specimen is compared against an optional photographic scale.
Specifications
Glass funnel: φ150 * 150mm (volume approximately 500 ml)
Sample press release angle: 45 °
Nozzle head to the sample center distance: 150mm
Water spray quantity: 250ML
Dimensions: 260 x 230 x 550mm
Weight: 6kg
Standard: ISO 4920 BS EN 24920 BS 3702 AATCC 22 M&S P23 NEXT 23
Accessories: water container 1pcs, AATCC(22) Standard scales
