Place of Origin: | China |
Brand Name: | YUYANG |
Certification: | CE |
Model Number: | YY020 |
Minimum Order Quantity: | 1PCS |
---|---|
Price: | $3550 |
Packaging Details: | Wooden Box |
Delivery Time: | 7-30 Days |
Payment Terms: | T/T, Western Union, MoneyGram |
Product Name: | Protective Clothing Fabric Air Permeability Tester | Application: | Textile Fabric Garment |
---|---|---|---|
Function: | Air Permeability Test | Air Permeability: | 0.2~13000mm/s |
Fabric Thickness: | ≤12mm | Dimension: | 520*850*1050mm |
Power Supply: | 220V 50Hz | Standard: | ISO 9237, ISO 7231, ISO 5636 |
Weight: | 60kg | ||
High Light: | ISO 9237 air permeability testing machine,ASTM D737 air permeability testing machine,BS 5636 air permeability testing machine |

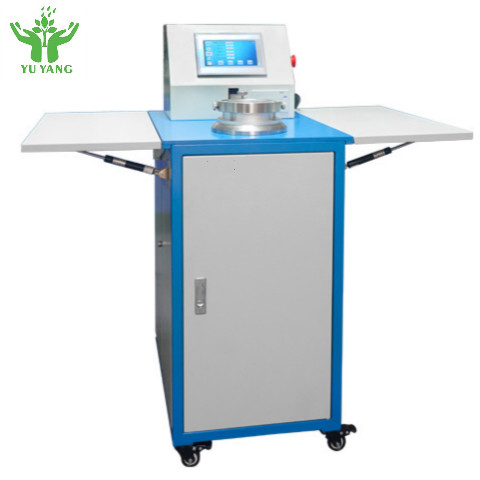

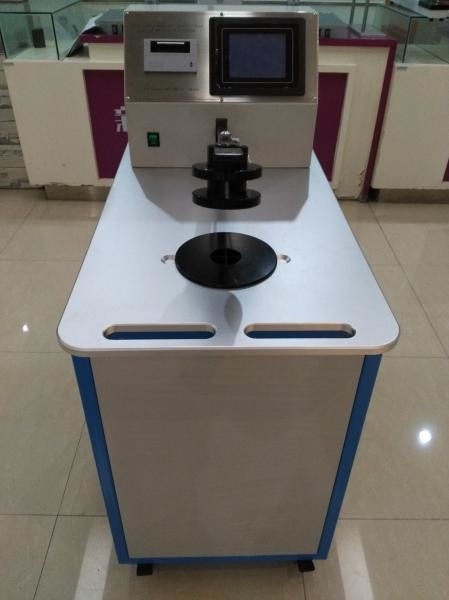

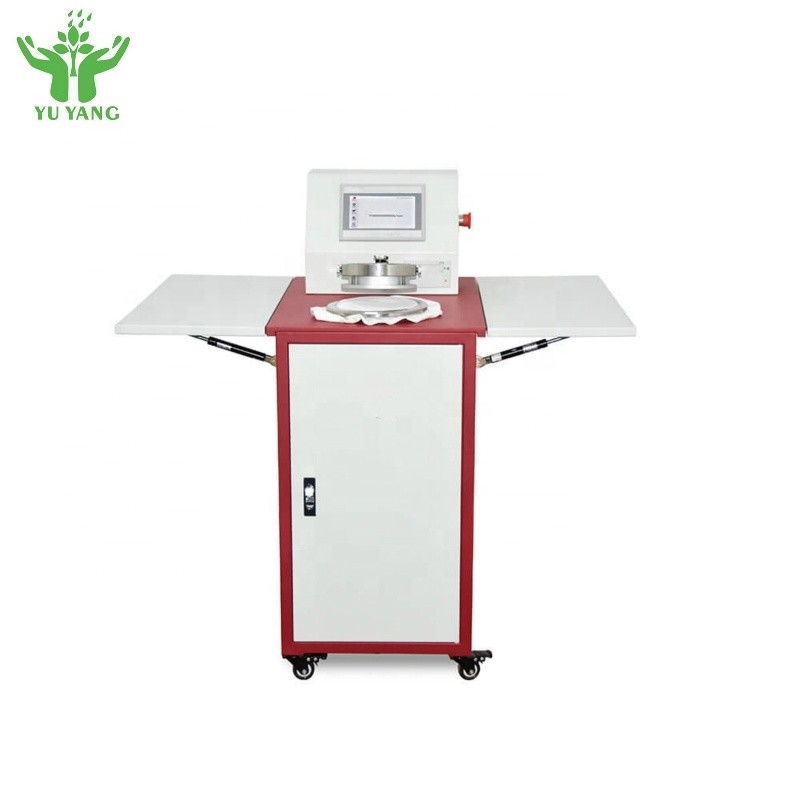

ISO 9237/ASTM D737/BS 5636 Textile Fabric Air Permeability Testing Machine
Application:
Air permeability is an important factor in the performance of such textile materials as gas filters, fabrics for air bags,
clothing, mosquito netting, parachutes, sails, tentage, and vacuum cleaners. In filtration, for example, efficiency is directly
related to air permeability. Air permeability also can be used to provide an indication of the breathability of weather-resistant and rainproof fabrics, or of coated fabrics in general, and to detect changes during the manufacturing process. In specialty, industrial and military applications, it can play a vital role in protection. In every market, satisfying the demands of consumers and producers requires ways to accurately and repeatably test material air flow.
Usage:

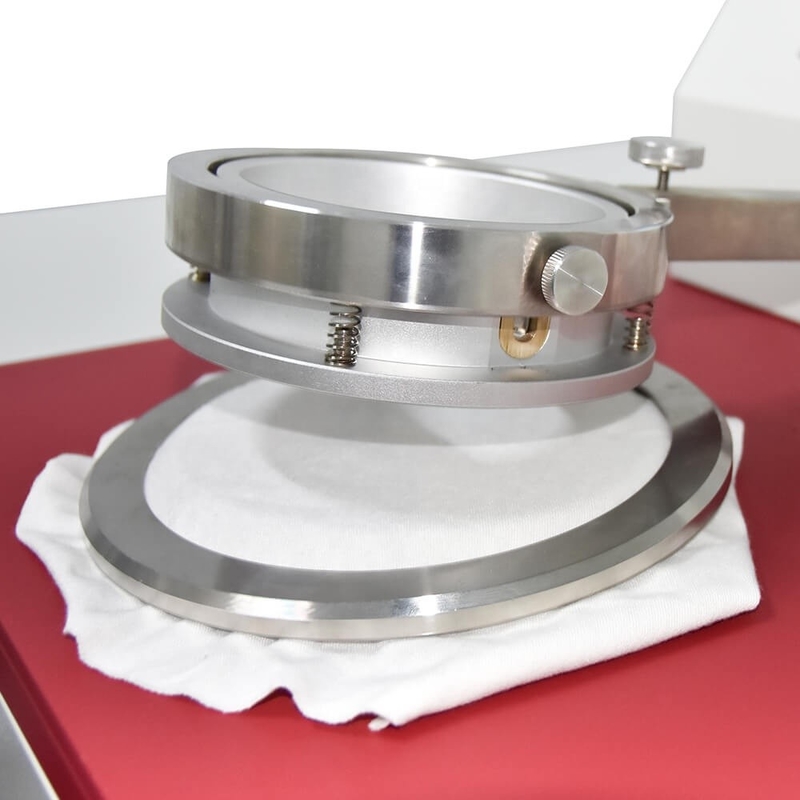

To determine the resistance of fabrics (woven, knitted and nonwoven textile materials) to the passage of air (air flow) under constant pre-set air pressure while firmly clamped in the test rig of selected test head/area.
Standard:
GB/T 5453 Textile fabrics - Determination of permeability
ASTM D737, BS 5636, DIN 53887, AFNOR G07-111, EDANA 140.1, ISO 7231, ISO 9237, ISO 9073, JIS L1096-A, TAPPI T251, WSP 070.1.R3, EDANA 140.2
Specification:
Characteristics:
1. It adopts imported high-precision pressure and differential pressure sensor to ensure accurate data.
2. Micro-computer processing, test results are displayed directly, no need to manually check the table calculation.
3. Built-in 7 test units mm / s, m3 / m2.min, cm3 / cm2.s, m3 / m2.h, cfm, L / dm2.min, L / m2.s, the test unit can be switched freely according to the needs.
4. Color touch screen control, Chinese and English double-select menu operation, online operation.
5. With the computer online operation, you can draw real-time test data curve for easy observation.
