| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | CE |
| Model Number: | YYL004 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | nigotiable |
| Packaging Details: | wooden box |
| Delivery Time: | 5-30 days accrording the quantity |
| Payment Terms: | T/T |
| Supply Ability: | 300PCS Per Month |
| Product Name: | Tensile Testing Machine | Force Unit: | N,KN,Kgf,Lbf |
|---|---|---|---|
| Capacity: | 1000KG (optional) | Load AccuracyLoad Accuracy:: | ±0.5 % |
| Display Resolution: | 0.01n | Stroke Resolution:: | 0.001mm |
| Effective Stroke: | 850mm | Accuracy Level: | ±0.5 % |
| High Light: | 10KN Tensile Testing Machine,1000KG Tensile Testing Machine,Windows Tensile Testing Machine |
||

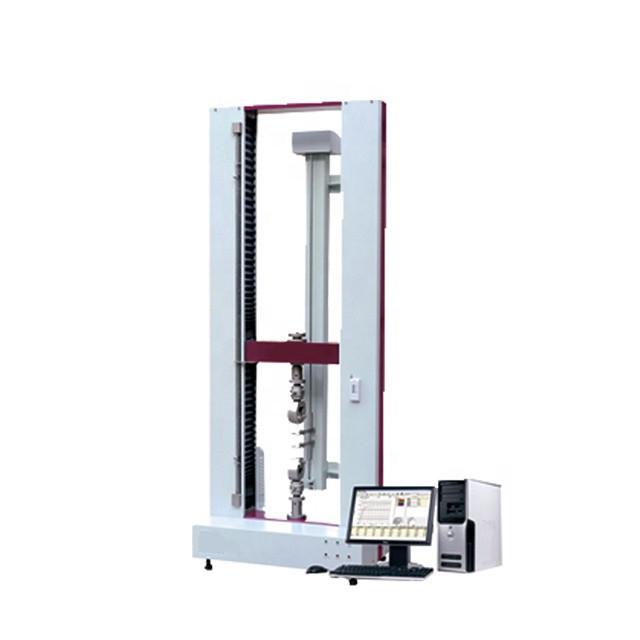

Universal Double Column Touch Screen Tensile Testing Machine 10KN
1000KG Universal Tensile Testing Machine 10KN Anti Interfere
Description:
The machine adopts computer control, which are widely used in rubber, plastics, plywood,wire and cable, textiles, waterproof material, non-woven fabrics and other non-metallic materials and metal wire, metal foil, sheet metal and metal mechanical properties test, with special fixture is also suitable for all kinds of finished products tensile, compression, peel, cut, tear, bend test (passbook).It can print multiple data, and make graphic output comparison according to different data, with high control accuracy and easy operation.Adopt modular design, all kinds of accessories are complete, the collocation is flexible.
Application:
This machine is mainly used to test the mechanical properties of metal such as stretching, compression and bending, etc., and it can also realize the constant stress, constant strain, creep, relaxation, axial and radial, etc.According to GB, JIS, ASTM, DIN and other standards, parameters such as tensile strength, yield strength, elongation, constant elongation stress, constant stress elongation and elastic modulus can be calculated automatically.
Characteristic:
1. The base is supplemented by the aluminum alloy profile column with advanced spray treatment;
2. Adopt high precision, no clearance ball screw and timely gauge belt to ensure the accuracy of the transmission system;
3. Fully computerized data acquisition and motion control;
4. The test software under Windows XP operating system, users can use the existing functions of the software to complete the mechanics test project, and can also edit the test method according to their own actual needs;
5. Better than 0.5 level of force measurement accuracy, 1/300000 force value resolution.
Safety device:
1. Limit protection: with program control and mechanical bipolar protection, to ensure the normal operation of the instrument in the set stroke;
2. Overload protection: when the load reaches 110% of the force sensor, the instrument will stop automatically;
3. Automatic diagnosis: check the measuring system and driving system regularly for over voltage, over current and over temperature, and stop immediately when abnormal conditions occur.
Parameter:
| Capacity | 1000KG (optional) |
| Accuracy level | 0.5 |
| Load accuracy | ±0.5 % |
| Stroke resolution | 0.001mm |
| Display resolution | 0.01n |
| Power resolution | 1/300000 |
| Effective stroke | 850 mm |
| Test width | ø 400 mm |
| Test speed | 0 ~ 500 mm/min |
| Force unit | Kgf, GF, N, kN, LBF |
| Stress unit | MPa, kPa, KGF /cm2, LBF/IN2 |
| Control mode | Touch screen |
| Display mode | Computer display |
