| Place of Origin: | CHINA |
| Brand Name: | YUYANG |
| Certification: | CE |
| Model Number: | YYE021 |
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Box |
| Delivery Time: | 7-30 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5 Pcs Per Month |
| Product Name: | Environmental Test Chamber | Model: | YY1014-80L/ YY1014-150L /YY1014-225L /YY1014-408L /YY1014-800L /YY1014-1000L |
|---|---|---|---|
| Inner Size W×H×D(cm): | 40×50×40, 50×60×50, 60×85×80, 60×85×80 100×100×80 100×100×100 | Outside Size: | 92×140×90, 105×150×110, 105×165×120, 115×175×140, 160×190×160, 160x190x180 |
| Volume (L): | 80L, 150L, 225L, 408L, 800L, 1000L | Heater: | Nickel Chrome Heating Wire Heater |
| High Light: | 1000L Temperature Test Chamber,80L Temperature Test Chamber,Programmable Environmental Test Chamber |
||

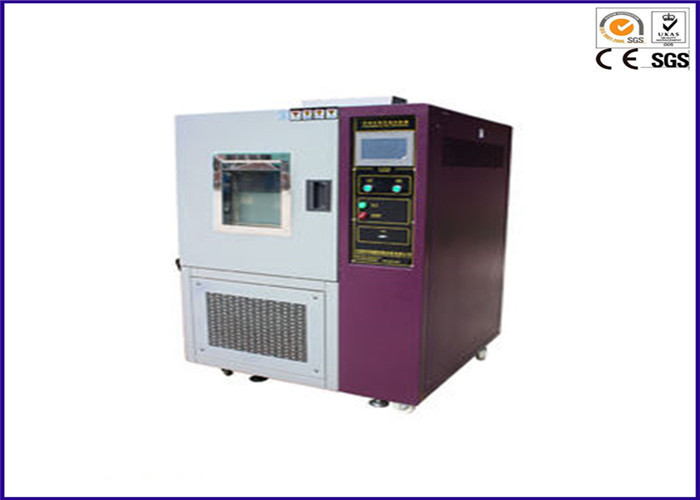

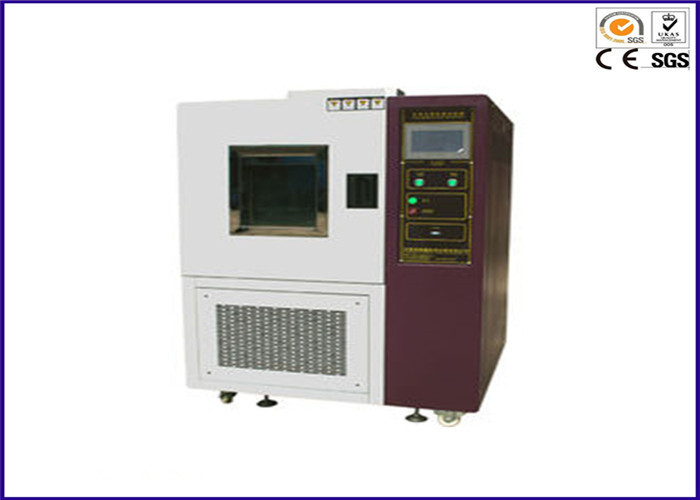

Programmable High Low Temperature Change Chamber Environmental Test Chamber
CE Programmable High Low Temperature Test Chamber Dry Proof Anti Sweat
Environment test chamber of Programmable Constant Temperature & Humidity Test Chamber can simulate different environment condition. It is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operation time.
Features:
1. High-texture appearance, the surface handled through the matte stripes, and use of planar non-reactive handles, easy to operate, safe and reliable.
2. Rectangular complex glass window can be viewed the testing sample, windows with anti-sweat heater device that prevents water vapor condensation, and high-brightness PL light.
3. Double-insulated airtight container, which can effectively isolate the internal temperature of leakage.
4. With an external water supply system can be easy to supply water and automatically reuse.
5. Compressor circulatory system from French and use environmentally refrigerants ( R404).
6. PLC controller, touch screen import and display the measure values and curve
7. Controller with multi-segment program edited, temperature and humidity can be controlled quickly (OUICK) or slope (SLOP).
8. Built-in mobile pulley easy to move and has a strong positioning screw fixed position
Specifications:
| Temp and Hum Range | A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C RH20%-98% |
| Fluctuation | ±0.5°C ±2.5%RH |
| Deviation | ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH) |
| Controller analytical accuracy | ±0.3°C ±2.5%RH |
| Material | Stainless Steel |
| Humidifier | Semi-closed steam and wet |
| Heater | Nickel chrome heating wire heater |
Our Company:
DONGGUAN YUYANG INSTRUMENT CO.,LTD is Located in Wanjiang District (Dongguan City, Guangdong Province,China),a famous historical town with prosperous industry and convenient transportation.
We are a high-tech enterprise which is specialized in developing and manufacturing Fire Testing Equipment, Building Material Fire Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and etc.
Decades of research and development strengthen the leading edge of YUYANG in this field, and established as an crucial role in R&D on high quality and high-cost performance of testing equipment. YUYANG's testing equipment are widely used in various field: scientific institutions, colleges, inspection institutions, auto parts, electronics, electricals, lithium battery, LED, photoelectricity, mobile, plastic and rubber, display, telecommunication, chemical industry, aerospace, building material and product, wire and cable, toys, furniture, textile and fabrix, etc. All YUYANG testing equipment are designed according to international test standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA,CEN and so on.
DONGGUAN YUYANG INSTRUMENT CO.,LTD looks forward to cooperating with customer all over the world.
If you are interested in any of our products or would like to discuss a custom order. Please feel free to contact us. We are looking forward to forming succesful business with new clients around the world in the near future.
Contact Person: Seline Yu
Tel: +86-13825728643
