| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | QB/T 2918-2007 |
| Model Number: | YY1311 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | plywood case |
| Payment Terms: | Western Union, T/T, L/C,Paypal |
| Supply Ability: | 3 pcs /week |
| Application: | Tensile, Compression | Max Test Force: | 100KN |
|---|---|---|---|
| Accuracy Of Force: | ±1% Of Indicated Value (±0.5% As Special Order) | Speed Range: | 0.01-300mm/min |
| Compression Testing Machine: | 600mm | Customized Support: | OEM, ODM, OBM |
| Driver Type: | Motor Load | Test Range: | 1%-100%FS |
| Displacement Resolution: | 0.01mm | Safety: | Electronic-limit Protection |
| High Light: | 100KN Tensile Strength Testing Machine,Rubber Tensile Strength Testing Machine,OBM Tensile Strength Tester |
||

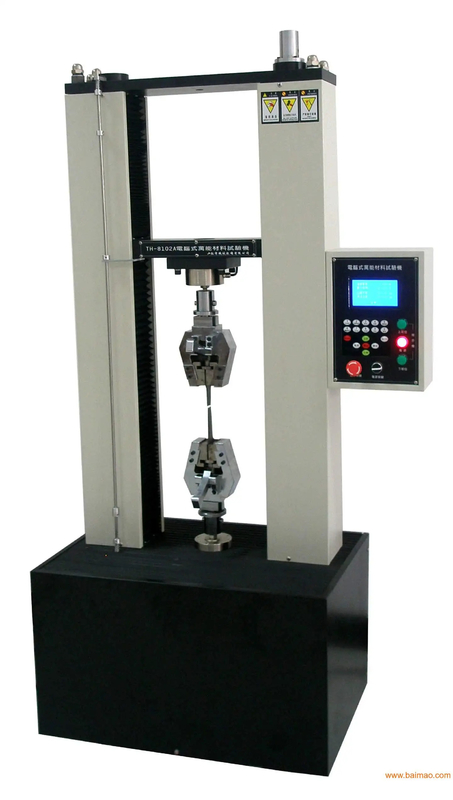

Tensile Strength Testing Machine 5KN For Rubber/Plastic
Description:
YUYANG series`tensile strength testers are widely applied to determining elongation,
compression, flexing,tear,peeling,shear force,adhesive force,etc.of finished or semifinished
products such as rubber,plastic, footwear, leathers, metal,wire, paqer, timber,etc.
Specification:
|
Model |
YY1311 |
|
Capacity (optional) |
100, 200, 500 N; 1, 2, 5 kN,50kn,100kn,300kn,500kn |
|
Unit (Switchable) |
kgf, gf, Ton, lbf, N, kN or by user`s definition |
|
Load Resolution |
1/50,000 (U25) |
|
Load Accuracy |
±0.5% |
|
Stroke (exclude the grips) |
1000 mm |
|
Method of Speed Input |
knob |
|
Test Speed |
5~500 mm/min adjustable |
|
Stroke Resolution |
stroke:0.00125 mm / extensometer:0.025 mm |
|
Sample Rate |
16 times/sec |
|
Indicator |
print able, display elongation vatue, test values, max. value & break values. |
|
Motor |
AC servo motor |
|
Dimension (W×D×H) |
55 × 35× 177 cm |
|
Weight (approx.) |
115 kg (excluding control cabinet and grips) |
|
Power |
1∮, 220V, 5A or specified by user 50HZ/60HZ |
The accessories such as the different grips, elongation measuring-devices... etc. are
equipped according to the requirements specified in the contract; our sales
representative will also give the proper suggestions to our customer beforehand.
