| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ISO: 3768, 3769, 3770; ASTM: 8117, B268 |
| Model Number: | YYN1017 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Case |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2 sets per month |
| Product Name: | Universal Corrosion Resistance Test Equipment Salt Spray Corrosion Chamber | Usage: | Salt Spray Test Chamber |
|---|---|---|---|
| Material: | PVC Rigid Plastic Board | Test Chamber Temperature: | Salt Spray Method (NSS ACSS)35±1℃ Corrosion-resistant Testing Method (CASS) 50±1℃ |
| Saturated Air Barrel Temperature: | Salt Spray Method (NSS ACSS)47±1℃ Corrosion-resistant Testing Method (CASS) 63±1℃ | Spray Quantity: | 1.0~2.0 Ml / 80cm2 / HR |
| Laboratory Relative Humidity: | 85% RH Or More | Saline Concentration: | 5% Concentration Of NaCl, Or Every Liter 5% NaCl Add 0.26g CuCl2H2O |
| High Light: | PVC Universal Corrosion Resistance Test Equipment,PVC Salt Spray Corrosion Chamber,Universal Corrosion Resistance Test Equipment |
||

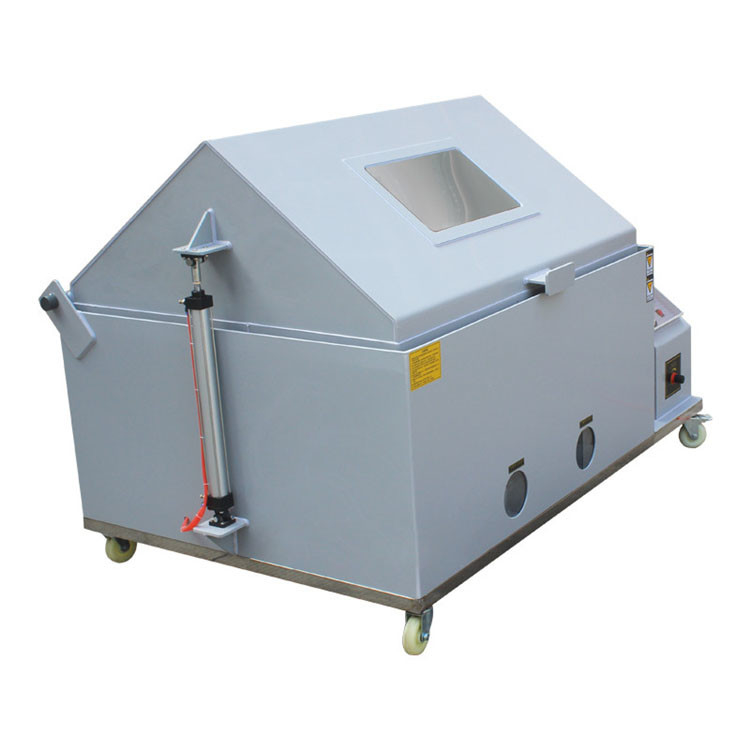

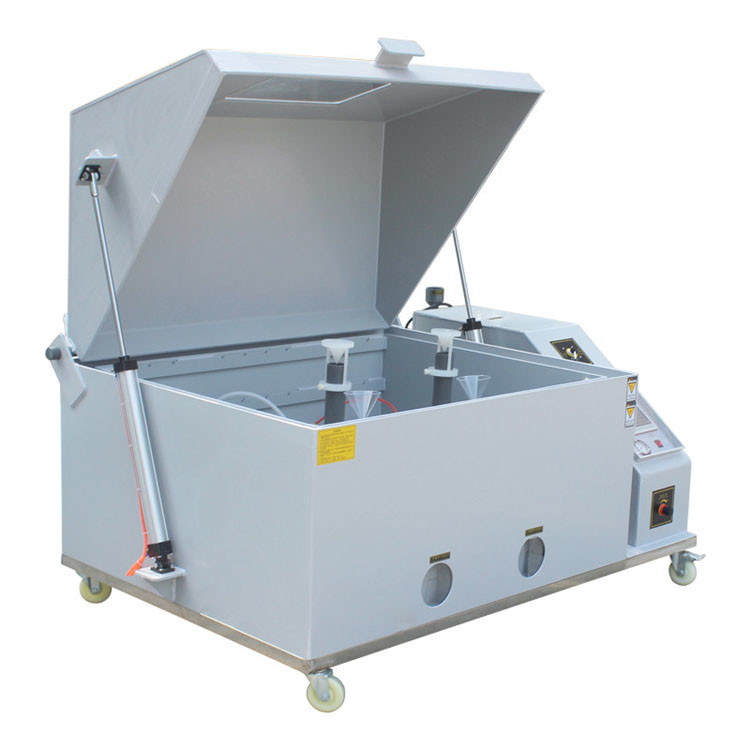

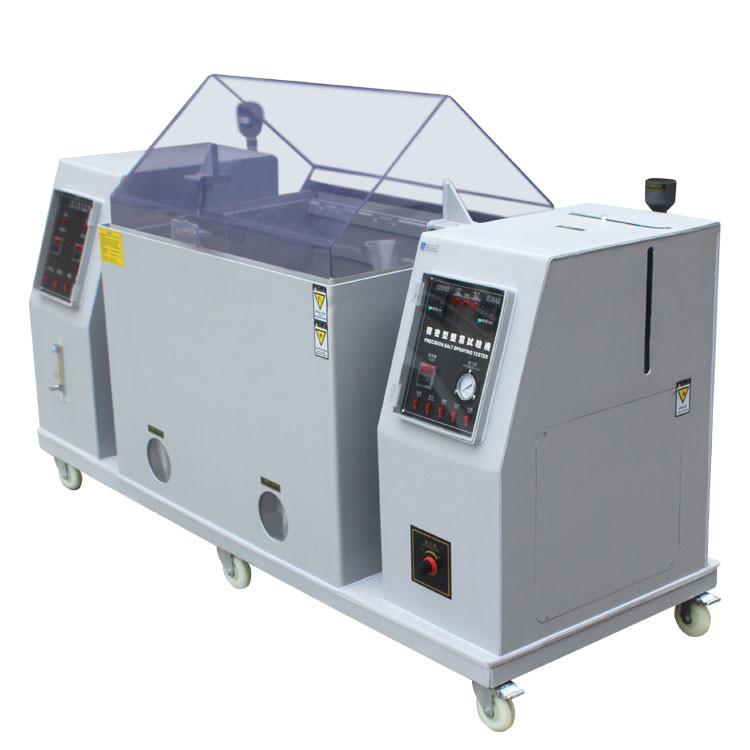

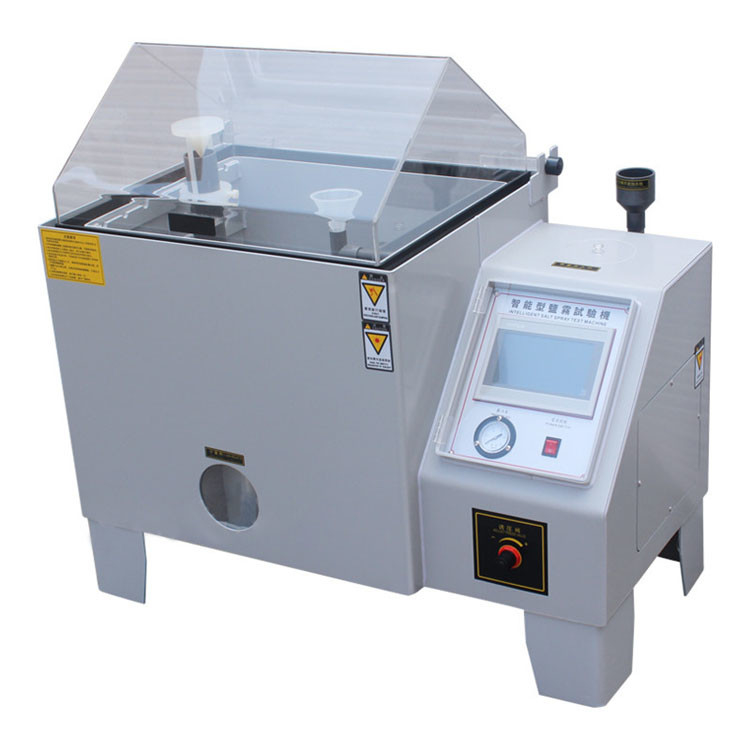

Universal Corrosion Resistance Test Equipment Salt Spray Corrosion Chamber
Product introduction:
Salt Spray Test Chamber is adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, metal products, it carries out the anti-corrosive treatment to test the corrosion resistance of the products.
Salt Spray Test Chamber can assess the ability of some products to resist salt spray corrosion by comparing the capability of salt spray corrosion of material and its protective layer and the technological quality of similar protective coating.
Corresponding standard of the Salt Water Spray Test Chamber for CASS, NSS Test:
1. GB/T 2423.17-1993 salt spray test
2. GB/T 2423.18-2000 salt spray test
3. GB/T 10125-1997 salt spray test
4. ASTM.B117-97 salt
5. JIS H8502 salt spray test
6. IEC68-2-11 salt spray test
7. IEC68-2-52 1996 salt spray test
8. GB.10587-89 salt spray test
9. CNS.4158 salt spray test
10. CNS.4159 CASS Accelerated acetic acid copper salt spray test
11. GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test
Purpose :
Salt spray test machine is applicable for the salt spray corrosive test for the protection layer of components, parts, electronic and electrical parts and metal materials and industrial products
Chamber Structure:
1. Salt spray test machine cover is made of transparent materials so that the operator can see the tested sample in the chamber and the spraying situation of the tested sample .
2. A waterproof structure is adopted between the chamber cover and chamber body and thus there is no salt spray overflow .
3. Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement .
Main technical parameters :
| Model | YY1015-60 | YY1015-90 | YY1015-120 |
| Inner box size: ( L×W×H ) cm | 60×40×45 | 90×60×50 | 120×100×50 |
| Outside box size: ( L×W×H ) cm | 107×60×118 | 141×88×128 | 190×130×140 |
| Equipment material: | P.V.C & P.P | ||
| Temperature range: | 35°C~55°C | ||
| Temperature fluctuations: | ≤±0 . 5°C | ||
| Temperature uniformity: | ≤±2°C | ||
| Temperature precision: | ±1°C | ||
| Test chamber temperature: | NSS ACSS 35±1°C CASS : 50±1°C | ||
| Saturated air barrel temperature: | NSS ACSS 47±1°C CASS 63±1°C | ||
| Brine temperature: | 35°C±1°C | ||
| Spray quantity: | 1 . 0~2 . 0 ml / 80cm2 / hr | ||
| PH: | NSS ACSS6 . 5~7 . 2 CASS 3 . 0~3 . 2 | ||
| Lab volume: | 108L | 270L | 600L |
| Brine tank capacity: | 15L | 25L | 40L |
| Power: | 1AC220V , 10A | 1AC220V , 15A | AC 1 , 220V , 30A |
| Safety Devices: | Overheating prevention circult-breaker,dehydration and overheating prevention mechanism,breakdown indicator light |
||
| Standard accessories: | Test salt, measure bucket, tool etc 1 set | ||
Specifications:
Salt Spray Test Chamber
1. Durable hard PVC construction
2. Anti-corrosion ,
3. Easy clean & operate
4. 1 year warranty
Features :
1. Durable hard PVC construction, anti-corrosion, easy to clean.
2. Reservoirs with mixing system on stand.
3. Cabinet heated by water jacket, heating element from USA famous company.
4. Separate heating system, be apart from salt testing chamber to ensure accurate result and protect circuit.
5. Exposure zone lined with corrosion-resistant PVC sheets.
6. Clear cover allows viewing of test conditions.
7. Peaked cover prevents dripping of condensation onto samples.
8. Water seal and water level protection system.
9. Heated humidifying tower with air relief valve, adjustable tower tip to orient salt fog.
10. Automatic DI water fill to humidifying tower.
11. Digital temperature control and readouts.
12. Integral over-protection on all heaters.
13. Low water cut-off protection on humidifying tower.
