Place of Origin: | China |
Brand Name: | YUYANG |
Certification: | CE, UL, ISO |
Model Number: | YY1078 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | $10,890.00 - $19770.00/ Set |
Packaging Details: | Plywood Case |
Delivery Time: | 15-20 work days |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 2 sets per month |
Product Name: | Walk-in Environmental Test Chamber | Humidity Range: | 20%-95%RH |
---|---|---|---|
Heating Time: | According To Chamber Size | Temperature Range: | -40~150°C -20~150°C |
Stability Humidity: | ±2%RH | Stability Temperature: | ±0.5 Centigrade |
Deviation: | ≤±2°C/±3%RH |

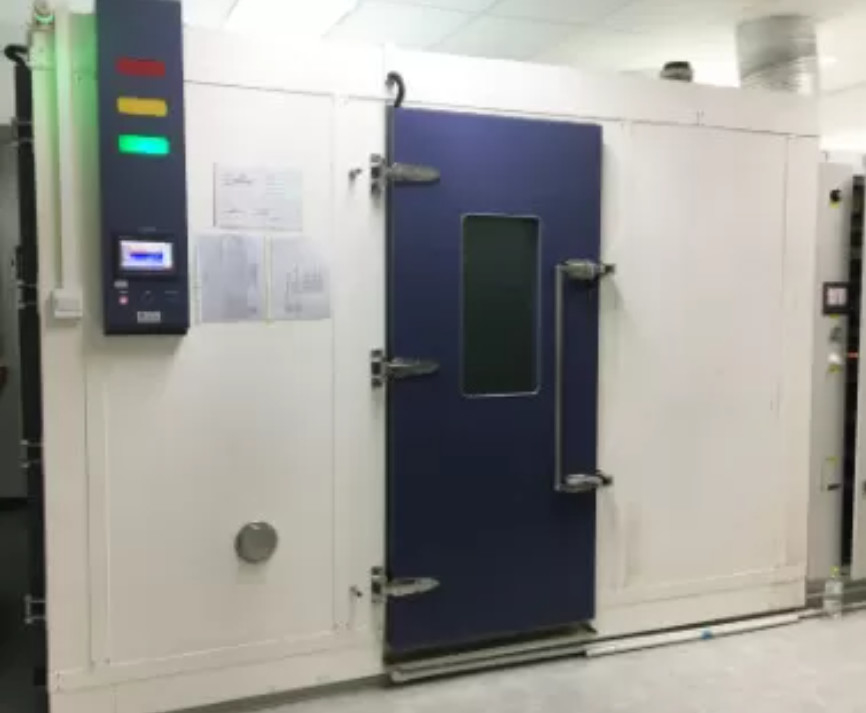

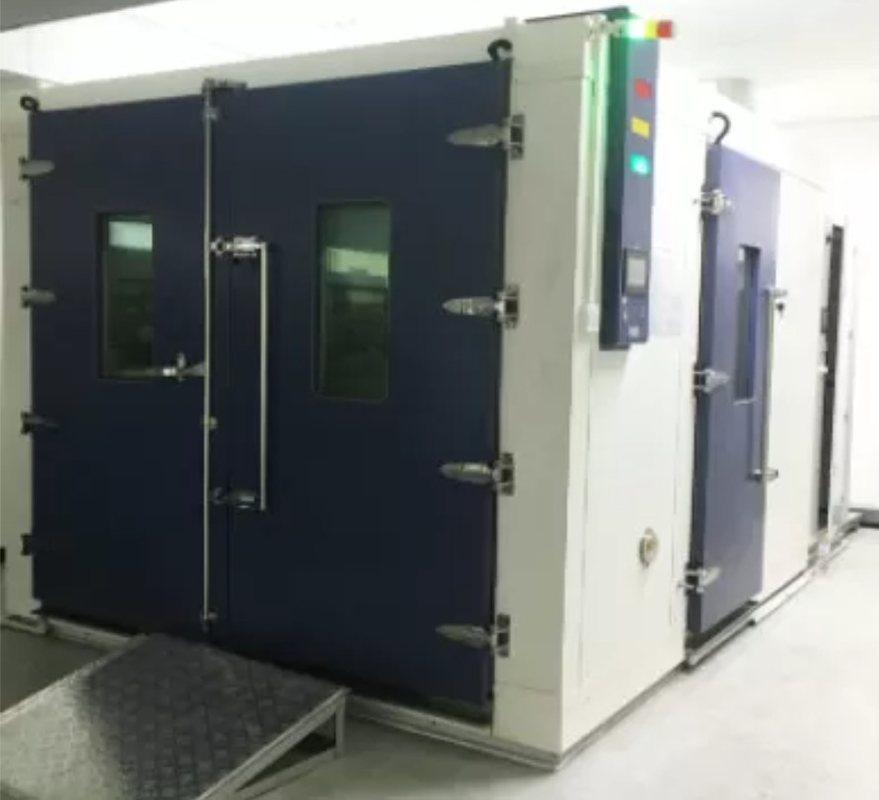

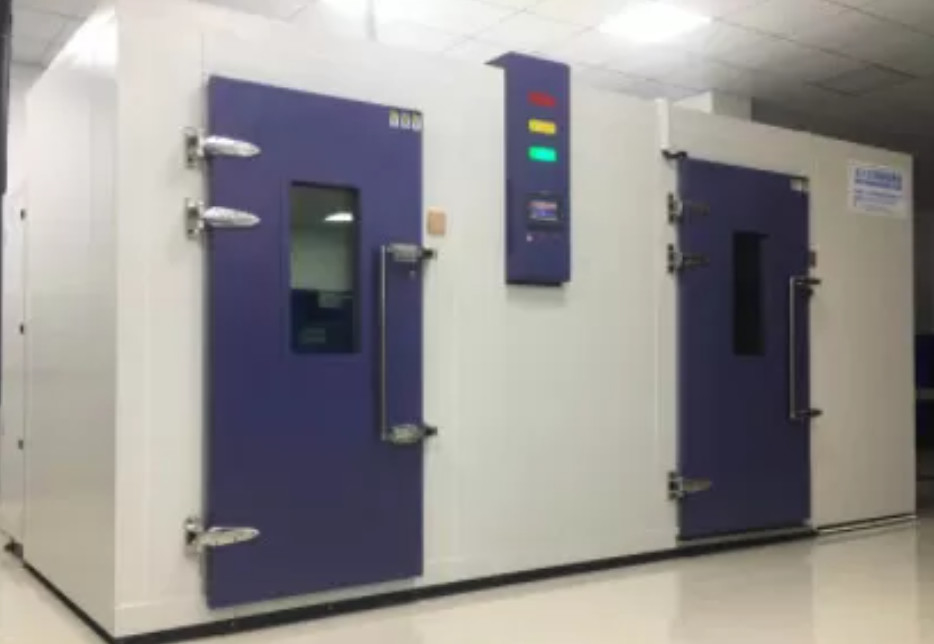

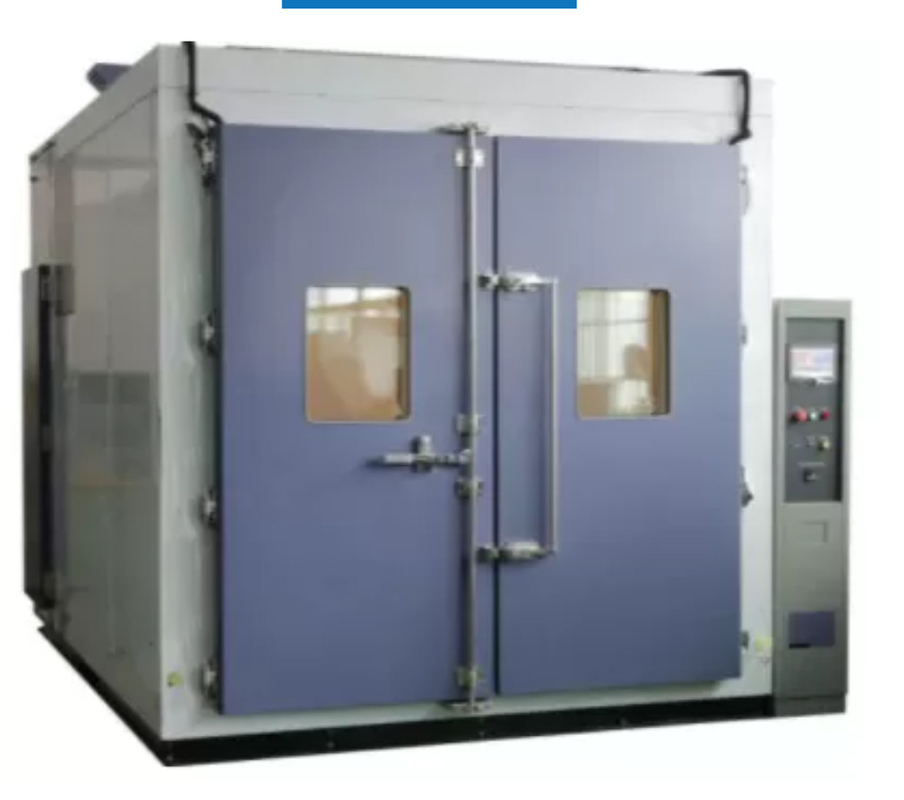

High-strength polyurethane foam and superfine glass wool durable Walk-in Chamber
Discription:
1. Temperature fluctuation : ± 0.5 ℃2. Humidity fluctuation : ± 0.5% RH
2. Humidity ± 2.5 % RH
Cooling speed: RT 20 ℃ to - 40 ℃ approx. 50 minutes
Heating up speed : RT 20 ℃ to +150 ℃ in about 35 minutes
1. Inner box material: SUS#304 heat-resistant and cold-resistant stainless steel plate
2. Outer box material: Imported cold tie plate spraying, by the matte stripe treatment
Adopt imported TEMI-300 programmable temperature and humidity controller
1. 10 groups of executable programs (100 segments)
2. The maximum execution time of each segment: 99 hours and 59 minutes
3. All cycles 0-999 times, can be freely selected
4. Part of the cycle 0-99 times, can be freely selected
6. With microcomputer PID automatic algorithm function
7. With power-off function, after power resumption, it can continue to execute the unfinished test
8. Can choose single-segment control or multi-segment program control
9. When executing single-segment control, you can change the execution condition value arbitrarily
10. Screen with backlight time control, can adjust the backlight brightness and darkness
11. Memory type multi-functional control, with each group of refrigeration compressor, solenoid valve, heating HEATER, humidifying HEATER and other fully automatic control output function
12. With standard RS-232 communication interface, can be connected to a computer
