| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | CE, UL, ISO |
| Model Number: | YY1078 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | negotiable |
| Packaging Details: | Plywood Case |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2 sets per month |
| Product Name: | Environmental Test Chamber | Humidity Range: | 20%-95%RH |
|---|---|---|---|
| Heating Time: | According To Chamber Size | Temperature Range: | -40~150°C -20~150°C |
| Stability Humidity: | ±2%RH | Stability Temperature: | ±0.5 Centigrade |
| Deviation: | ≤±2°C/±3%RH |

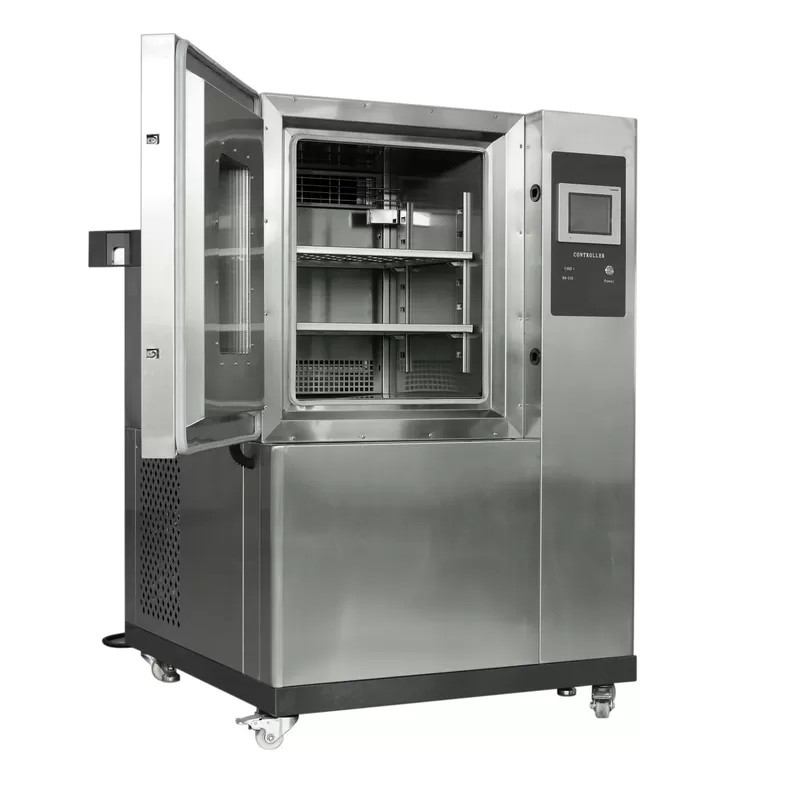

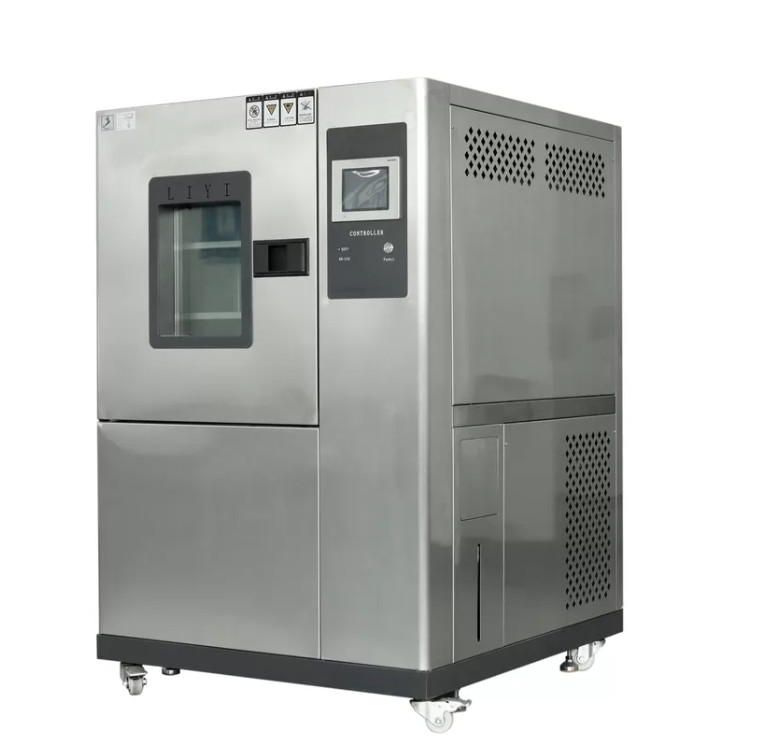

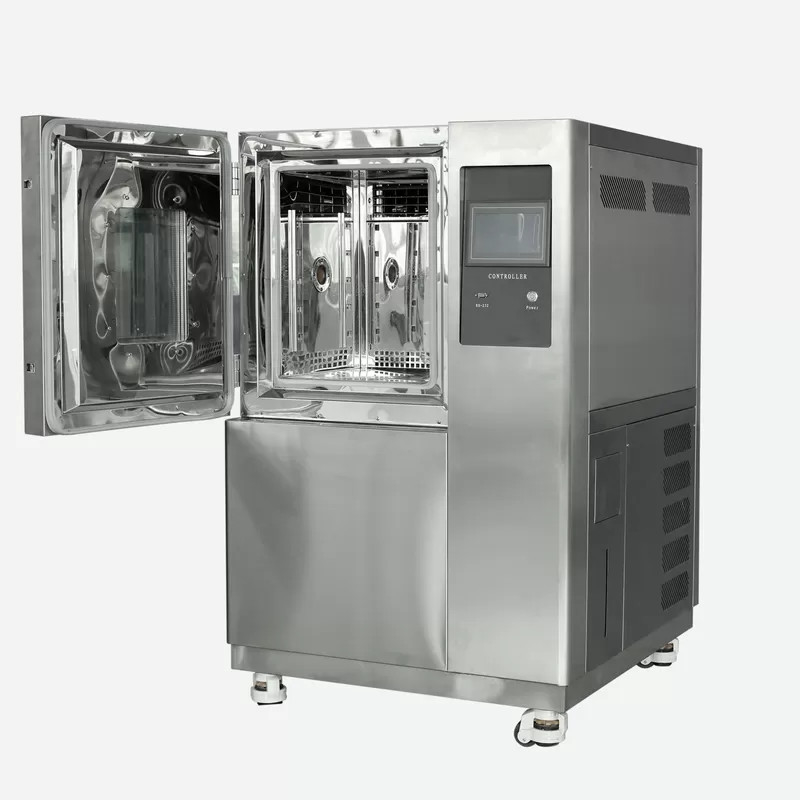

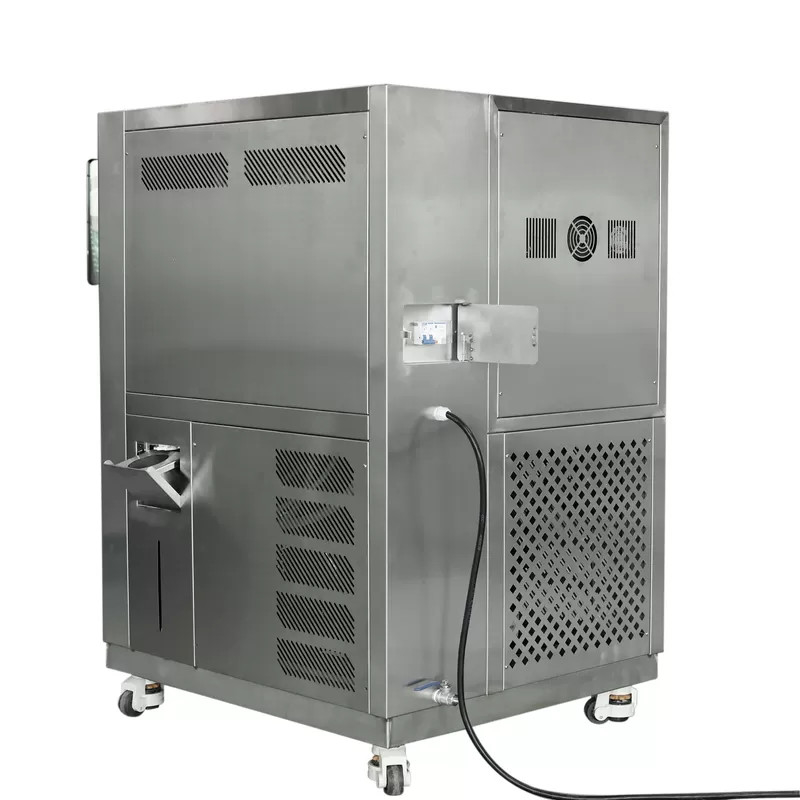

Customizable Humidity Chamber Temperature Stability Enviornmental Chamber
Application:
Touch Screen Temperature Humidity Environmental Test Chamber can simulate different environment condition. It is appropriate for testing material performance, such as resist heat, resist dry, resist humidity and resist cold. That can define performance of material.
Related Standards:
IEC600628 2-1/2/3/30, GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566
Characteristics:
1. Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
2. Control temperature humidity well-distributed, precisely and steady.
3. Completely independent system separate for testing in high temperature, low temperature and constant temperature and humidity environment.
| Model | YY-280 | YY-2150 | YY-2225 | YY-2408 | YY-2800 | YY-21000 | |
| Inner Size W×H×D(cm) | 40×50×40 | 50×60×50 | 50×75×60 | 60×85×80 | 100×100×80 | 100×100×1000 | |
| External Size W×H×D(cm) | 93×155×95 | 100×148×106 | 117×166×118 | 122×176×121 | 158×186×148 | 158×195×168 | |
| Volume(L) | 80 L | 150L | 225L | 408L | 800L | 1000L | |
| Temp&Humi Control Range |
Temp. Range: A: -40℃～150℃ Humi.range: RH20%-98% B: -60℃～150℃ C: -70℃～150℃ (Other temperature and humidity range can be customized) |
||||||
| Temp&Humi Fluctuation | ±0.5℃；±2.5%RH | ||||||
| Temp&Hum Departure | ±0.5℃-±2℃；±3%RH(>75%RH); ±5%RH(≤75%RH) | ||||||
| Controller Resolution | ±0.3℃；±2.5%RH | ||||||
| Controller Brand | Korean TEMI880 | ||||||
| Material | Inwall | SUS 304# steel plate | |||||
| Housing | SUS 304# steel plate surface fog processed | ||||||
| Heat Insulator | resistance to high temperature, high chlorine acid b vinegar foam insulation materials | ||||||
| Aie Circulation Way | centrifugal fan-broadband type force air circulation | ||||||
| Refrigeration Way | cascade type multiple refrigeration | ||||||
| Refrigerater | fully enclosed piston compressor Taikang France | ||||||
| Refrigerants | R4O4A or American dupont environmental protection cold media(R23+R404) | ||||||
| Condensing Way | Air-cooling | ||||||
| Heater | nickel chrome heating wire heater | ||||||
| Humidifier | semi-closed steam | ||||||
| Water Supply Way | automatic cycle water supply | ||||||
| Standard Accessaries | *50mm test hole on the left............................................................1PCS *PL inner lamp................................................................................1PCS *Adjustable clapboard.....................................................................2PCS *Humidity cloth...............................................................................1Bag *Fuses..............................................................................................3PCS *Power line.......................................................................................1PCS *Software CD....................................................................................1PCS *Operation manual.............................................................................1PCS |
||||||
| Safety Devices | *Leakage current *Overload *Compressor overload *Over temperature *Ultra-wet/dry *Humidification temperature protection. |
||||||
| Power | 380/ 220V AC±10% 50/60Hz | ||||||
