| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | QB/T 2918-2007 |
| Model Number: | YYT015 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $1100 |
| Packaging Details: | plywood case |
| Payment Terms: | Western Union, T/T, L/C,Paypal |
| Supply Ability: | 3pcs /week |
| Capacity (optional): | 100N, 200N, 500N, 1, 2, 5, 10, 20, 30, 50KN | Unit (switchable): | N, KN, Kgf, Lbf, Mpa, Lbf/In2, Kgf/mm2 |
|---|---|---|---|
| Load Resolution: | 1/500,000 | Load Accuracy: | ±0.25% |
| Speed Accuracy: | ±0.5% | Power Consumption: | 0.5 KVA |
| Power Supply: | AC220V 15A Or Specified By User | Sensor: | Celtron Load Cell |
| Max. Stroke: | 1000mm (excluding Fixture) | Unit Switchover: | G, KG, N, LB |
| High Light: | Hydraulic Universal Testing Lab Equipment,1000mm Hydraulic Universal Testing Machine,500N Hydraulic Testing Lab Equipment |
||

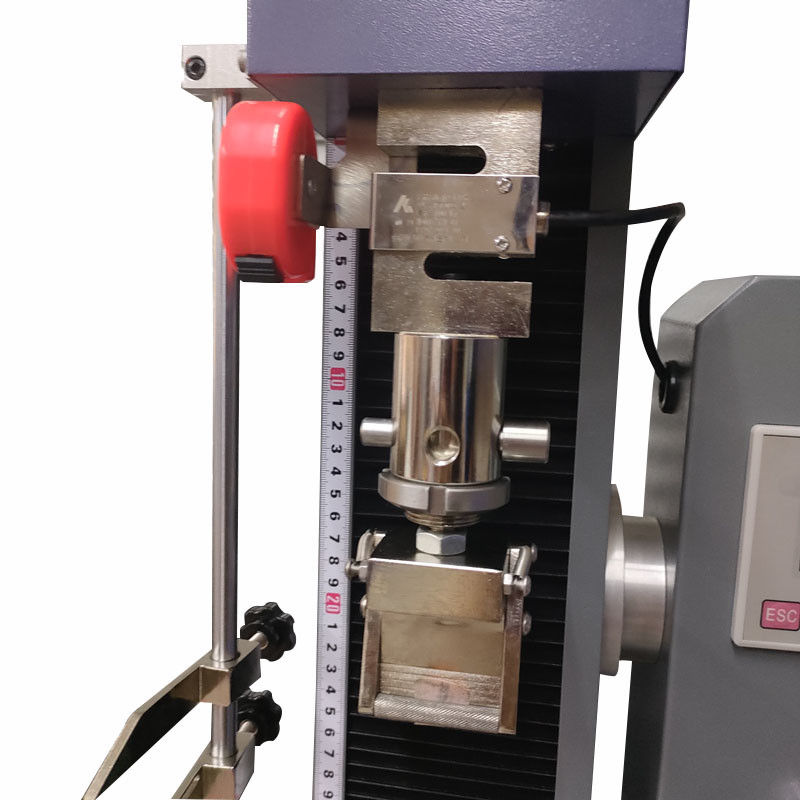

YUYANG Hydraulic Universal Testing Machine Price/tensile Testing Lab Equipment
Purpose:
This machine is suitable for adhesive tape, rubber, plastic, sponge, waterproof materials, electric wire & cable, textile, net rope, non-woven fabrics etc, nonmetal materials and metallic thread, metal foil, steel plate and metal rod to do tensile, compression, bending, peeling, cutting, tearing shearing tests.
Computer control style RS-8000A ( It is used for spot test in production line, can do many data analysis and print the test report, also can used for material’s cyclic test and holding test ).
Software and Curves
The TM2101 software is designed purposely for computer controlled electronic universal testing machine, used for tension, compress, bend, shear, tearing andpeel test. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force maximum deformation, yielding point and elastic modulus; this system is featured in curve process, multi-sensor support, image interface, flexible data process and powerful system function.
Specification:
| Capacity (optional) | 100KN, 200KN, 300KN |
| Unit (switchable) | N, KN, Kgf, Lbf, Mpa, Lbf/In2, Kgf/mm2 |
| Load resolution | 1/500,000 |
| Load accuracy | ±0.25% |
| Load range | Rangless |
| Stroke (exclude the grips) | 650mm, 800mm (optional) |
| Effective width | 400mm , 600mm (optional) |
| Test speed | 0.001~300mm/min |
| Displacement resolution | 0.001mm |
| Software | Closed-loop control software |
DONGGUAN YUYANG INSTRUMENT CO.,LTD is Located in Wanjiang District (Dongguan City, Guangdong Province,China),a famous historical town with prosperous industry and convenient transportation.
We are a high-tech enterprise which is specialized in developing and manufacturing Fire Testing Equipment, Building Material Fire Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and etc.
Decades of research and development strengthen the leading edge of YUYANG in this field, and established as an crucial role in R&D on high quality and high-cost performance of testing equipment. YUYANG's testing equipment are widely used in various field: scientific institutions, colleges, inspection institutions, auto parts, electronics, electricals, lithium battery, LED, photoelectricity, mobile, plastic and rubber, display, telecommunication, chemical industry, aerospace, building material and product, wire and cable, toys, furniture, textile and fabrix, etc. All YUYANG testing equipment are designed according to international test standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA,CEN and so on.
DONGGUAN YUYANG INSTRUMENT CO.,LTD looks forward to cooperating with customer all over the world.
If you are interested in any of our products or would like to discuss a custom order. Please feel free to contact us. We are looking forward to forming succesful business with new clients around the world in the near future.
