| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | CE |
| Model Number: | YYM052 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | $3050 |
| Delivery Time: | 7-30 Days |
| Payment Terms: | T/T |
| Type: | Needle Metal Detector | Usage: | Garment And Bedding Checking |
|---|---|---|---|
| Alarm Method: | Sound Light Alarm And Return Then Restart Again | Power Suply: | 110V 220V Or 380V |
| Application: | Ferrous And Non-ferrous Metal Detector | ||
| High Light: | Sensitive Touch Screen Metal Detector,Magnetic Induction Digital Detector For Biscuits,Food Frozen Magnetic Induction Detector |
||
Sensitive Touch Screen Metal Detector For Meat Biscuits Snack Food Metal Detector Frozen Food Industry Metal Detector
Brief introduction:

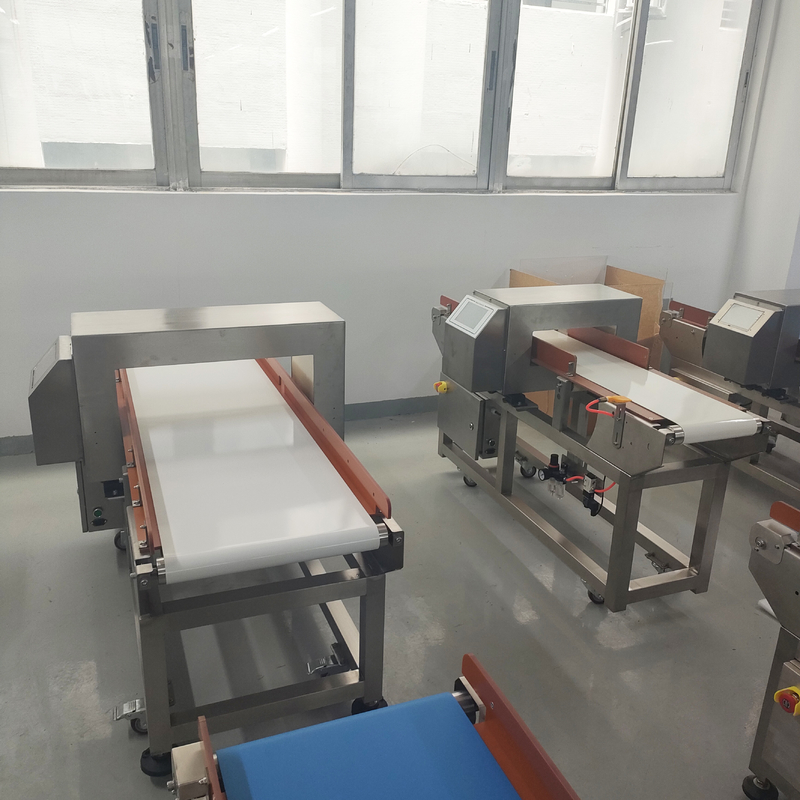

The Conveyer Type Needle Detector is a free-standing conveyorized digital Needle Detector for garments. Accepts non-metals and all approved non-ferrous zips and poppers. It will reject and ferrous or nickle contamination, typically staples and needle fragments equivalent to a 1.0 mm ferrous sphere. The unit has a belt speed of approximately 25 to 30 meters per minute and an aperture size of 24" (700mm) width x 7" (175mm) height. In case of rejection, belt stops with an audible alarm and the signal light is activated. Full digital technology and control.
Main Features:
1) Made of 304 stainless steel, durable and nice appearance, conveyor and pallet assembly used in the U.Sstandards of white non-toxic materials.
2) Digital machine, memory function for registering various products(Max: over 12 items)
3) adopt the combine technology of double signal and detection circuit, LCD display, with Chinese and English menu, easy operation.
4)Adopt Germany professional detection technology with balanced principle, more reliable, better performance.Dual-channel and frequency detecting ferrous, non-ferrous and stainless steel
5) DSP and MCU combination of the detection signal for data sampling and data processing, improve the detection results.
6)a new circuit design, high sensitivity, mature phase adjustment technology, can adjust the products automatically, inhibit the products effect effectively.
7)Able to detect iron, stainless steel, copper, aluminum and other non-ferrous metals and other materials.
8)With the learning function of automatic identification, overcome the effect of products materials efficiently, strong anti-interference and shock proof.
9)Support 24 hours non-stop working.
10) fairly good waterproof ability, apply to high temperature, low temperature, damp, dry, dust, dew and other poor work environment.
Parameter:
| Detection method | Magnetic induction.digital process double sensor |
| Detection ability | ≥FeΦ0.8 ≥FeΦ0.8 ≥FeΦ1.0 ≥FeΦ1.2 ≥FeΦ1.5 |
| Detection height | 100mm 120mm 150mm 200mm 250mm |
| Detection width | Net width 600mm-non-standard sizes(custom) |
| Detection adjustment | Touch screen adjust the level 1-12 |
| Alarm Method | Sound/light alarm and return, then restarts again |
| Power supply | Ac 220V 50-60Hz |
| Rated output | 140W |
| Machine size | L1820mm×W1050mm×H900mm |
| Weight | 280KG |
FAQ:
1. Are you a manufacturer or trader?
We are a manufacturer, we have our own factory in Dong Guan, we have independent department for purchasing, producing, processing, testing, packing, storing, and transportation, believe our team is the best team in China.
2. Do you sell accessories for products?
Yes. We have matched the parts for our testing equipment. If our machines are damaged by fire, water flood, earthquakes, unsteady power, and other natural disasters, we are willing to supply match parts at lowest price for you.
3. How about the packing for product? Is it easily damaged during transportation?
For light structure products like Gold detector. Hand held metal detector and so on we take of strong carton box.
For heavy structure products like conveyor belt needle detector. Food metal detector X-ray machine. Our packing is Standard Export ploy Wooden Case.
Every prepackage has a plastic bags cover.
4. What’s your main product?
We are professional in needle detectors. Metal detector and other related electronic products and machines.
5. Where is your main sales market?
Our Gold meal detectors customers are all over the world.
Our hand metal detectors and walk-through metal detectors are mainly in Southeast Asia, South America, Middle east, East Europe and Africa.
Our needle and food metal detector mainly customers are from Australia, USA, All Europe and Asia.
6. How about your after-sales policy?
Customer first is our always principle. All of our products normal warranty is 12 months. We give necessary back or video guidance for daily problems. If massive products occur big quality problems. Our technical and engineer support overseas service.
7. Do you accept customer Logo and customized?
We accept kinds of customized and logo for all of our products for customers.
