| Place of Origin: | Dongguan |
| Brand Name: | YUYANG |
| Model Number: | YYE010 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood box |
| Delivery Time: | within 7 days |
| Payment Terms: | EXW(also have FOB, CIF, DAP, DDU, DDP) |
| Supply Ability: | 100 sets a month |
| Temperature Fluctuation: | ±0.3°C | Material: | 304 Stainless Steel |
|---|---|---|---|
| Voltage: | 220V/50HZ | Spacing Of Water Spray Holes: | 50mm |
| Spray Hole Flow Rate: | 0.07 L/min +5% | Temperature Uniformity: | ±0.5°C |
| Temperature Range: | 15-35（℃） | Drenching Water Pressure: | 80~100Kpa |
| High Light: | Digital PID Rainfall Tester,100Kpa Drenching PID Rainfall Tester |
||

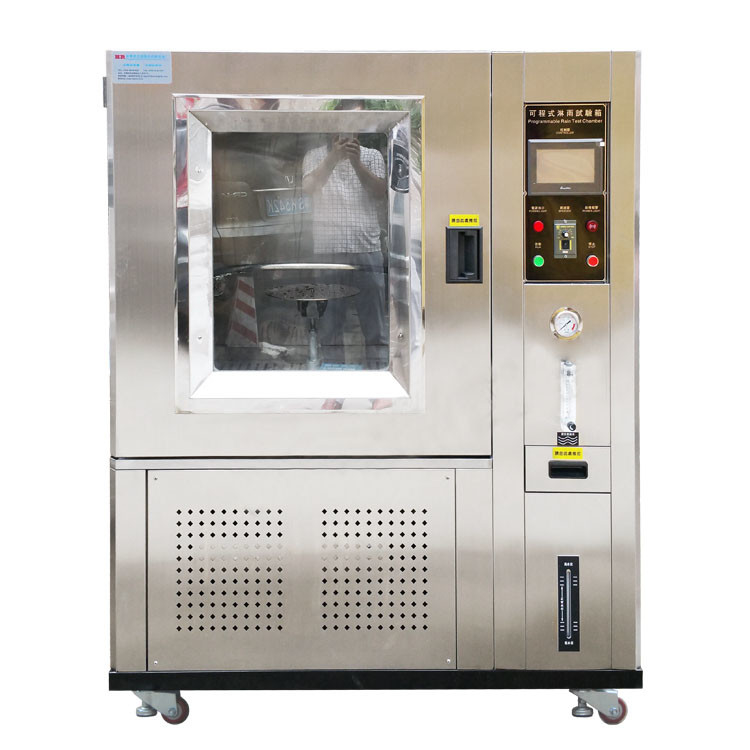

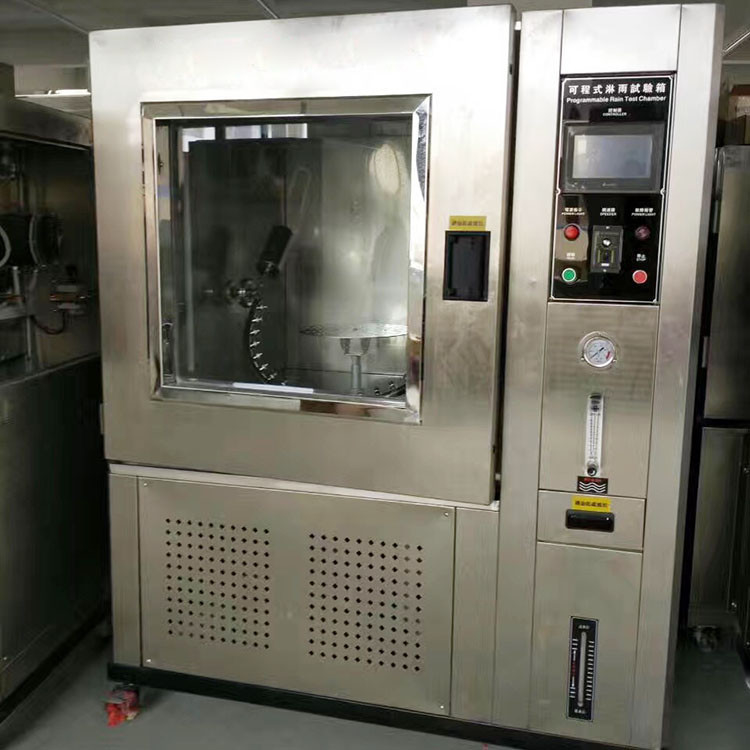

Digital PID Rainfall Tester With 80-100Kpa Drenching Water Pressure
This product is ideal for assessing electrical products and shells. Its seals can guarantee the proper performance of testing equipment and components even under rain conditions. The product has a scientific design that enables realistic simulation of diverse conditions, such as dripping, drenching, splashing, and spraying.
What's more, it has a comprehensive control system and makes use of frequency conversion technology; hence, the rotary angle of the rainfall test and the swing angle of the water spray pendulum, as well as the frequency of water spray swing can all be adjusted flexibly.

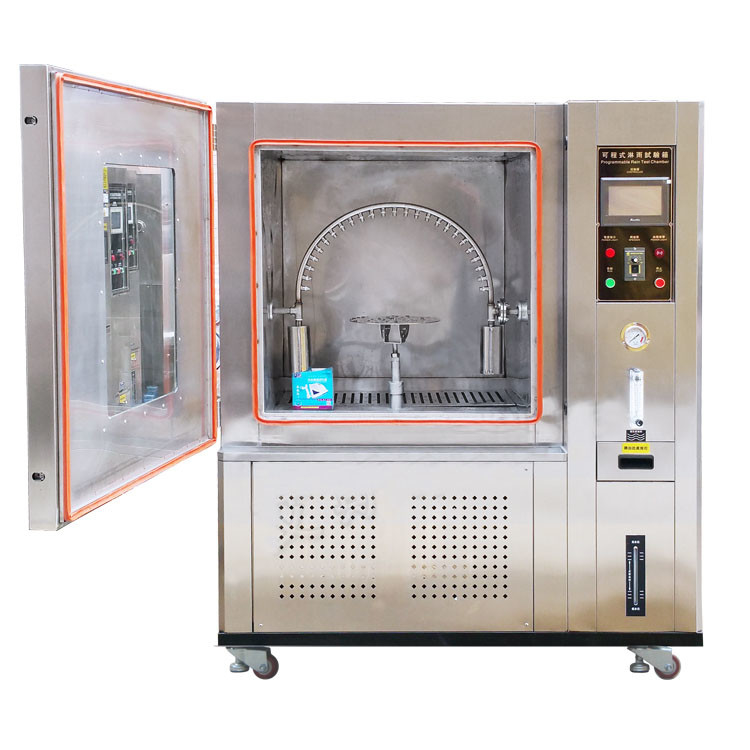

The inner chamber of the equipment is made with stainless steel 304, while the outer casing is available in both stainless steel 304 or powder-coated versions. Additionally, a round turntable is equipped in the sample table, which is adjustable in speed. To maximize the security and efficiency, the device is provided with power overload, short-circuit protection, grounding protection as well as water shortage protection coming with alarm signaling tips.
The inner box is made of high-quality 304 stainless steel, and the outer box is made of brushed stainless steel. Furthermore, a waterproof tempered glass panel serves as the observation window.

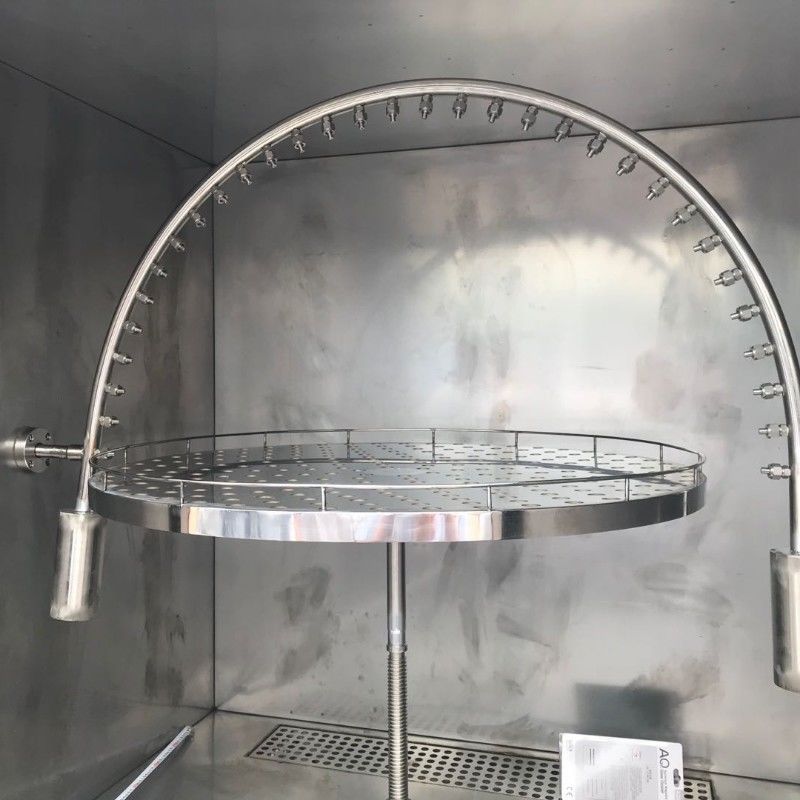

Depending on the weatherproof grade, the pendulum angle on the vertical line varies from ±60° (total of 120° )to ±180° (total of 360° ). The pendulum speed for IP3 is 15 times per minute, while the speed for IP4 is 10 times per minute. Additionally, the water jet holes have a diameter of 0.4mm, and a spacing of 50mm.
The adjustable turntable speed accommodates any range from 1 to 10 rounds per minute, and the flow rate of the water jets range from 0.07 L/min with an additional 5%. Additionally, the test time and drenching water pressure are adjustable, with a time range from 1 to 999,999 minutes and water pressure between 80 to 100Kpa. Lastly, it is powered by single-phase AC220V with 50/60HZ.
The IP34 Rain Test Chamber is a perfect tool for testing the waterproof performance of various electronic products. It can simulate all kinds of rain intensity and atmosphere, with a built-in cooler and heater allowing to control the temperature and humidity. As such, it is suitable for testing items such as cell phones, tablet PCs, and e-books.
The IP34 Rain Test Chamber has a number of advantages, making it the tool of choice for any manufacturers. The internal equipment can accurately control the rain intensity as well as other environmental factors, while the temperature and humidity can also be set accordingly. Due to its advanced features, it is the perfect solution for testing electronic products.
Our Environmental Test Chamber is designed to meet the highest standards of quality and accuracy, while providing excellent customer service. We offer a range of technical support and service options to ensure that you get the most out of your Environmental Test Chamber.
For more information about our Environmental Test Chamber technical support and service options, please contact us directly.
