Controlled Environmental Test Chamber With ±0.1°C Temperature Accuracy Digital PID

Product Description:

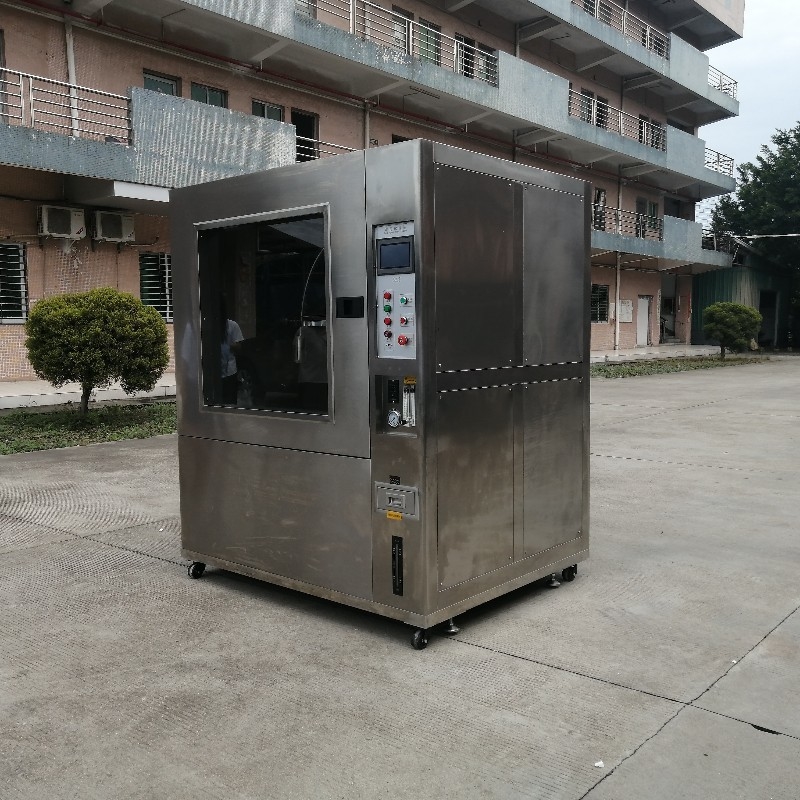

Controlled Environmental Test Chamber With ±0.1°C Temperature Accuracy

This product is a perfect choice for evaluating electrical products in the rain environment. Its patented design makes it possible to simulate different rain environments including steady-state rain, large falls, splashing and spraying.

The advanced controller system adopts frequency conversion technology to adjust the rotary angle, swing amplitude and swing frequency of the water spray pendulum. In this way, the movement of the rainfall test frame can be controlled precisely.

Features:

The inner chamber is made of stainless steel 304, and the outer case could be either stainless steel 304 or powder coating.

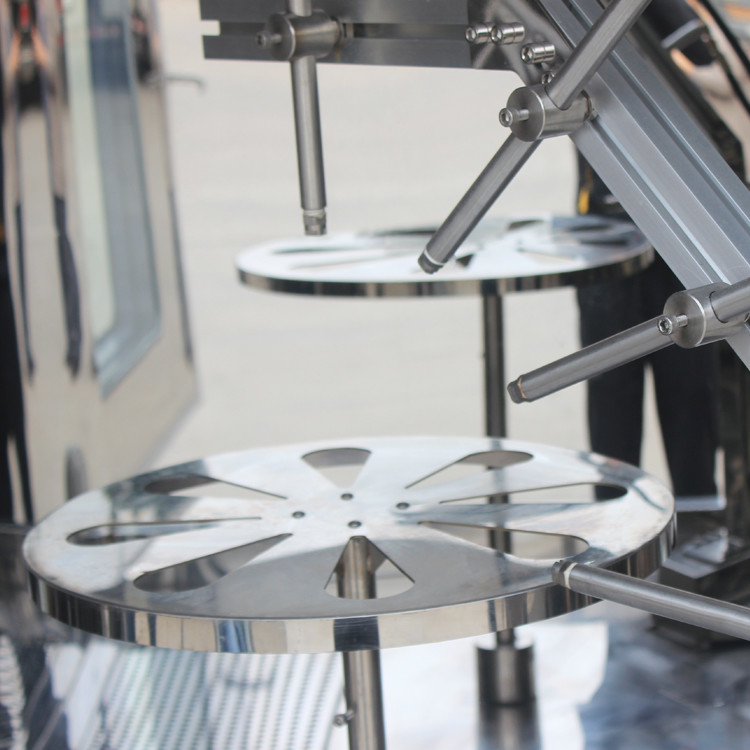

For the sample table, it is equipped with a round turntable which allows the user to customize the speed.

Also, the device provides the necessary protections to ensured it won’t be damaged, such as power overload protection, short-circuit protection, grounding protection, water shortage protection, and alarm signaling tips.

Technical Parameters:

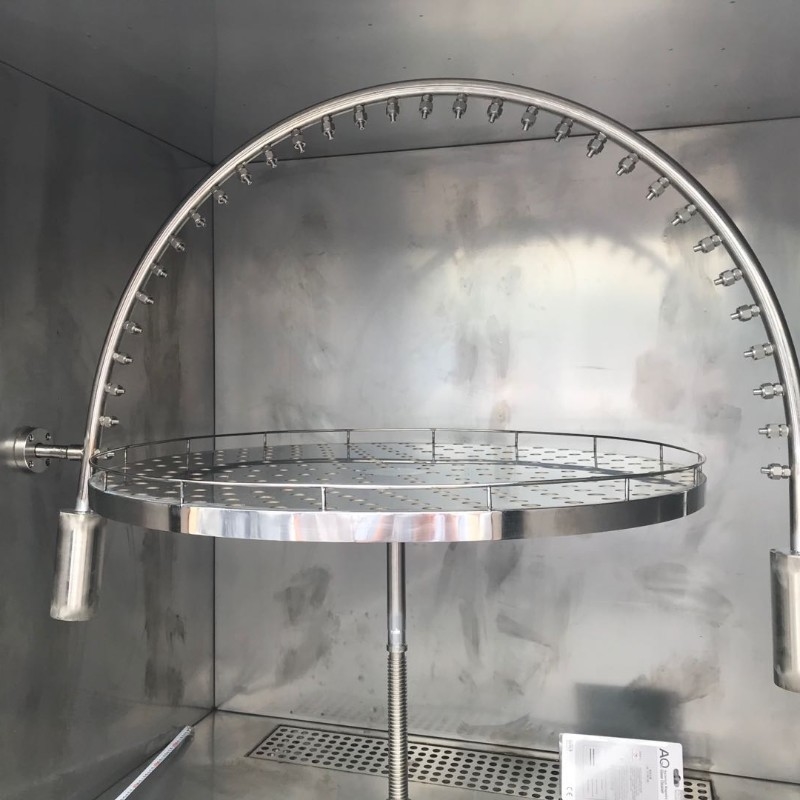

The inner box of the test fixture is made of 304 stainless steel, while the outer box is made from regular stainless steel. The viewing window is a waterproof tempered glass for safety. The pendulum angle has two modes: IPX3, which is ±60° along the vertical line, and 120° in total; IPX4, which spans ±180° left and right along the vertical line, 360° in total. In IPX3, the pendulum speed is 15 times per minute, and in IPX4 it is 10 times per minute. The water spray hole has a diameter of 0.4mm and its spacing is 50mm apart. The turntable speed is adjustable from 1 to 10rpm. The flow rate of the water jets is 0.07 L/min with a tolerance of 5%. You can also set the test time from 1 to 999,999 minutes. The drenching water pressure is between 80 to 100Kpa. The power supply needed is a single-phase AC220V, 50/60HZ.

Applications:

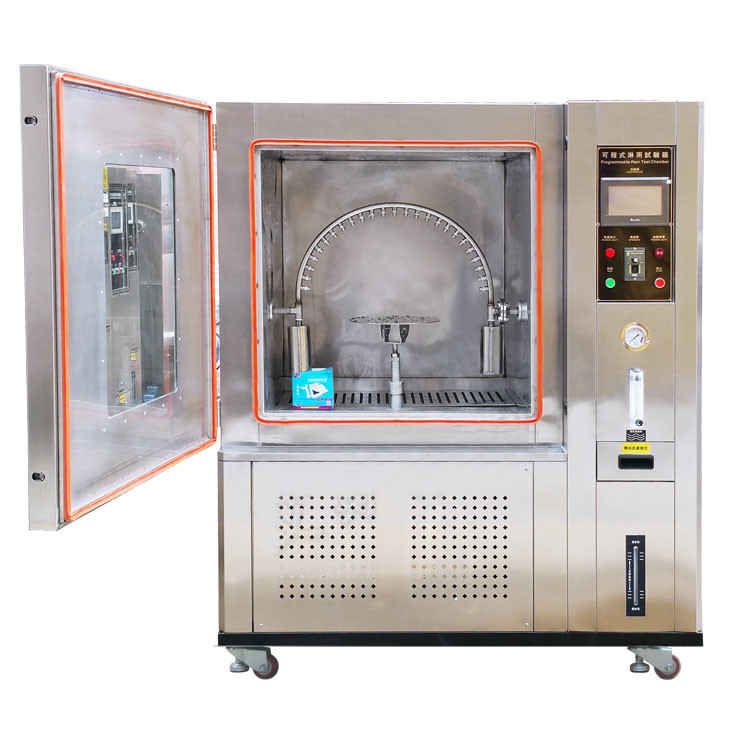

The IP34 rain test chamber is a piece of equipment designed to simulate rain environment of different intensities. It is widely used to test the waterproof performance of various electronic products such as cell phones, tablet PCs, e-books etc.

The chamber is equipped with both heater and cooler inside which can be used to control the temperature and humidity according to the testing requirements specific to different electronic products.

Support and Services:

We provide technical support and service for all of our Environmental Test Chamber products. Our technical support team is available to help you with any issues or questions you may have related to our products. We also provide on-site service where a technician will come to your location to help solve any issues or diagnose any problems.

Our technical support team is made up of experienced engineers and technicians who are knowledgeable and certified in the industry. We can provide you with comprehensive and detailed information about our products, including installation, operation, maintenance, and troubleshooting. We can also provide you with detailed instructions on how to use our products, including safety and security tips.

We also offer a variety of online resources to help you get the most out of our products. Our online resources include user manuals, tutorials, and technical support documents. Additionally, we have a team of dedicated customer service representatives who are available to answer any questions you may have about our products.

Packing and Shipping:

The packaging and shipping of the Environmental Test Chamber is as follows:

• The Environmental Test Chamber is shipped in a cardboard box with the dimensions of 30x20x10 cm.
• The product is enclosed in foam to ensure protection during transport.
• The package must be handled with care to avoid any damage.
• The package is labeled with the product name and logo.
