Place of Origin: | Dongguan |
Brand Name: | YUYANG |
Model Number: | YYE010 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiable |
Packaging Details: | Plywood box |
Delivery Time: | within 7 days |
Payment Terms: | EXW(also have FOB, CIF, DAP, DDU, DDP) |
Supply Ability: | 100 sets a month |
Sample Working Area: | 600*600*600/ 800*800*800/ 1000*1000*1000 | Diameter Of Water Spray Hole Diameter: | 0.4mm |
---|---|---|---|
Material: | 304 Stainless Steel | Spacing Of Water Spray Holes: | 50mm |
Temperature Accuracy: | ±0.1°C | Compliance: | IP3.4 Standard |
Rotary Speed: | 1-10rpm | Temperature Fluctuation: | ±0.3°C |
High Light: | Industrial Grade Waterproof Test Equipment,304 Stainless Steel Waterproof Test Equipment |
Industrial Grade Waterproof Test Equipment With Temperature Accuracy ±0.1°C

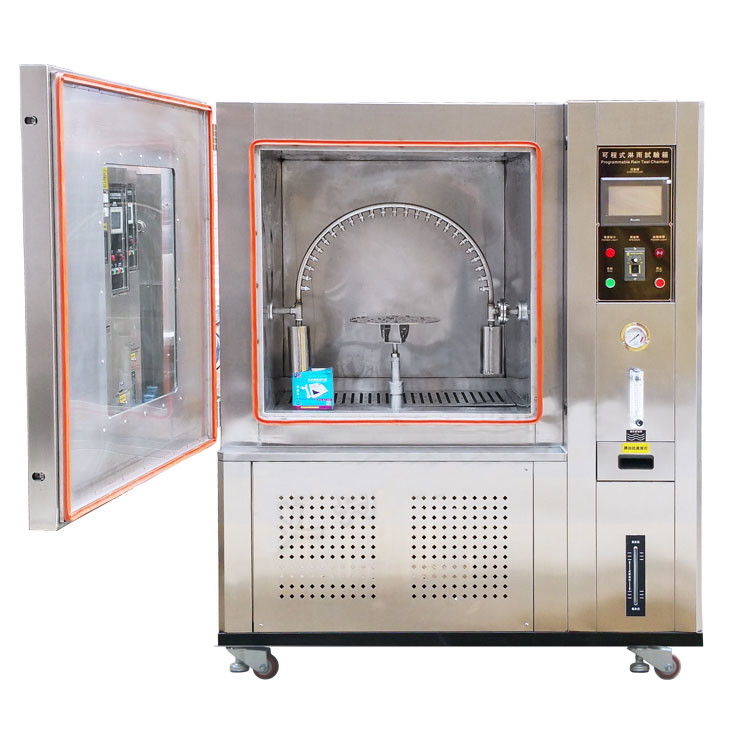

This product is suitable for assessing electrical products under rainy conditions to ensure the good performance of the equipment and components. It utilizesscientific design to accurately simulate different environments and conditions, such as dripping, drenching, splashing, and spraying. A comprehensive control system, coupled with the use of frequency conversion technology, allows us to adjust the rotary angle of the rainfall test frame, the pendulum swing angle of the water spray, along with the frequency of the water spray – all in real time.

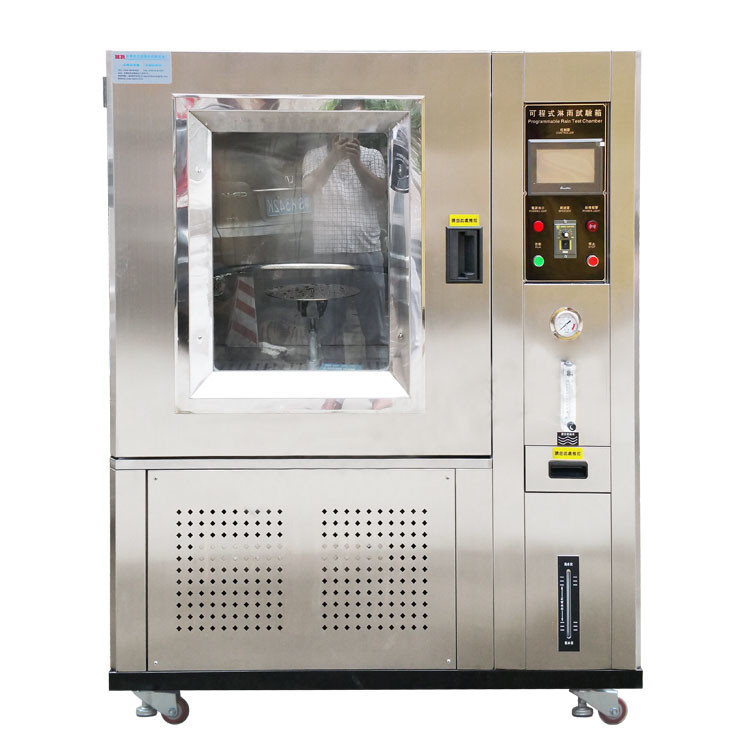

The inner chamber is constructed with stainless steel 304, while the outside casing is either stainless steel 304 or made with a powder coating to ensure its durability.

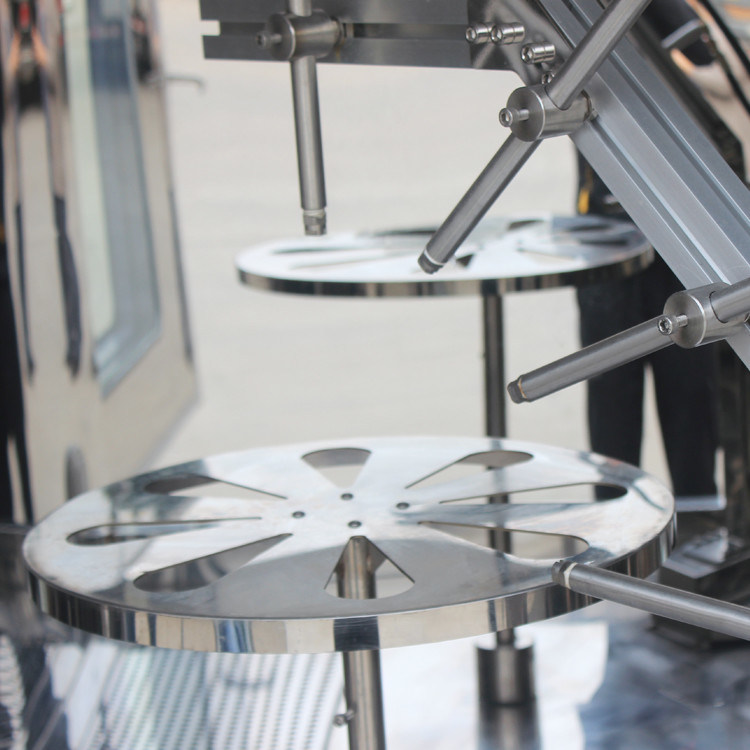

Additionally, a samples table is equipped with a round turntable that can be adjusted to different speeds.
This device also offers power overload protection, short-circuit protection, grounding protection, water shortage protection and alarm signaling tips as safety features.

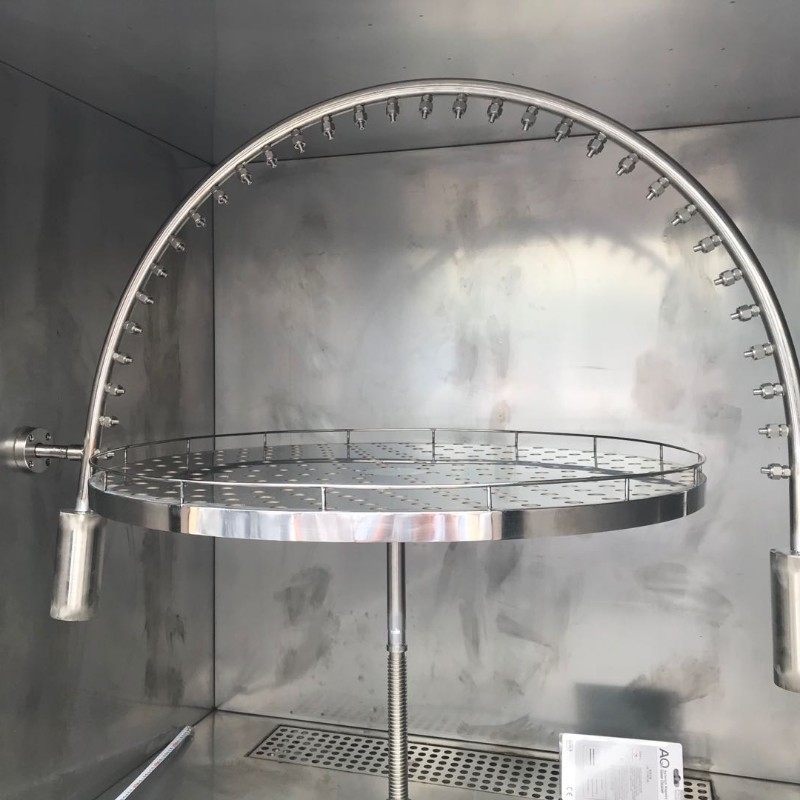

The inner box is made of 304 stainless steel,while the outer box material is stainless steel. The observation window is waterproof tempered glass. For pendulum angle, IPX3 has an angle of ±60° along the vertical line, 120° in total. IPX4, on the other hand, has left and right along the vertical line ± 180 °, a total of 360 °. The pendulum speed is IP3 15 times / min, and IP4 10 times / min. Not to mention, the diameter of water spray hole is Diameter: 0.4mm, and the spacing of water jet holes is 50mm.
Additionally, the turntable speed is adjustable and can be set to 1 to 10 rotations per minute (rpm). The flow rate of water jets is 0.07 L/min +5%. For test time, it can be set from 1 to 999,999 minutes. The drenching water pressure is 80~100Kpa, and the power supply is single-phase, AC220V, 50/60HZ.
The IP34 Rain Test Chamber provides an artificial environmental condition that can accurately simulate an array of varying levels of rain intensity. Its primary purpose is to test the waterproof capability of several types of electronic products, ranging from cell phones and tablets to e-readers.
What makes this rain test chamber unique is that it is specifically designed with an inner heater and coolant. These can help to regulate the overall temperature and humidity, depending on the type of electronic product that needs to be tested. Additionally, it can also facilitate the required needs during a test, ensuring accurate and trusted results.
An environmental test chamber is a highly specialized piece of equipment used to simulate a variety of environmental conditions. While these systems can be complex, we are here to provide technical support and services to ensure that your environmental testing is successful.
We provide technical support for a variety of environmental test chambers, including setup, calibration, and troubleshooting. Our team of experienced technicians can help you get your system up and running quickly and efficiently.
Our service team can provide regular maintenance and servicing of your environmental test chamber, ensuring that it is in peak operating condition. We also offer emergency repair services to keep your system running smoothly.
Environmental Test Chamber Packaging and Shipping:
