Name: 45 Degree Automatic Flammability Test Apparatus
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY123
Price: 25,000.00 USD
Availability: InStock

Home > products > Flammability Testing Equipment >

45 Degree Automatic Flammability Test Apparatus

45 degree flammability test apparatus

automatic flammability testing equipment

flammability test apparatus with warranty

Place of Origin:

China

Brand Name:

YUYANG

Certification:

Model Number:

YY123

Request A Quote

45 Degree Automatic Flammability Test Apparatus

Product Details

Spread Time Scope:

0-99.99s

Firing Time:

1s Or Specified

Resolution:

0.01s

Specimens Clamp Inside Dimension:

152×38mm

Dimension::

540×410×300mm(L×W×H).

Flame Height::

15.875mm

Igniter Model::

Comply To ASTMD1230

Power Supply::

220V

Standards::

ASTM D1230, FTMS 191-5908,CRF 16-1610

Gross Weight:

21kg

Highlight:

45 degree flammability test apparatus

automatic flammability testing equipment

flammability test apparatus with warranty

Payment & Shipping Terms

Minimum Order Quantity

Set/Sets

Price

pending

Delivery Time

Payment Terms

L/C, T/T

Supply Ability

ASTM E648 Flooring Radiant Heat Flux Test Apparatus

Get Best Price

Building Material Burning or Decomposition Smoke Density Test Apparatus

Get Best Price

45 Degree Automatic Flammability Test Apparatus

Get Best Price

Video

ISO11925 Flammability Testing Furnace Equipment for Evaluating Building Materials' Fire Retardant Properties

Get Best Price

86-769-26622869

Contact Now

Product Description

45 Degree Automatic Flammability Test Apparatus

Product Specifications

Attribute	Value
Spread time scope	0-99.99s
Firing time	1s or specified
Resolution	0.01s
Specimens clamp inside dimension	152×38mm
Dimension	540×410×300mm(L×W×H)
Flame height	15.875mm
Igniter model	comply to ASTMD1230
Power Supply	220V
Standards	ASTM D1230, FTMS 191-5908, CRF 16-1610
Gross weight	21kg

Product Description

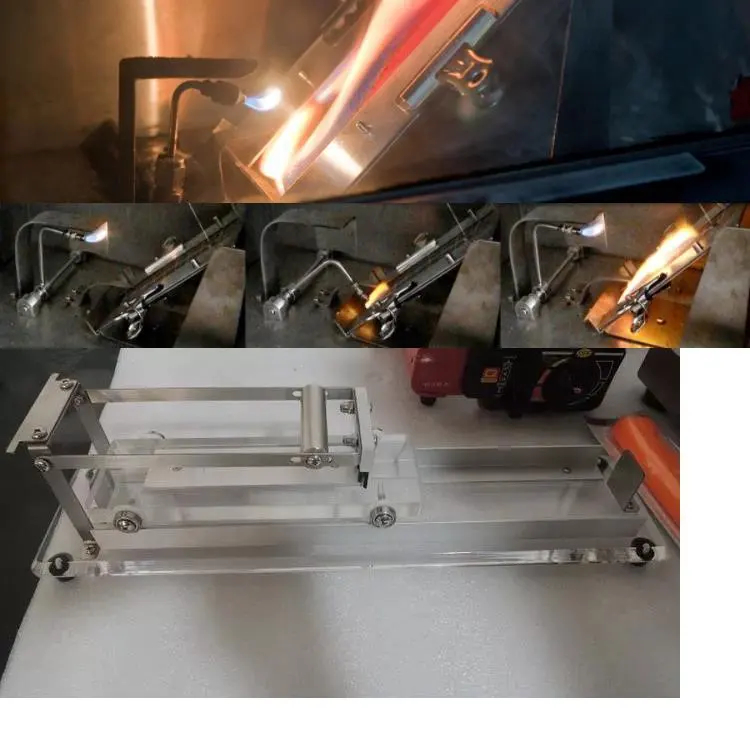

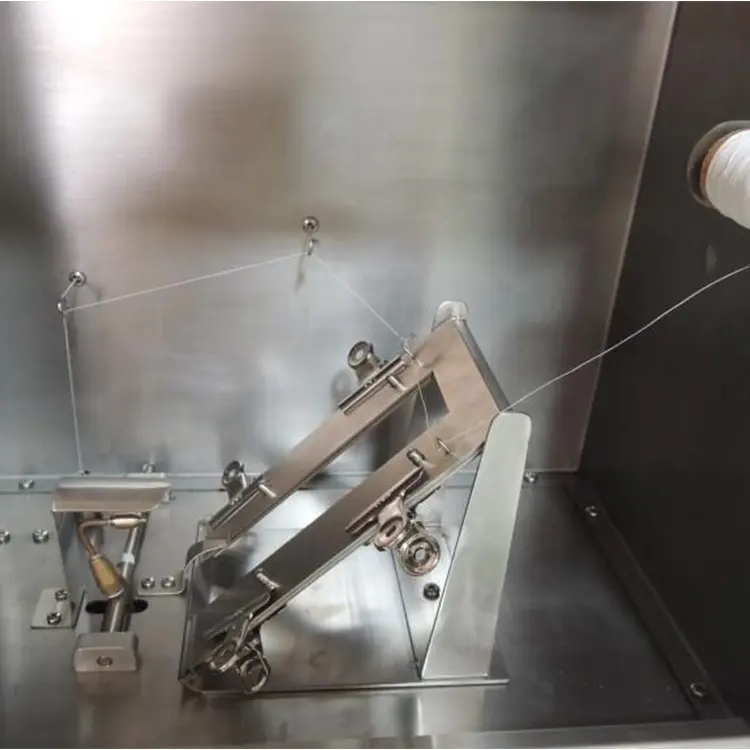

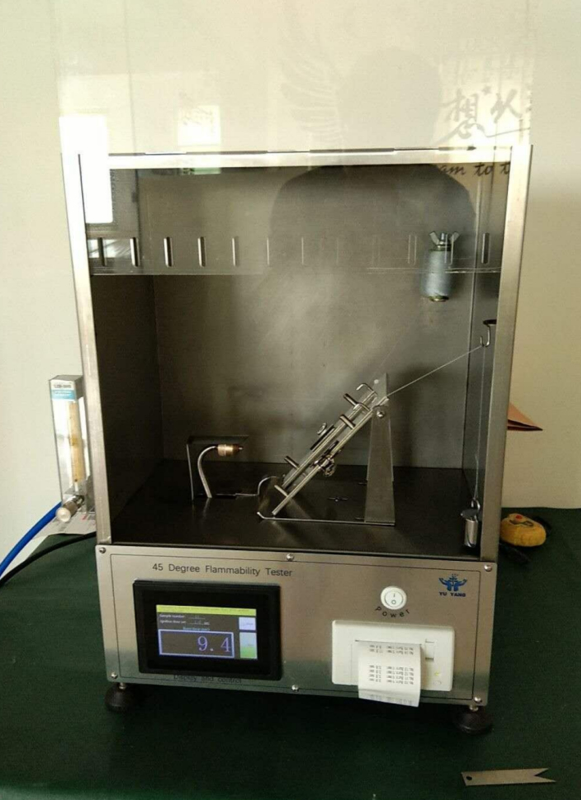

45 Degree Automatic Flammability Tester GT-C32

Application

45 Degree Flammability Tester is used to determine the burning characteristics of textiles fabric under controlled conditions. This test method covers the evaluation of the flammability test of textile fabrics as they reach the consumer for or from apparel other than children's sleepwear or protective clothing.

Standards

ASTM D 1230, ASTM F963, 16 CFR -1610, CALIF TB 117, CAN/CGSB 4.2 No 27.5, GB/T 14644

Parameters

Manual firing device, including sample holder and brushing device
Spread time scope: 0-99.99s
Firing time: 1s or specified
Resolution: 0.01s
Specimens clamp inside dimension: 152×38mm
Flame height: 15.875mm
Dimension: 540×410×300mm(L×W×H)
Igniter model: comply to ASTMD1230
Power Supply: 220V
Accessories: clamps 4pcs, weights, calibration plate 1pcs, Flame Gauge 1pcs

Features

Rotating cycle number can be pre-settable. Also, length of chain is adjustable
Inclined plane flammability tester stop automatically after getting the preset rotating cycles
45 degree flammability tester inclined flammability tester to ensure the testing accuracy and extend the service life, the nail hammer was made up of platinum steel
