Fabric Rotary Abrasion Tester Taber Abrasion Tester Testing Equipment

Fabric Rotary Abrasion Tester Taber Abrasion Tester Testing Equipment

fabric rotary abrasion tester

Taber abrasion testing equipment

textile abrasion tester with warranty

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE

Model Number:

YY846

Contact Us
Request A Quote
Fabric Rotary Abrasion Tester Taber Abrasion Tester Testing Equipment Fabric Rotary Abrasion Tester Taber Abrasion Tester Testing Equipment Fabric Rotary Abrasion Tester Taber Abrasion Tester Testing Equipment Fabric Rotary Abrasion Tester Taber Abrasion Tester Testing Equipment
Product Details
Outer Diameter::
113mm
Inner Diameter:
8mm
Abrasion Wheel:
52mm
Rotating Speed:
70±1rpm/60±1 Rpm
Counter:
LCD,0~999999
Specimens And Dust Collection Mouth Distance:
3mm (adjustable)
Dimension::
530×320×310mm（L×W×H）
Weight::
18kg (no Include Vacuum Cleaner)
Standards:
ISO5470, ASTMD3884
Highlight:

fabric rotary abrasion tester

,

Taber abrasion testing equipment

,

textile abrasion tester with warranty

Payment & Shipping Terms
Minimum Order Quantity
Set/Sets
Price
pending
Packaging Details
530×320×310mm（L×W×H）
Delivery Time
5
Payment Terms
L/C, T/T
Supply Ability
20
RELATED PRODUCTS
Good price High Precision Sensitivity Automatic Industrial Metal Detector Machine for Food Meat Vegetables Fish online Video

High Precision Sensitivity Automatic Industrial Metal Detector Machine for Food Meat Vegetables Fish

Get Best Price
Good price Highly Sensitive Textile Testing Equipment for Metal Detection in Food and Medicine online Video

Highly Sensitive Textile Testing Equipment for Metal Detection in Food and Medicine

Get Best Price
Good price Advanced Technology Textile Testing Equipment for Detecting Metals in Moisture and Frozen Products online Video

Advanced Technology Textile Testing Equipment for Detecting Metals in Moisture and Frozen Products

Get Best Price
Good price Fabric Textile Color Assessment Cabinet Matching Chamber Light Box for Inspection online

Fabric Textile Color Assessment Cabinet Matching Chamber Light Box for Inspection

Get Best Price
Contact Us
86-769-26622869
Contact Now
Product Description
Fabric Rotary Abrasion Tester Taber Abrasion Tester Testing Equipment
Product Specifications
Attribute Value
Outer diameter 113mm
Inner diameter 8mm
Abrasion wheel 52mm
Rotating speed 70±1rpm/60±1 rpm
Counter LCD, 0~999999
Specimens and dust collection mouth distance 3mm (adjustable)
Dimension 530×320×310mm (L×W×H)
Weight 18kg (no include vacuum cleaner)
Standards ISO5470, ASTMD3884
Product Description

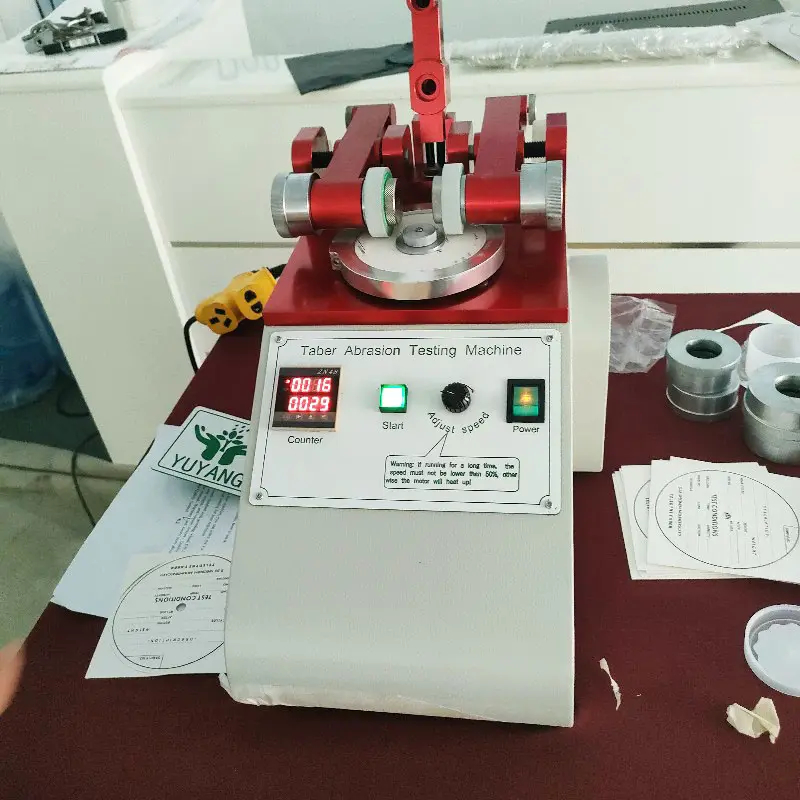

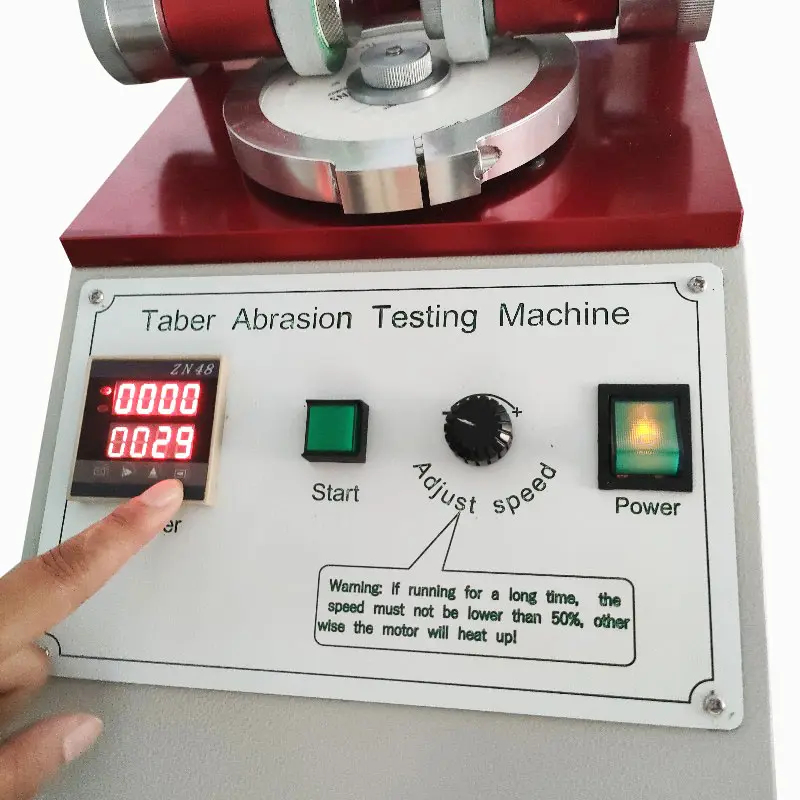

The Taber Abrasion Tester is designed to determine the wear resistance of various materials including fabrics, leather, rubber, paper, metals, paints, plated surfaces, coated materials, and glass.

Fabric Rotary Abrasion Tester Taber Abrasion Tester Testing Equipment 0
Key Features

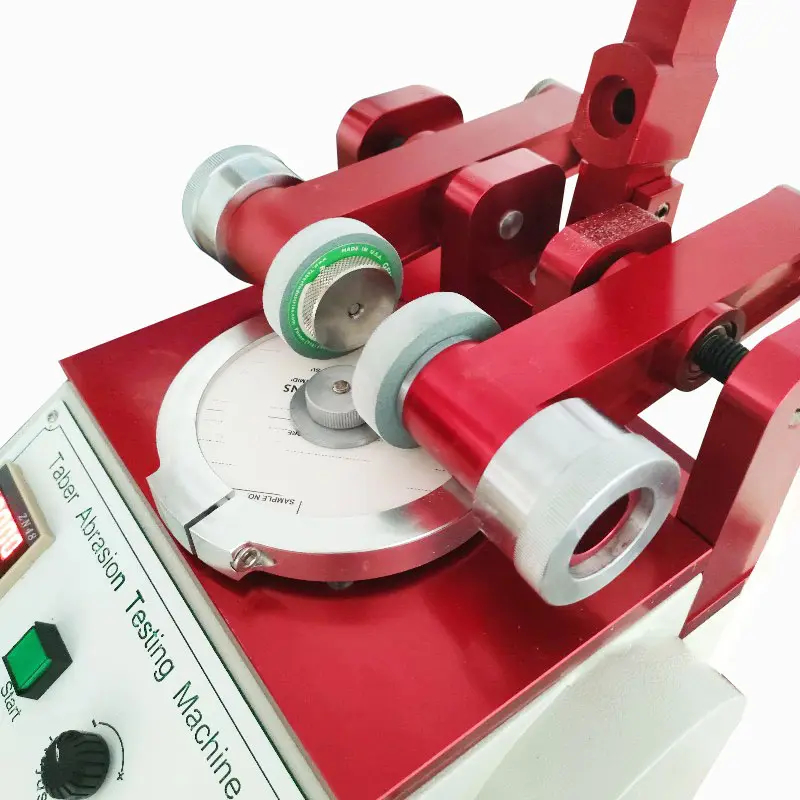

  • Uses X pattern of abrasion produced by rotary action of abrasive wheels
  • Includes full range of auxiliary weights, specimen holders, abrasive wheels, wheel refacer and vacuum unit
  • Grinding Wheel: Dia. 2inch
  • Wear Round Centre Spacing: 53.2mm
  • Gyration Speed: 60±1rpm
  • Counter: LCD, 0-999,999 times
  • Distance between sample to vacuum tube: 3mm
Included Accessories
  • 1 Vacuum cleaner
  • Grinding Wheel - CS-10 FROM US
  • Loading Weights - 6 pcs for 125cN, 250cN, 750cN
  • Paster - 1 Pack
  • Sand Paper - 10 Pcs
Available Models
YY022A Taber Abrasion Tester (Taber Abraser) - 1 Head
YY022B Taber Abrasion Tester (Taber Abraser) - 3 Head
Compliance Standards
ISO 5470, ASTM D3884, FED.CCC.5306 / 5309, TAPPI T476, DIN 53754 / 53799 / 53109
Fabric Rotary Abrasion Tester Taber Abrasion Tester Testing Equipment 1
Fabric Rotary Abrasion Tester Taber Abrasion Tester Testing Equipment 2
Fabric Rotary Abrasion Tester Taber Abrasion Tester Testing Equipment 3
Fabric Rotary Abrasion Tester Taber Abrasion Tester Testing Equipment 4
Fabric Rotary Abrasion Tester Taber Abrasion Tester Testing Equipment 5
