Name: Wire Bending Test Machine/ Plug Lead Bending Tester/ Plug Bending Tester
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY-5622
Price: 25,000.00 USD
Availability: InStock

Home > products > Wire Testing Equipment >

Wire Bending Test Machine/ Plug Lead Bending Tester/ Plug Bending Tester

wire bending test machine with warranty

plug lead bending tester for durability

plug bending tester for wire testing

Place of Origin:

China

Brand Name:

YUYANG

Certification:

Model Number:

YY-5622

Request A Quote

Wire Bending Test Machine/ Plug Lead Bending Tester/ Plug Bending Tester

Product Details

Test Rate:

10-60 Times/minute Adjustable

Bending Angle:

10°-180°/360° Adjustable

Stations:

Simultaneous Testing Of 6 Plugs At A Time

Bending Number:

0-999999 Can Be Preset.

Weight::

50\100\200\300\500g Each 6 Pcs.

Volume::

85*60*75cm

Weight:

100kg

Highlight:

wire bending test machine with warranty

plug lead bending tester for durability

plug bending tester for wire testing

Payment & Shipping Terms

Wire Bending Test Machine/ Plug Lead Bending Tester/ Plug Bending Tester

Get Best Price

Video

Latest 220V Electronic Spark Tester For Wire And Cable 1-Year Warranty On Insulation Wrap

Get Best Price

Video

Ventilation Type Aging Test Chamber For Wire Testing Equipment With Huge Tempered Glass Windows

Get Best Price

Video

Copper Wire Cable Spark Tester , 250-300mm/Min Elongation Testing Machine

Get Best Price

86-769-26622869

Contact Now

Product Description

Wire Bending Test Machine / Plug Lead Bending Tester / Plug Bending Tester

Technical Specifications

Attribute	Value
Test rate	10-60 times/minute adjustable
Bending angle	10°-180°/360° adjustable
Stations	Simultaneous testing of 6 plugs at a time
Bending number	0-999999 can be preset
Weight	50\100\200\300\500g each 6 pcs
Volume	856075cm
Weight	100kg

Product Description

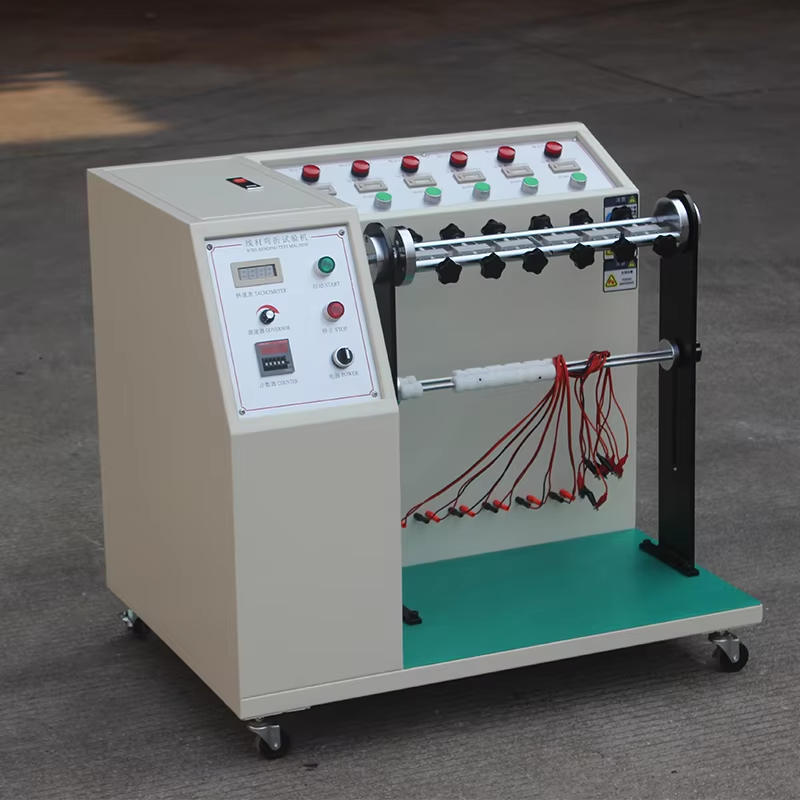

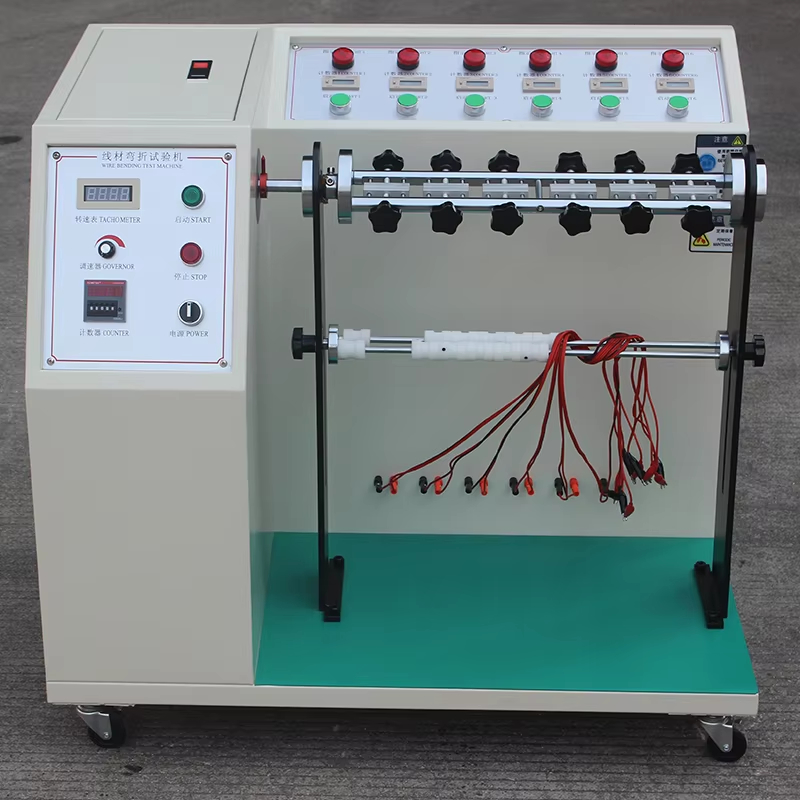

Wire And Cable Lead Bending Tester

This tester complies with UL817 and other relevant standards "General Safety Requirements for Flexible Cord Components and Power Cords". It is suitable for power cords and DC cords to conduct bending test by relevant manufacturers and quality inspection departments.

This machine specializes in testing plug lead wire and cable bending strength; speed using photoelectric sensors to collect signals transmitted to the digital display table, directly adjust the infinitely variable speed controller can be read out the value.

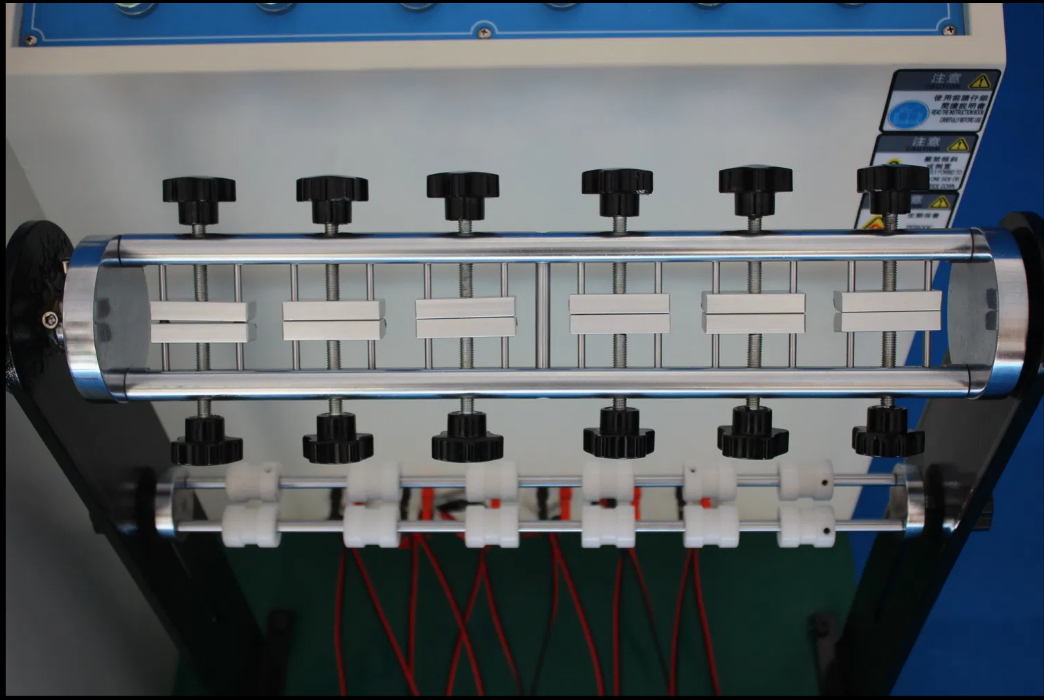

Test method: Test method is to fix the test material in the fixture, and add a certain amount of load, the fixture swaying left and right, after a certain number of times, to check the rate of breakage, or to the inability to energize the total number of times to view their counts, to be able to stop the work of their own movement.

Key Advantages

24 hours online

35 years experience

Sample chamber of each model

Best price, fast delivery

OEM, ODM

Oversea offices

Own import and export business license

ISO, CE, UL, ASTM, DIN, EN, GB, BS, JIS, ANSI, TAPPI, AATCC, IEC, VDE
