5000N Single Arm Computer Servo Tensile Strength Testing Machine ISO10319 & ISO12236

5000N Single Arm Computer Servo Tensile Strength Testing Machine ISO10319 & ISO12236

textile lab equipment

universal tensile machine

Place of Origin:

China

Brand Name:

YUYANG

Certification:

BS EN ISO 10319, BS EN ISO 12236

Model Number:

YY1311

Contact Us
Request A Quote
Product Details
Product Name:
Tensile Testing Machine
Usage:
CBR Puncture Resistance
Capacity:
5000N
Effective Test Width:
150mm
Effective Stroke:
500mm
Test Speed:
50-500mm/min
Size:
420×350×1520mm
Power:
220V±10% 0.2KW/0.4KW
Highlight:

textile lab equipment

,

universal tensile machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiation
Packaging Details
plywood case
Delivery Time
10-15 days
Payment Terms
Western Union, T/T, L/C,
Supply Ability
3 sets per month
Product Description

5000N Single Arm Computer Servo Tensile Strength Testing Machine ISO10319 & ISO12236



Description:



This tensile machine can do various tensile testing in the field of rubber, leather products, plastics, chipboards, foam, plastic, film, flexible packaging, pipes, textiles, geotextile and geosynthetics products, fibers, nanomaterial, polymers, composite materials, synthetic materials, packaging, paper, wire and cable, fiber optic cable, wire cables, seat belt, seat belt, leather belt, shoes, tape, polymer, copper, spring steel wire, stainless steel, castings, brass, non-ferrous metals, car parts, alloys and other non-metallicmaterials and metallic materials tensile, compression, bending, tearing, and 90 ° peel, 180 ° peel, shear adhesion, pull-out strength, an extension of the elongation test.



Use Multi-threaded parallel processing make the software can display “Force-Displacement”, “Force-Time” , “Displacement-Time” and “Stress-Strain” curves simultaneously, so you can switch to any graph which you want to see and check the user settings.



Opening testing results edit method make user get any wanted test data. Up to 400 (such as maximum force,minimum force,fracture force,peel strength,tensile strength,shear strength,tear strength,maximum deformation,yield strength,elongation,elastic modulus,ring stiffness,non-proportional elongation,minimum force range,average force range and elongation under constant force) can be called by user.



Standards:



BS EN ISO 10319,BS EN ISO 12236 CBR Puncture Resistance

Standard accessories:

BS EN ISO 10319 Tensile strength fixtures 1 set,BS EN ISO 12236 plunger, clamping system

Computer test software 1 set,

English manual book 1 pcs.





Specification:



Capacity

500KG (5000N)

Effective load range

0.4%~100%

Load accuracy

±0.5% of value

Display

Computer Test Software

Units

Kg,lb,N

Data sampling frequency

200times/sec

Load solution

1/±250000 of max load

Load sensor

Pull and press sensor(max load)

Effective test width

150mm

Effective stroke

500mm

Test speed

50-500mm/min

Displacement accuracy

±0.5%

Returning function

Manual or automatic two option, after test the up fixture will return to the initial position

Safety device

Electronic process for limit procession

Overload protection

If 10% over than max load,machine will automatic stop for protection

Result print

Outside printer that connect to computer

Grip

Tensile fixture 1 set

Machine Size

420×350×1520mm

Machine weight

Approx. 50 Kg

Power

220V±10% 0.2KW/0.4KW



















































Net weight: 75KG, Gross weight: 95KG; Plywood box size: 50*45*160cm



Accessories:



Grips:

1) Tensile strength Test

5000N Single Arm Computer Servo Tensile Strength Testing Machine ISO10319 & ISO12236 0



2) Tear strength Test

5000N Single Arm Computer Servo Tensile Strength Testing Machine ISO10319 & ISO12236 1



3) Resistance to seam slippage Test:

5000N Single Arm Computer Servo Tensile Strength Testing Machine ISO10319 & ISO12236 2



BS EN ISO 10319 clamping system      BS EN ISO 12236 clamping system

5000N Single Arm Computer Servo Tensile Strength Testing Machine ISO10319 & ISO12236 3                    5000N Single Arm Computer Servo Tensile Strength Testing Machine ISO10319 & ISO12236 4



Clamp for extensometer:

5000N Single Arm Computer Servo Tensile Strength Testing Machine ISO10319 & ISO12236 5

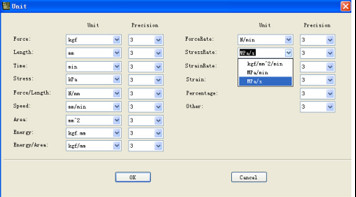

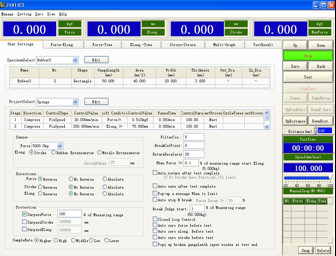

Software operation guide manual:

5000N Single Arm Computer Servo Tensile Strength Testing Machine ISO10319 & ISO12236 6



5000N Single Arm Computer Servo Tensile Strength Testing Machine ISO10319 & ISO12236 7
