Place of Origin:
CHINA
Brand Name:
YUYANG
Certification:
GB/T16491
Model Number:
YYD03

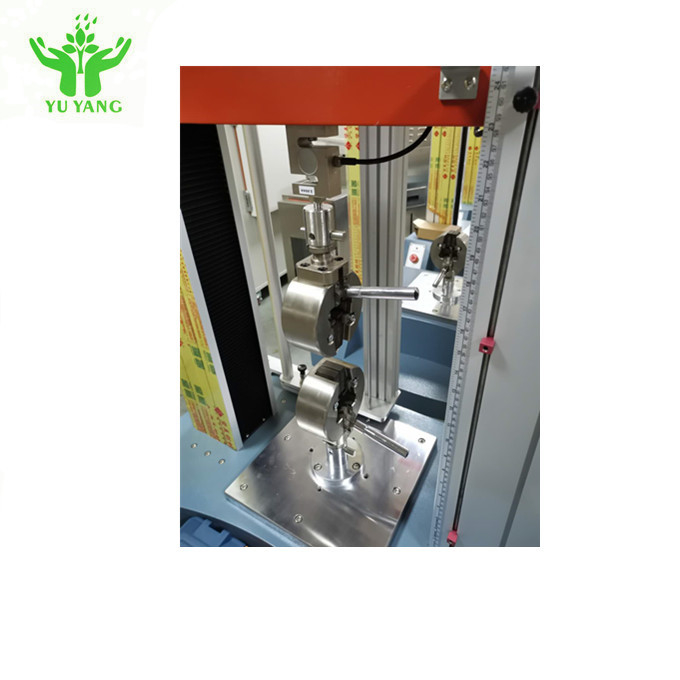

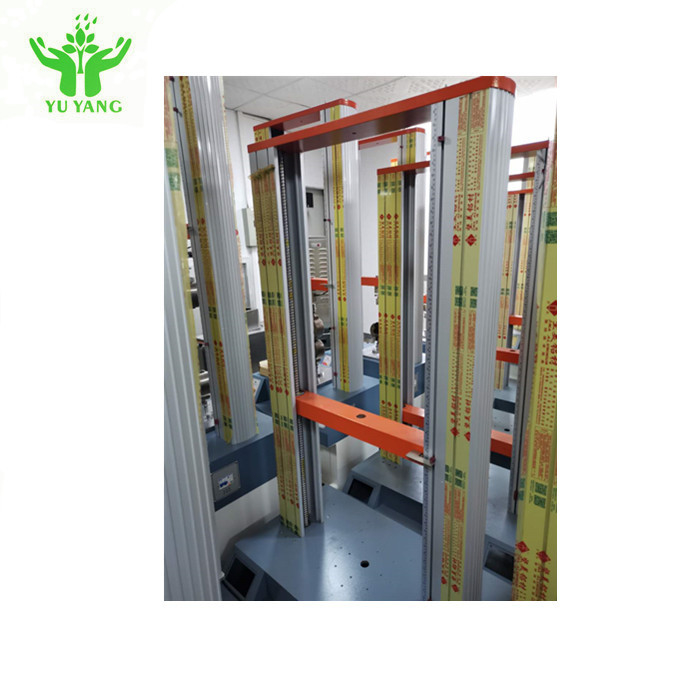

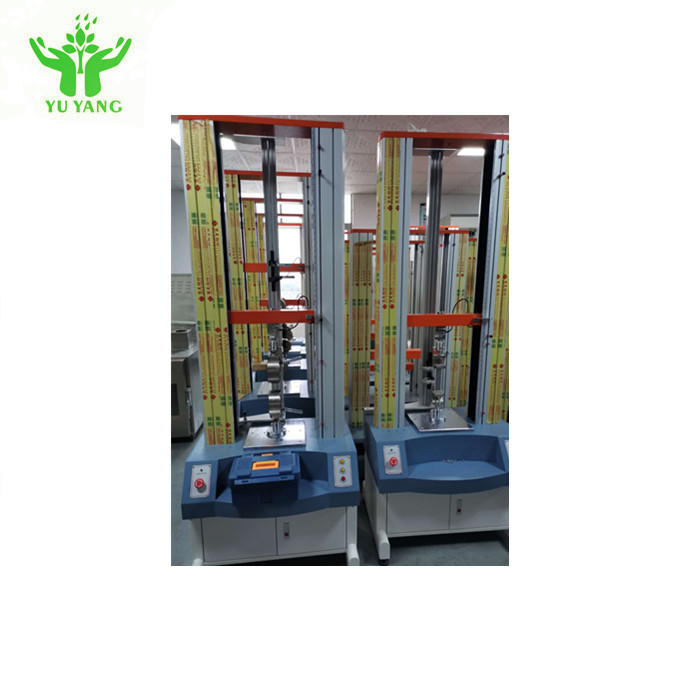

YUYANG Multifunction Tensile Testing Machine Tensile Tester In Stock
Product Description:
Computer Control Paper Tear Tensile Strength Testing Machine is a new material testing machine that combined with the electronic technology and mechanical transmission, it has accurate load speed, range of force measurement, Has high accuracy and sensitivity for the load, displacement measurement and control. This series of machine using singlespace structure, operational space at the bottom,it is mainly applied to test nonmetallic and metallic material ,which the load is less than 1kN, it has the parameters, such as stress,strain, control mode of displacement ,calculated max force, tensile strength, bending strength, compressive strength,elastic modulus, rate of elongation, yield strength and others.
Main features:
1. Adopt Panasonic servo motor,the beam moves up and down to test the load through the transmission.
2. The whole control system is safe and high reliability.
3. Microcomputer control the whole testing process, real-time dynamic display the load values, displacement
values, deformation,testing speed and testing curves.
4. Microcomputer for data processing and analysis, testing results can be saved automatically, testing curvers
can be transferred out after the test, you can know the testing process through the testing curvers, or compare
with others curves, or amplify the curvers.
5. the testing software of the Window, with strong processed capabilities of data and graphics, it can
immediate print out a complete testing report and testing curves.
6. Has limit protection, overload protection, emergency stop and other safe protective functions.
Applicable Industry:
Computer Control Paper Tear Tensile Strength Testing Machine is widely used in wire and cable, hardware, electronic and
electrical equipment, packaging, printing, medical equipment, auto parts, textiles and leather, clothing, shoes,
rubber and plastic products, colleges and universities; research laboratories; inspection arbitration, technical
supervision departments and many other industries, it is the basic equipment for quality management and
physical tested..
Technical Parameters:
Model | Computer Control Paper Tear Tensile Strength Testing Machine |
Maximum load | 50N,100N,200N, 500N, 1KN,2KN(optional ) |
Accurate grade | 1grade / 0.5 grade |
Effective measuring range | Force from 0.2% to 100% / from 0.4% to 100% |
Measuring accuracy | the value ±1% / the value ±0.5% |
Tester resolution | Max load: 1/200000, constant the resolution |
Load sensor | Basic configuration sensor max load: one |
Effective tensile stroke | 400, 500mm (can be increased the tensile space according to customers requirement ) |
Testing speed | From 0.001 to 500mm/min |
Accruacy of displacement measurement |
Tolerance:±0.5% / tolerance: ±0.2%
|
