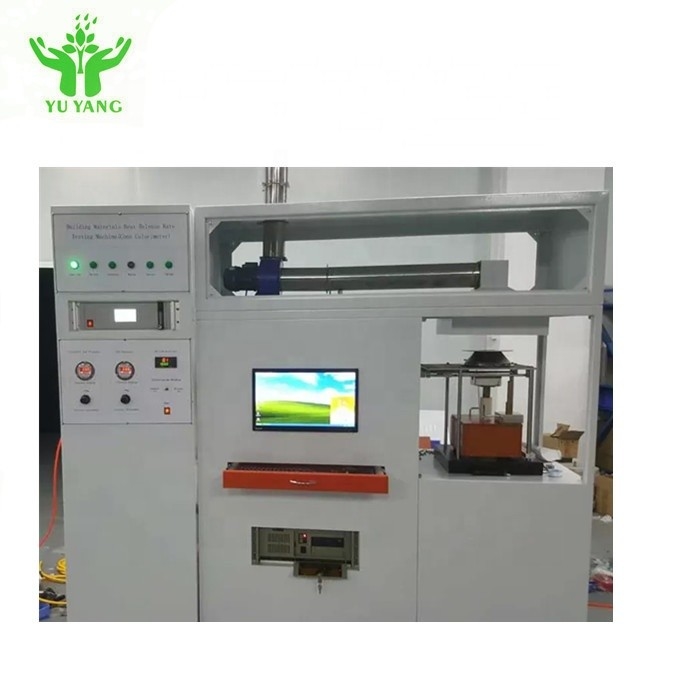

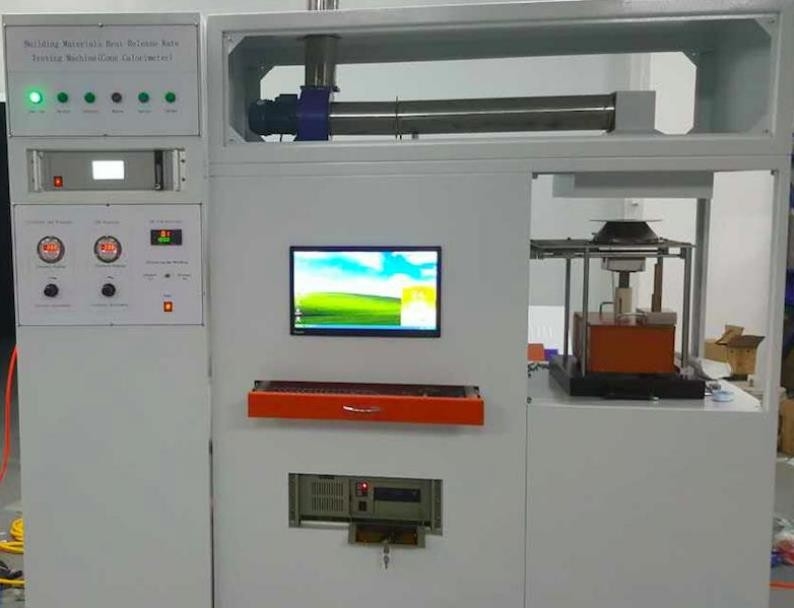

ISO5660 Heat Release Rate Flammability Testing Equipment For Building Material 0-45C

ISO5660 Heat Release Rate Flammability Testing Equipment For Building Material 0-45C

ISO5660 Heat Release Rate Flammability Testing Equipment For Building Material 0-45C
ISO5660 Heat Release Rate Flammability Testing Equipment For Building Material 0-45C
ISO5660 Heat Release Rate Flammability Testing Equipment For Building Material 0-45C
Product Details:
Place of Origin: China
Brand Name: YUYANG
Certification: YY501
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: $22500
Packaging Details: Wooden Box
Delivery Time: 7-30 Days
Payment Terms: T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Product Name: Cone Calorimeter Measuring Range: 0-25%
Signal Output: 4-20mA Response Time: ≤2S
Ambient Temperature: 0-45 ℃ Relative Humidity: <90% (non-condensing)
Control Chamber Dimension: L700 * W600 * H1920mm Test Chamber Dimension: L1680 * W700 * H2410mm
Power Supply: AC 380V 50HZ; Total Power: 6KW
High Light:

ISO5660 Flammability Testing Equipment

,

Building Material Flammability Testing Equipment

,

45C heat release rate tester

ISO5660 Building Material Heat Release Rate Flammability Testing Equipment



Description:

The Cone Calorimeter is the most significant bench scale instrument in the field of fire testing.
Heat release is the key measurement required to assess the fire development of materials and products. Traditionally it has been very difficult to measure and more recently full scale testing of items (e.g. furniture) has been possible by burning these articles and measuring the evolved heat using a technique called oxygen depletion calorimetry.
The Cone Calorimeter has been produced to meet all existing Standards (including ISO 5660, ASTM E1354, ASTM E1474, ASTM E1740,ASTM F1550, ASTM D6113, CAN ULC 135 and BS 476 Part 15) and can also be purchased in modular form so that those laboratories with particular interests such as heat release, mass loss, smoke production, etc. can initially purchase the sections they require and later add further instrumentation into the same cabinets in order to complete a full specification instrument. This is just one of the advantages of the Cone Calorimeter.

Application:

Combustion product stream through the oxygen concentration of the oxygen consumption and calculate the heat release rate, heat release rate of the material is also the material properties of the combustion products of the combustion burner of the most important parameters, more accurately measure the material during combustion heat release rate, for predicting fire hazard prevention and fire-retardant treatment is extremely important.

Standards:

ISO 5660 : Reaction-to-fire tests -- Heat release, smoke production and mass loss rate.
ASTM E1354 : Standard Test Method for Heat and Visible Smoke Release Rates for Materials and Products Using an Oxygen Consumption Calorimeter.
BS 476: PART 15: Fire tests on building materials and structures.. Part 15: Method for measuring the rate of heat release of products.
GB/T 16172-2007: Test method for heat release rate of building materials
ASTM E1354 Fire Testing Equipment ISO 5660 Heat Release Rate Cone Calorimeter

A full system consists of:

1. Conical Heater - is wound in the form of a truncated cone, rated 5000 W at 230 V with a heat output of 100 kW/m2.
2. Facility for testing horizontally or vertically orientated specimens
3. Temperature control by the use of a 3 type K thermocouples and a 3-term (PID) temperature controller.
4. A Split Shutter Mechanism - protects the sample area before the test. This ensures the initial mass measurement is stable and the operator has additional time for system checks before starting the test. This added time is very important for easily-ignitable samples, which often ignite prematurely if a shutter mechanism is not used.
5. Specimen Holders - for specimens 100mm x 100mm up to 50mm thick, in the horizontal and vertical orientation.
6. Load Cell - mass measurements are conducted via a strain gauge load cell with an accuracy of 0.01g. Fitted with a quick electronic tare facility and mechanical stops to avoid movement damage, give stable results and long life.
7. Spark Ignition - by 10 kV spark generator fitted with a safety cut-out device. The igniter is automatically positioned by a lever linked with the shutter mechanism.
8. Exhaust System - manufactured from stainless steel for long life. This comprises, hood, gas sampling ring probe, exhaust fan (with adjustable flow controls from 0-50g/s, at a resolution of at least 0.1g/s) and an orifice plate flow measurement (thermocouple and differential pressure transducer). Normal operation is at a nominal 24 l/s.
9. Gas Sampling - comprising particulate filters, refrigerated cold trap, pump, drying columns and flow control.
10. Oxygen Analysis - paramagnetic oxygen analyser, which has a range of 0-25% and a performance compliant with the standards.
11. Smoke Obscuration - measured with a laser system, using photodiodes, and a 0.5 mW Helium Neon laser, with main and reference (compensating) photo detectors. Supplied with alignment cradle and 0.3, 0.8 neutral density filters for calibration.
12. Heat Flux Meter - for setting the irradiance level at the surface of the specimens.
13. Calibration Burner - to calibrate the rate of heat release measured by the apparatus using methane of 99.5% purity.
14. Data Acquisition – Agilent Data Acquisition / Switch Unit featuring a 3-slot cardcage with 6½ digit (22 bit) internal DMM enabling up to 120 single-ended or 48 double-ended measurements. Scan rates up to 250 channels/s are available with a 115kbaud RS232 and PCI GPIB interface as standard. All readings are automatically time stamped and can be stored in a non-volatile 50,000-reading memory.

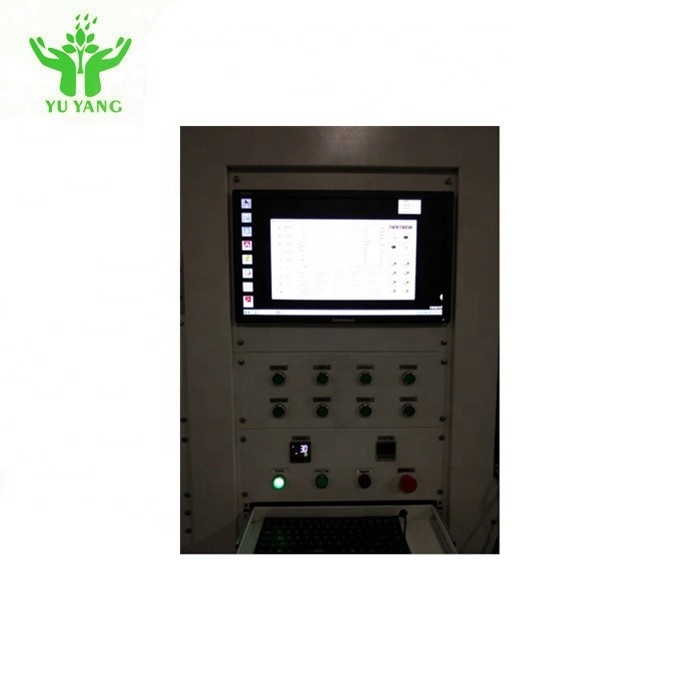

15. ConeCalc Software – it is available in multi-languages including English, French, German, Spanish and Japanese. The user interface is a Microsoft Windows based system with “user friendly” push button actions and standard Windows data entry fields,drop down selectors, check boxes and switches capable of:-
Showing the status of the instrument
Calibrating the instrument and storage of calibration results
Collecting data generated during a test
Calculating the required parameters
Presenting the results in a manner approved by the Standards
Averaging of multiple tests
Exporting data into FDMS (Fire Data Management System) - a format used by major European and US labs for sharing data between labs with different calorimeters.
Exporting file for CSV (comma separated variable) files for quick transfer to spreadsheets.
Main Paramaters:
Measuring range:
0-25%
Signal output:
4-20mA
Response time:
≤2S
Ambient temperature:
0-45 ℃
Relative humidity:
<90% (non-condensing)
Zero drift: 0.05% O2
0.05% O2 (one week)

Options:

Carbon Dioxide and Carbon Monoxide - NDIR gas analysers optionally available.
Hydrogen Chloride - heated supply lines and gas analyser.
Controlled Atmosphere Attachment - for low oxygen sample analysis.
Mass Loss Calorimeter
FTIR Toxicity Test System
Protection Doors - to screen the operator from smoke generated by hazardous samples. The doors allow normal air influx from the bottom for natural test area ventilation and test air input. The protection doors enclose three sides of the test area, a steel panel covers the rear, the exhaust covers the top, and the test area floor covers the base.
