| Place of Origin: | China |
| Brand Name: | YUYANG |
| Certification: | ISTA 1A, ASTM D999 |
| Model Number: | YY037 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plywood Case |
| Delivery Time: | 15-20 work days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2 sets per month |
| Capacity: | 500kg, 1000kg, 2000kg, 5000kg Or Customize | Resolution: | 1/100,000 |
|---|---|---|---|
| Correctness Of Force: | Better Than ±1% | Correctness Of Distortion Reading: | Better Than ±1% |
| Effectual Range Of Testing Force: | 1~100%F.S | Unit: | Kgf,gf ,N,kN,lbf |
| Test Space: | 1000×1000mm (can Customize) | Space Between Platen: | 1000mm (can Customize) |
| Test Speed: | 0.01~500mm/min, Keyboard Inputing | Return Speed: | 500mm/min |
| High Light: | Servo Control Package Testing Equipment,50KN Packaging Testing Instruments,20KN Packaging Testing Instruments |
||

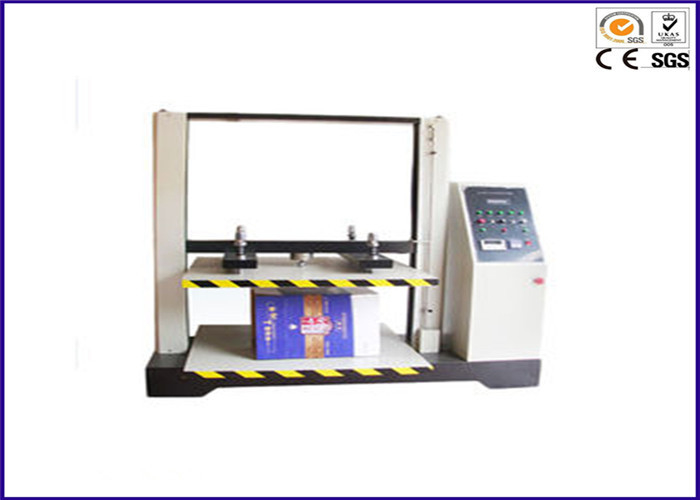

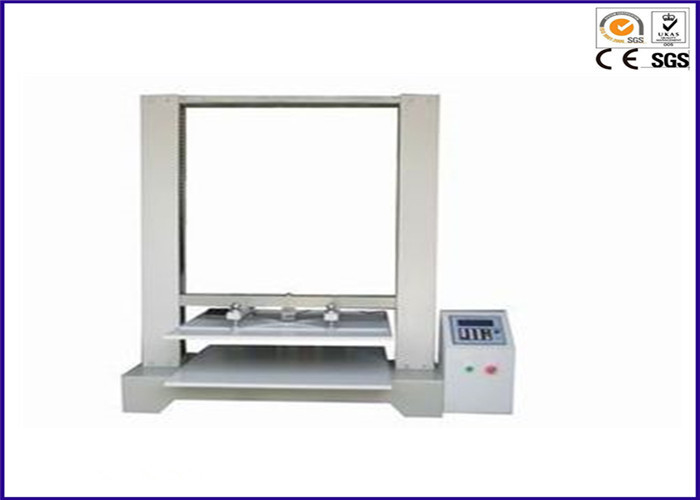

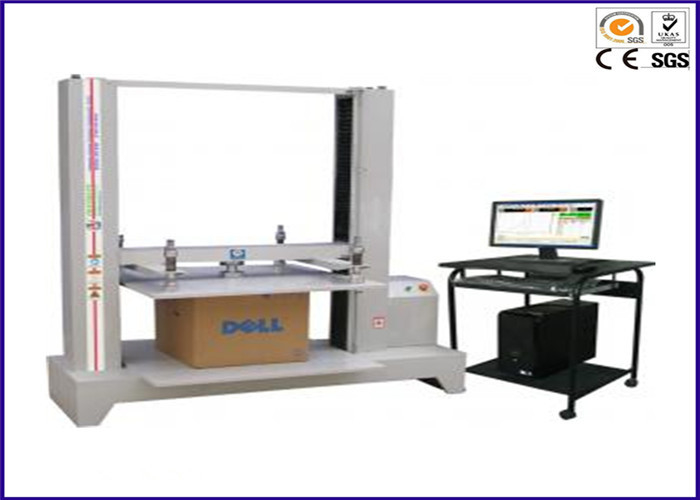

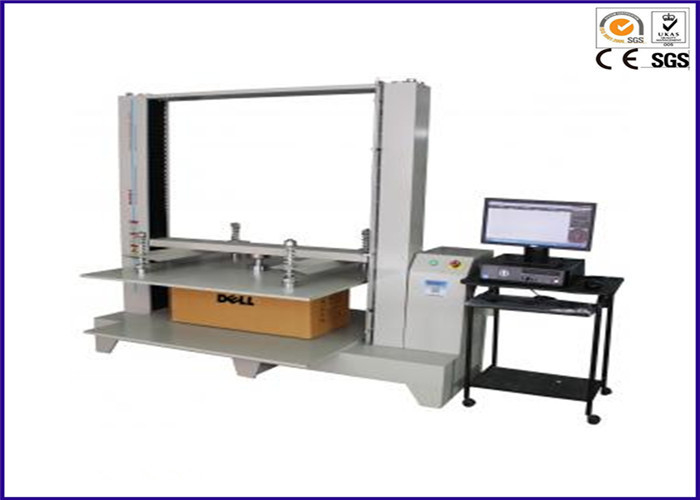

Compression Package Testing Equipment 10KN 20KN 50KN Servo Control
Application:
Apply for compression resistance, deformation, stacking test of package container such as corrugated paper box and honeycomb box, and also the wooden package box.
Test standards:
GB/T4857.4, GB/T4857.16, ISO2872, ASTM D642, TAPPI-T804, JIS-Z0212.
Brief Introduction:
Computer Control Box Compression Tester used for measuring the pressure strength of cartons, containers, etc, for inspecting the pressure-resistance and strike- endurance of packing materials during transportation or carry.
Characteristics:
1 Adopting windows platform, all the parameter settings can be processed in the dialog box, and it operates easily.
2. Using a single-screen operation, do not need to switch the screen.
3. with three languages in simplified Chinese, traditional Chinese and English, the software interface can be switched easily.
4. Choosing translational, overlapping mode at the same time to make sure a number of curve date comparison.
5. With a variety of measurement units, measure in imperial and metric are switchable.
6. Also, this paper tube compression test equipment has automatic magnification function, in order to achieve the most appropriate size of the graphics.
7. With an advanced design of machine structure which have strong rigidness and small volume but light weight.
8. It can do test of compression strength, stack strength and peak value.
Specifications:
| Capacity | 500kg, 1000kg, 2000kg, 5000kg or customize |
| Resolution | 1/100,000 |
| Correctness of force | Better than ±1% |
| Correctness of distortion reading | Better than ±1% |
| Effectual range of testing force | 1~100%F.S |
| Unit | kgf,gf ,N,kN,lbf |
| Test space | 1000×1000mm (can customize) |
| Space between platen | 1000mm (can customize) |
| Drive System | servo system,precision ball screw, DC variable speed drive system |
| Test speed | 0.01~500mm/min, keyboard inputing |
| Return speed | 500mm/min |
| Power | 1φ,220V±10% 50Hz |
| Stop mode | Set limits of security, urgent stop key, programable force and elongation setting, specimen damage sensing |
FAQ
1. who are we?
We are based in Guangdong, China, start from 2018,sell to Southeast Asia(11.00%),Eastern Asia(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),Northern Europe(9.00%),South Asia(9.00%),North America(7.00%),South America(7.00%),Western Europe(7.00%),Eastern Europe(6.00%),Mid East(6.00%),Oceania(5.00%),Central America(3.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Testing Equipment/Tensile Testing Machine/Environmental Test Chamber/Fire Testing Equipment,Induction Heating Machine
4. why should you buy from us not from other suppliers?
We are a high-tech enterprise which is specialized in developing and manufacturing Fire Testing Equipment, Building Material Fire Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
Certification

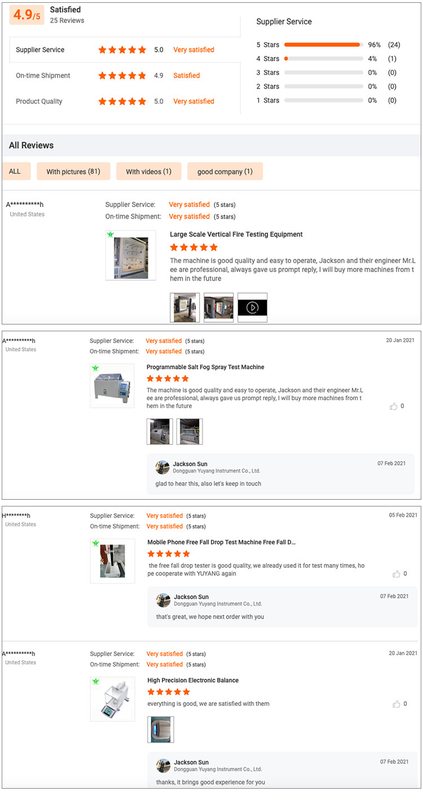

Customer Evaluation
