Name: 4-Head Martindale Abrasion & Pilling Test Equipment Textile Laboratory Tester
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY001
Price: 2,502.00 USD
Availability: InStock

Home > Products > Textile Testing Equipment >

4-Head Martindale Abrasion & Pilling Test Equipment Textile Laboratory Tester

4-head Martindale abrasion tester

textile pilling test equipment

laboratory textile abrasion tester

Place of Origin:

China

Brand Name:

YUYANG

Certification:

Model Number:

YY001

Request A Quote

4-Head Martindale Abrasion & Pilling Test Equipment Textile Laboratory Tester

Product Details

Testing Head:

4 (or 6 And 8 Head Could Be Selectable)

Display:

LED

Accumulate Count:

1~999999

Dimensions (L X W X H):

880×600×410mm

Power Supply:

AC380V, 180W Or AC220V, 180W

Wear Resistance Test:

φ28.8mm

Cloth Sample Hammer:

395 ± 2g

Furniture Decorations Specimen Hammer:

594 ± 2g.

Pilling Performance Test:

φ90mm

Relative Velocity:

50 R / Min

Gross Weight:

124KG

Highlight:

4-head Martindale abrasion tester

textile pilling test equipment

laboratory textile abrasion tester

Payment & Shipping Terms

Minimum Order Quantity

Set/Sets

Price

pending

Delivery Time

Payment Terms

L/C, T/T

Supply Ability

500kg Material Tensile Machine Unidirectional And Bidirectional Stretching

Get Best Price

Video

Food Safety Detector Multifunctional Food Laboratory Rapid Inspection Equipment Additive Heavy Metal Detector

Get Best Price

Video

High Precision Sensitivity Automatic Industrial Metal Detector Machine for Food Meat Vegetables Fish

Get Best Price

Video

Highly Sensitive Textile Testing Equipment for Metal Detection in Food and Medicine

Get Best Price

8613825729462

sales03@yuyangtest.com

86-769-26622869

Contact Now

Product Description

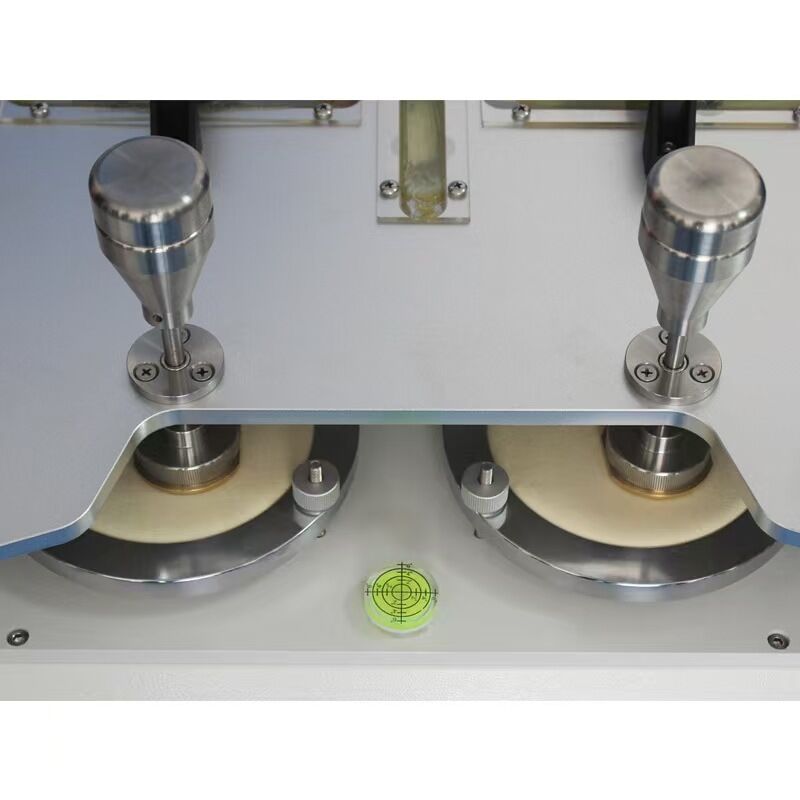

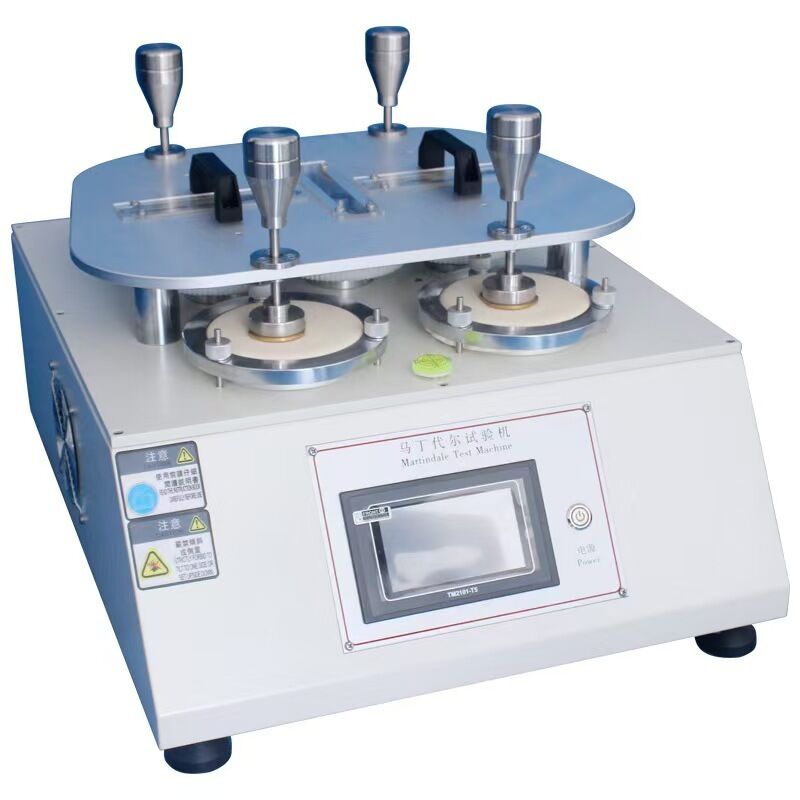

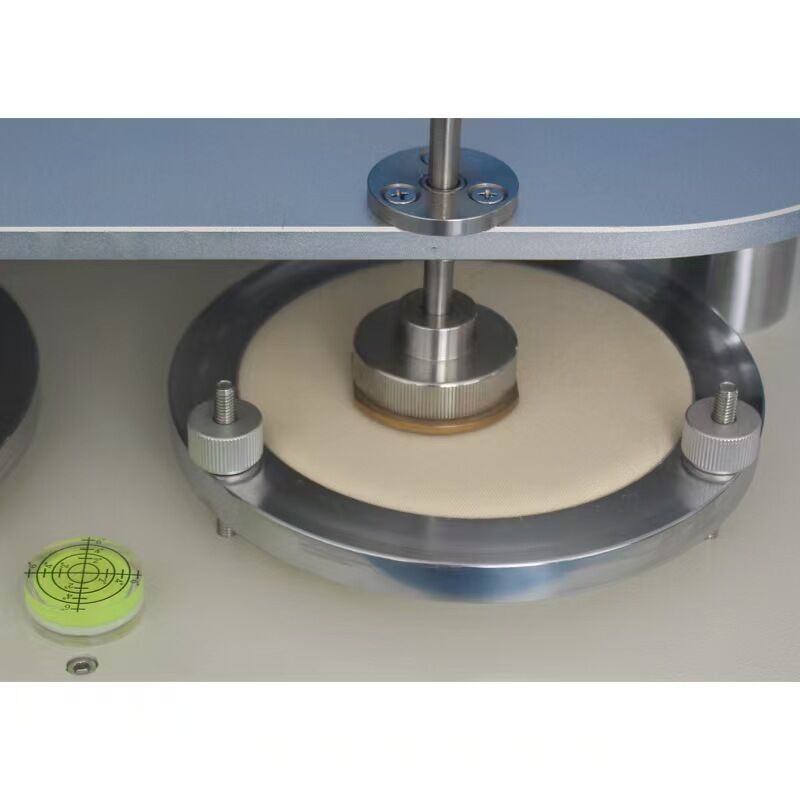

4-Head Martindale Abrasion & Pilling Test Equipment Textile Laboratory Tester

Product Overview

ISO 12947-2 Martindale Abrasion and Pilling Tester for Textile Resistance Testing Machine designed to determine the abrasion and pilling resistance of all kinds of textile structures. Samples are rubbed against known abrade at low pressures and in continuously changing directions, with results compared against standard parameters.

The tester is equipped with electronic preset batch counter, timer and pooled sample clips and load device, compatible with international testing standards.

Technical Specifications

Attribute	Value
Testing Head	4 (or 6 and 8 head could be selectable)
Display	LED
Accumulate count	1~999999
Dimensions (L x W x H)	880×600×410mm
Power supply	AC380V, 180W or AC220V, 180W

Pressurized Material Weight

Wear resistance test: Clamps component 200 ± 1g, cloth sample hammer 395 ± 2g, furniture decorations specimen hammer 594 ± 2g
Pilling test: Gripper assembly 155 ± 1g, heavy punch 260 ± 1g
Relative velocity: 50 r/min

Main Features

Learns from advantages of domestic and foreign similar equipment's design

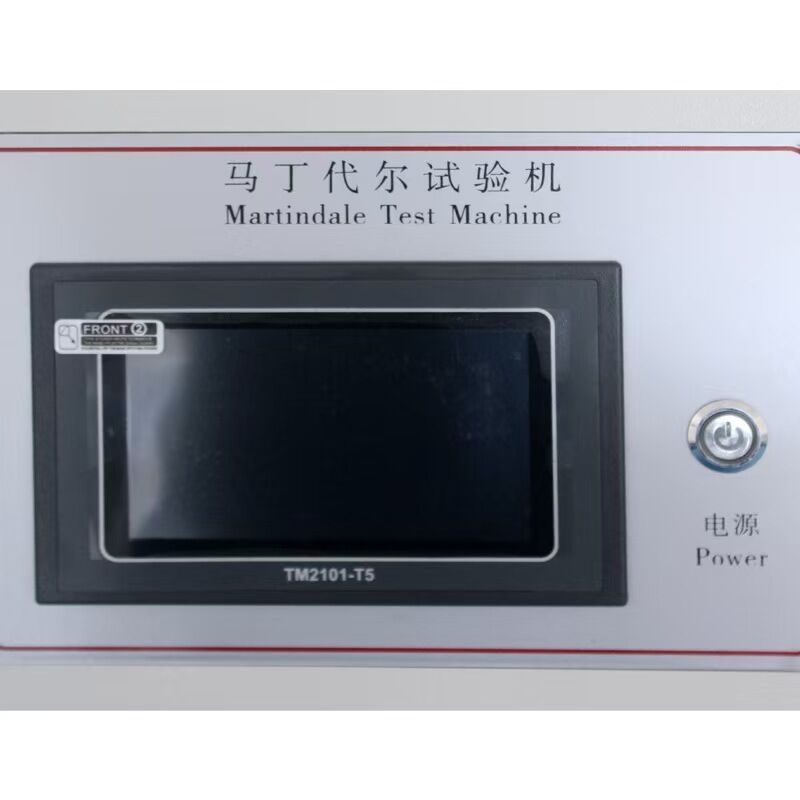

Elegant appearance with touch display screen
User-friendly interface, easy to operate
Computer system uses two counting methods
8 station testing simultaneously to improve test efficiency
Two kinds of lissajous trajectories: 24mm x 24mm and 60.5mm x 60.5mm
Multiple trajectory matching accessories to adapt to various test method standards

Compliance Standards

BS 3424/5690
IWTO 40-88
BS EN 388/530
IWSTM 112/196
ASTM 4966/4970
IS 12673
JIS L1096
SFS 4328
PR EN ISO 12947-1
PR EN ISO 12945-2
SATRA TM31
ISO 20344

Standard Accessories

Ballot sheet: 1pcs
Bowl shape specimen kit: 1pcs
O-rings: (4,6,8)
Abrasion weights kit: (4,6,8)
Pilling weights kit: (4,6,8)
Power line: 1pcs

Optional purchase consumables: wool fabric, felt, sponge, EMPA, scale, SM50 scales

Manufacturer Information

DONGGUAN YUYANG INSTRUMENT CO., LTD is located in Xinhe Industrial Area, Wanjiang District, Dongguan City. Also YUYANG INDUSTRIAL CO., LIMITED is our private-owned cooperation in HK.

By supporting from Mechanical CNC and Software R&D core team of YUYANG Manufacturing engineering institute, YUYANG specializes in producing and R&D for flammability testing machine, textile testing machine, toys testing equipment, Footwear Testing Equipment.

Continue the advanced design technology and concept, excellent technology of producing and outstanding system of quality management, YUYANG aims at "manufacture carefully, service by heart" devoting the best products, counseling and service to schools, manufacturing enterprise, and third party testing industry.

Key Customers Include: SGS in France, SGS in Vietnam, SGS in China, SGS in Korea, Intertek in China, SAT in China, BACL in Shenzhen, NSF in Shanghai, ITS, BV, TUV etc.

The quality proves value; the effort brings success. What your concerning is our struggling all the time...
