Name: ASTM PS79-96 Snap Button Motorized Push and Pull Tester With Tension Meter
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY846
Price: 2,502.00 USD
Availability: InStock

Home > products > Textile Testing Equipment >

ASTM PS79-96 Snap Button Motorized Push and Pull Tester With Tension Meter

ASTM PS79-96 snap button tester

motorized push pull tension meter

textile testing equipment with warranty

Place of Origin:

China

Brand Name:

YUYANG

Certification:

Model Number:

YY846

Request A Quote

Product Details

Max Load:

100N

Load Gauge Accuracy:

±0.2% Of Full Scale

Dimensions:

280 X 230 X 735 Mm （L×W×H）

Weight::

25kg

Standards::

16 CFR 1500.51-53

Highlight:

ASTM PS79-96 snap button tester

motorized push pull tension meter

textile testing equipment with warranty

Payment & Shipping Terms

Minimum Order Quantity

Set/Sets

Price

pending

Packaging Details

280 x 230 x 735 mm

Delivery Time

Payment Terms

L/C, T/T

Supply Ability

High Precision Sensitivity Automatic Industrial Metal Detector Machine for Food Meat Vegetables Fish

Get Best Price

Video

Highly Sensitive Textile Testing Equipment for Metal Detection in Food and Medicine

Get Best Price

Video

Advanced Technology Textile Testing Equipment for Detecting Metals in Moisture and Frozen Products

Get Best Price

Fabric Textile Color Assessment Cabinet Matching Chamber Light Box for Inspection

Get Best Price

86-769-26622869

Contact Now

Product Description

ASTM PS79-96 Snap Button Motorized Push and Pull Tester With Tension Meter

Product Specifications

Attribute	Value
Max load	100N
Load gauge Accuracy	±0.2% of full scale
Dimensions	280 x 230 x 735 mm (L×W×H)
Weight	25kg
Standards	16 CFR 1500.51-53

Product Description

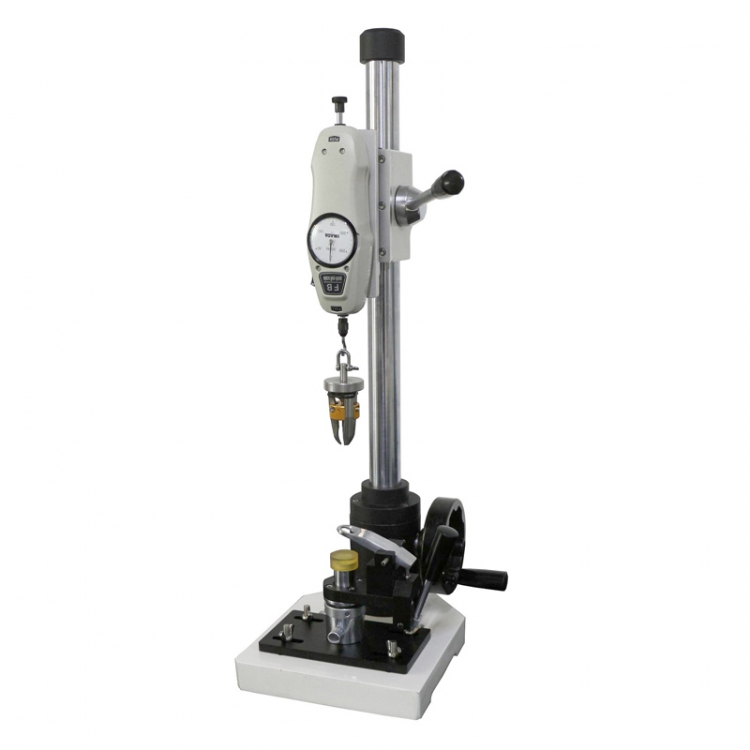

The button snap pull tester determines the holding or breaking strength of prong-ring attached snap fasteners onto garments. Consists of an Upper Snap Clamp, a Lower Fabric Clamp & Force Gauge mounted on a Stand. The snap component is gripped by the Upper Snap Clamp and the garment is fixed to the lower Fabric Clamp. By turning the Top Flywheel, the operator can apply a specific force and the holding force or the breaking strength can be recorded.

Used for measuring the responsibility of garment manufacturer to ensure button and firmware can be fixed on the ready-made garments properly, avoiding button drop from garment to brought danger to baby swallow. Used for testing the vertical orientation tension of button and added touch.

Main Features

Simple structure with low failure rate: Comprises a force gauge, stand, and pair of grips
Ergonomic handwheel design for comfortable operation and easy sample changing
Precision force gauge or digital gauge for accurate, repeatable test results
Modular design allows easy installation/removal of control rod, force gauge, and grips

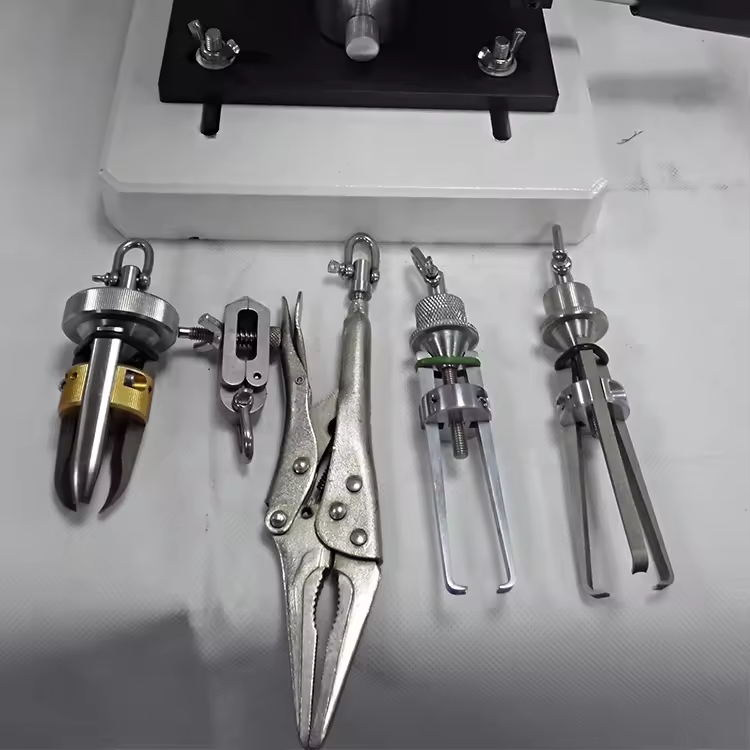

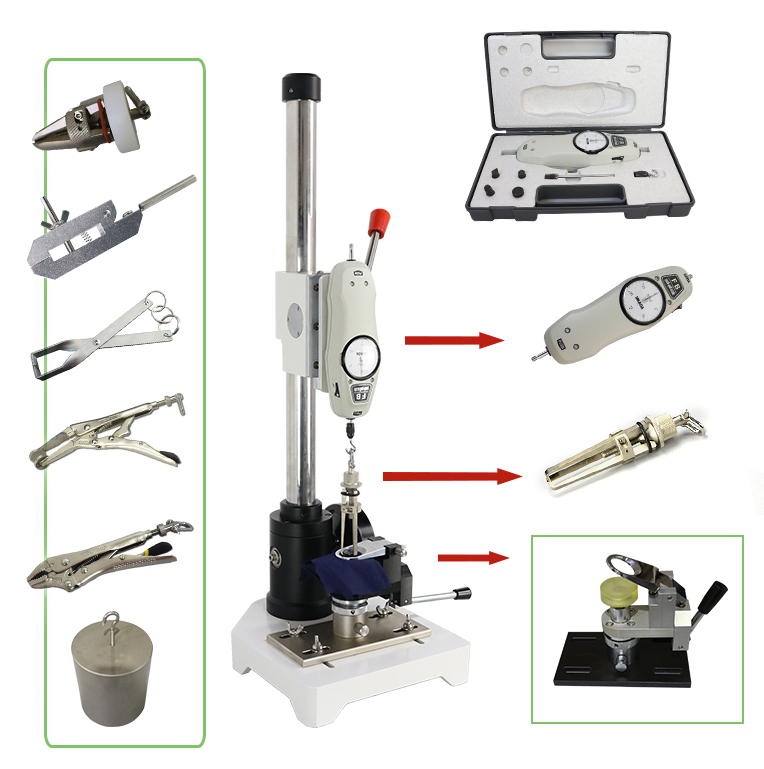

Versatile with interchangeable upper grips including long nose vise grip, three-pronged grip, and more
Diverse applications including button snap pull test, compression test, and tensile test
Easy operation with long service life, built to international standards with top-quality materials
