Name: Fabric Textile Color Assessment Cabinet Matching Chamber Light Box for Inspection
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY816
Price: 2,502.00 USD
Availability: InStock

Home > products > Textile Testing Equipment >

Fabric Textile Color Assessment Cabinet Matching Chamber Light Box for Inspection

fabric color assessment cabinet

textile inspection light box

color matching chamber for textiles

Place of Origin:

China

Brand Name:

YUYANG

Certification:

Model Number:

YY816

Request A Quote

Fabric Textile Color Assessment Cabinet Matching Chamber Light Box for Inspection

Product Details

Product Name:

Color Assessment Cabinet

Power Supply:

220V, 380V, 240V, 110V

Accuracy:

0.1K

Dimension:

72 * 53 * 56 Cm

Weight:

30kg

Interior Color:

Munsell Gray

Standard:

ASTM D1729, BS 950 PART1, DIN 6173

Use:

Textle, Leather, Chemical Plant, Printing Etc

Warranty:

1 Year

Highlight:

fabric color assessment cabinet

textile inspection light box

color matching chamber for textiles

Payment & Shipping Terms

Minimum Order Quantity

Set/Sets

Price

pending

Delivery Time

Payment Terms

L/C, T/T

Supply Ability

High Precision Sensitivity Automatic Industrial Metal Detector Machine for Food Meat Vegetables Fish

Get Best Price

Video

Highly Sensitive Textile Testing Equipment for Metal Detection in Food and Medicine

Get Best Price

Video

Advanced Technology Textile Testing Equipment for Detecting Metals in Moisture and Frozen Products

Get Best Price

Fabric Textile Color Assessment Cabinet Matching Chamber Light Box for Inspection

Get Best Price

86-769-26622869

Contact Now

Product Description

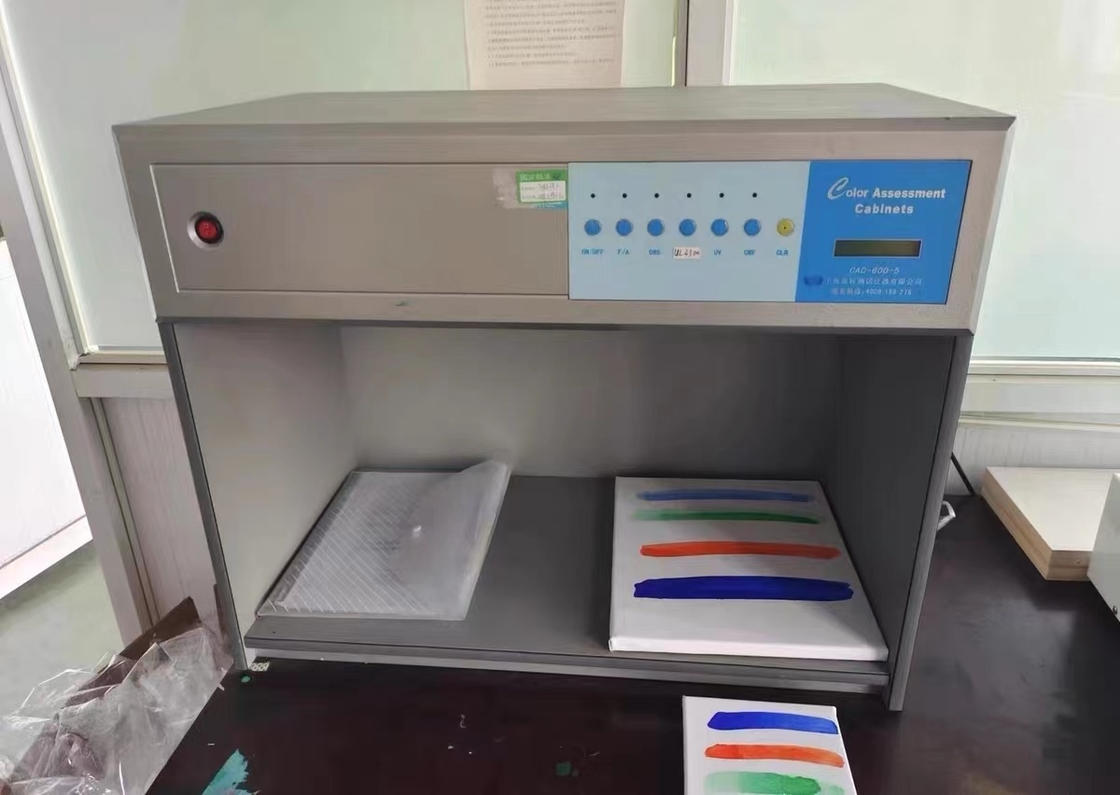

Fabric Textile Color Assessment Cabinet Matching Chamber Light Box for Inspection

Product Specifications

Attribute	Value
Product name	Color Assessment Cabinet
Power supply	220V, 380V, 240V, 110V
Accuracy	0.1K
Dimension	72 * 53 * 56 cm
Weight	30kg
Interior color	Munsell gray
Standard	ASTM D1729, BS 950 PART1, DIN 6173
Use	Textile, leather, chemical plant, printing etc
Warranty	1 year

Product Description

Fabric Textile Color Assessment Cabinet Matching Chamber Light Box for Inspection

Application

The standard light source testing cases have been widely used in spinning, printing and dyeing, leather, shoe materials, plastic cement, hardware, oil paint, printing ink, packaging, printing, electrical appliance, color materials, spray finishing, chemical engineering, cosmetics and the color management fields in various industries.

Main Functions

Separately records the use time of each light source to accurately control the best service life of the light source to avoid detection errors caused by excessive aging of the light tube.
The light source can be automatically switched and has the function of metamerism.
The instrument does not need to be warmed up and will not flicker.
Equipped with a complete set of common light sources for British and American standards to ensure fast and reliable color evaluation.
The name of the light source can be changed, making it more convenient to replace the light source.

Technical Specifications

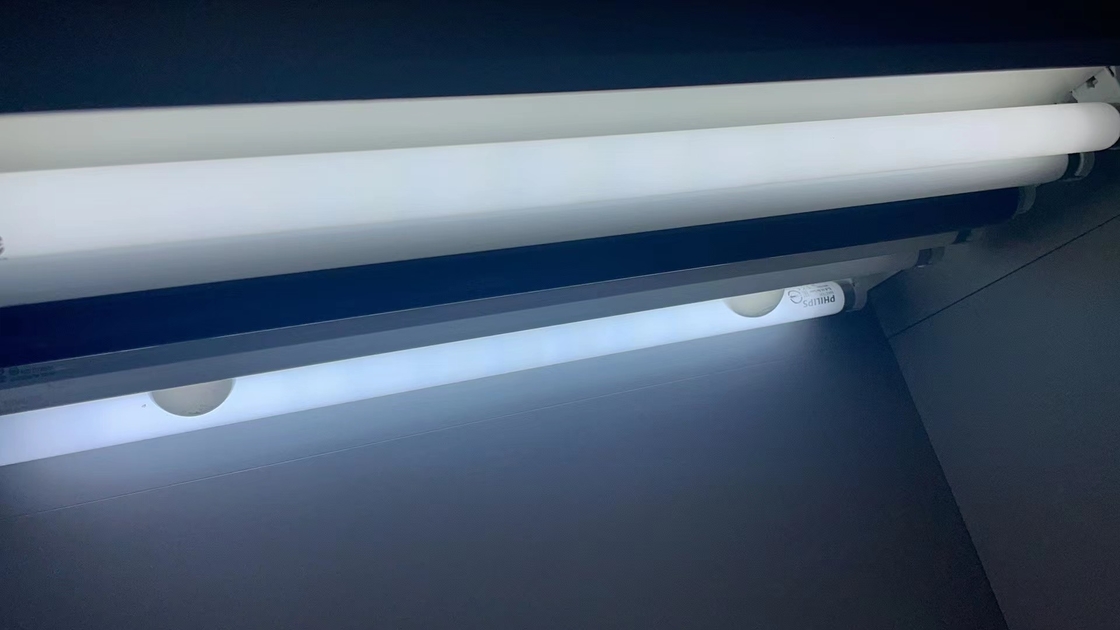

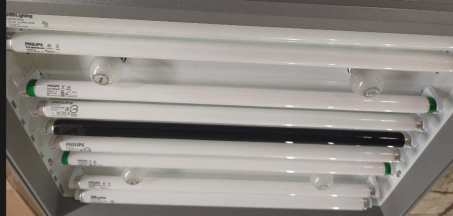

Light Source	Color Temperature	Lamp Watt	Specification	Application
D65	6500K	2pcs*18W	18W/965	International Standard Artificial Daylight
TL84	4000K	2pcs*18W	18W/840	European, Japan Shop light Source
CWF	4200K	2pcs*18W	18W/33 COOL WHITE	Cool white Fluorescent/USA Shop Source
F/A	2700K	4pcs*40W	E27 40W	Sun-setting Light Yellow Light Source
UV	/	1pcs*20W	20W BLB BLACK LIGHT	Ultraviolet Lamp

D65: Uses the artificial fluorescent lamp D65 recognized by the international institute of illumination (CIE) as the basic lighting source. In addition to being used for contrasting colors, D65 is also defined as the lighting source for gray scale contrast by people in the world.

UV: Ultraviolet light source. Because fluorescent and brightening dyes are commonly used in industrial production, the best way to detect its effects is to use ultraviolet light, because ultraviolet light is shining on a material that has been stained with fluorescent, which can be easily detected by the naked eye.

F/A: Filament Lighting is suitable for the observation of colors under the light source in the home or hotel room such as the color management of underwear, bedroom supplies and other products.

CWF/TL84: Some customers require to use this light source for color matching. For example American merchants often require the use of Cool White Fluorescent (CWF) light source or U30 light source, and European and Japanese merchant associations require the use of Triphosphor Lamp P15 (TL84) light source.

Inner size: 675*380*360mm

Machine size: 710*420*570mm 32kg

Package size: 800*500*650mm 40kg
