Name: Automatic Wire Harness Testing Equipment Cable Stripping Machine
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYW003
Price: 500 USD
Availability: InStock

Home > products > Wire Testing Equipment >

Automatic Wire Harness Testing Equipment Cable Stripping Machine

IEC 60331 Wire Testing Equipment

25mm Wire Testing Equipment

3.2mm Impact Testing Equipment

Place of Origin:

China

Brand Name:

YUYANG

Certification:

Model Number:

YYW003

Request A Quote

Automatic Wire Harness Testing Equipment Cable Stripping Machine

Product Details

Product Name:

Wire Harness Testing Equipment

Available Wire Size:

0.2 - 8mm2 (AWG24 - AWG8)

Conduit Diameter:

10mm

Cutting Length:

1 - 9999mm

Stripping Length:

Head 0 - 50mm, Tail 0 - 50mm

Memory Function:

Can Store Max. 99 Group Programs

Speed:

3000 - 8000pcs/hour

Highlight:

IEC 60331 Wire Testing Equipment

25mm Wire Testing Equipment

3.2mm Impact Testing Equipment

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

$500

Packaging Details

Wooden Box

Delivery Time

7-30 Days

Payment Terms

T/T

Single Insulated Cable Testing Equipment , IEC 60332-1 Flame Propagation Test Apparatus

Get Best Price

IEC 60332-3 Vertical Flammability Tester For Burning Behaviour Of Bunched Cables

Get Best Price

IEC60331 Wire Testing Equipment Cable Fire Resistance Test For Circuit Integrity Under Fire Conditions

Get Best Price

Halogen Acid Gas Release Corrosion Testing Equipment IEC 60754-1&2 Test Standard

Get Best Price

+86-13825723571

sales002@yuyangtest.com

86-769-26622869

Contact Now

Product Description

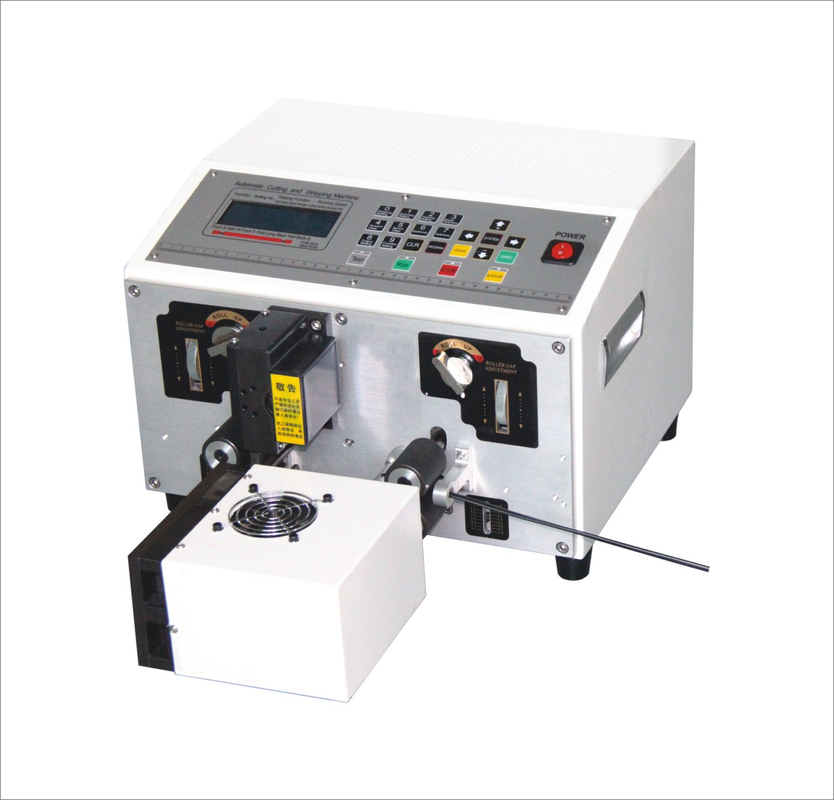

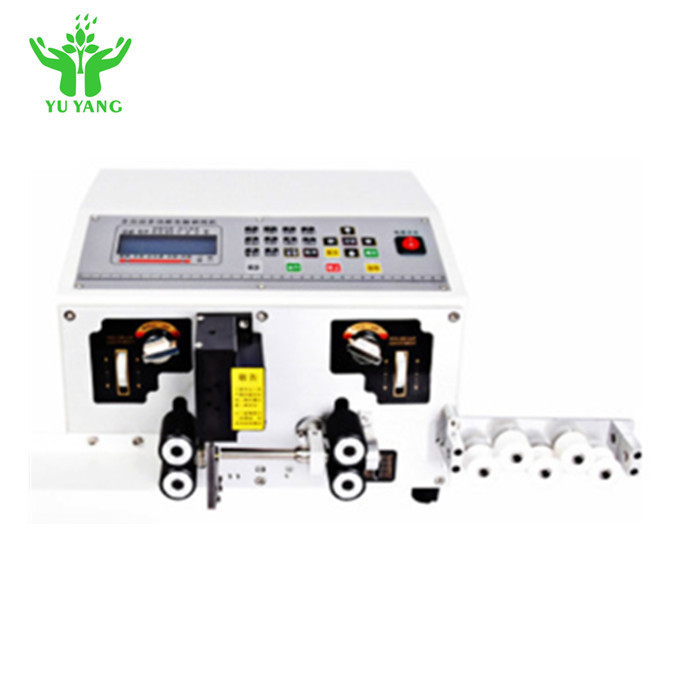

Automatic Wire Harness Testing Equipment Cable Stripping Machine 0

Product Description:

The device automatically cuts and strips two wires at the same time after setting the various parameters

offered in the computer integrated. It is easy to choose the length of the wire, the length of the stripping

or semi-stripping and the speed of processing, it can be adjusted from 0 to 9 giving an extremely fast

stripping velocity.

Parameter:

Description	wire stripping machine other harness equipments
wire size	0.2 - 8mm2 (AWG24 - AWG8)
Conduit Diameter	Φ10mm
Cutting Length	1 - 9999mm
Stripping Length	Head 0 - 50mm, Tail 0 - 50mm
Memory Function	Store Max. 99 group programs
Max. Middle Stripping Section	11
Cutting Tolerance	±(0.002×L) (L = Cutting Length)
Speed	3000 - 8000pcs/hour
Display	LCD display with english menu
Drive Mode	Four wheels drive
Blade Material	Hard tungsten steel
Power Supply	220V/50Hz 110V/60Hz
Power Rating	180W
Size	390X350X255mm
Appropriate Wire	Suitable for kinds of wires, such as PVC, Teflon, glass wires etc
Weight	34kg

Product features:

Wide application range: Wire Core Area: 0.1- 2.5 mm2 x 2 pieces. The type of wires can be plastic, PVC,

teflon and glass materials wire.

Full automatic: Full automatic production to save the labor cost. The procedures of cutting and stripping

are full automatic. It has also the function of quantify the wires.

High Precision: BW-882D uses a hard tungsten steel that improves the durability of the blade and 4

totally adjustable driving wheels to ensure the precision of the cut.

Stripping: The quality of the stripping is excellent and the pressure is easy to adjust with the computer

integrated. The machine also can strip in the middle of the wire, up to 4 stripping positions.

High Efficiency: It can strip 5000-15000 pieces/hour within 100mm length of the wire, depending on the

speed and the type of wire chosen. It can also be settled the outer diameter of the wire.

Easy to use: The parameters settings are easy to settle in the integrated computer and its display on

LCD screen is available in many languages (required), including Chinese and English. It is possible to

specify the speed rate from 0 to 9 and they are also integrated the functions of auto quantify, bundle

quantity and time postponed.
