Single Insulated Cable Testing Equipment , IEC 60332-1 Flame Propagation Test Apparatus

Single Insulated Cable Testing Equipment , IEC 60332-1 Flame Propagation Test Apparatus

cable testing equipment

spark testing equipment

Place of Origin:

CHINA

Brand Name:

YUYANG

Certification:

ISO

Model Number:

SCV

Contact Us
Request A Quote
Single Insulated Cable Testing Equipment , IEC 60332-1 Flame Propagation Test Apparatus Single Insulated Cable Testing Equipment , IEC 60332-1 Flame Propagation Test Apparatus
Product Details
Test Standard:
IEC 60332-1-1~3
Application Field:
Wire&cable
Size:
560 Mm (W) X 380 Mm (D) X 1400 Mm (H)
Color:
White
Electrical:
110V AC 60Hz / 230V AC 50Hz
Ambient Temperature:
Operating 10°C To 35°C
Warranty:
1 Year
Weight:
36Kg
Keyword:
Single Cable Flame Propagation Test Apparatus
Highlight:

cable testing equipment

,

spark testing equipment

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiable
Packaging Details
Plywood case
Delivery Time
30 days
Supply Ability
5 sets
RELATED PRODUCTS
Good price Single Insulated Cable Testing Equipment , IEC 60332-1 Flame Propagation Test Apparatus online

Single Insulated Cable Testing Equipment , IEC 60332-1 Flame Propagation Test Apparatus

Get Best Price
Good price IEC 60332-3 Vertical Flammability Tester For Burning Behaviour Of Bunched Cables online

IEC 60332-3 Vertical Flammability Tester For Burning Behaviour Of Bunched Cables

Get Best Price
Good price IEC60331 Wire Testing Equipment Cable Fire Resistance Test For Circuit Integrity Under Fire Conditions online

IEC60331 Wire Testing Equipment Cable Fire Resistance Test For Circuit Integrity Under Fire Conditions

Get Best Price
Good price Halogen Acid Gas Release Corrosion Testing Equipment IEC 60754-1&2 Test Standard online

Halogen Acid Gas Release Corrosion Testing Equipment IEC 60754-1&2 Test Standard

Get Best Price
Contact Us
+86-13825729807
markting@yuyangtest.com
86-769-26622869
Contact Now
Product Description

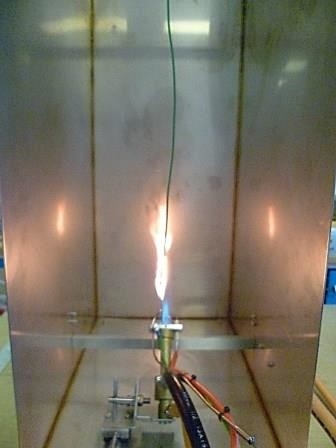

IEC 60332-1 Flame Propagation Test Apparatus for a Single Cable





Introduction

Single Cable Vertical Flame Tester is used for the vertical flame propagation of a single insulated wire or cable is a bench scale test to determine the resistance of a single cable to a 1kW flame application. It conforms to IEC60332-1-2 (flame propagation) and IEC60332-1-3 (test for flaming droplets).



Standards:

  • IEC 60332-1-1~3:2004



Features

  • Stainless steel box, the height of 1300mm, width of 300mm, depth of 450mm.

  • Two stainless steel rods, can bind single wire cable or optical cable sample.

  • 1KW mixed standard burner, can provide the standard test fire source.

  • Regulating gas and air flow rate of the rotor flow meters.

  • Pressure gauge and pressure relief valve to ensure that the pressure output is 0.1MPA.

  • Electric spark ignition device.

  • Flame height measuring tool.

  • Up to four time modes can be selected according to different sample diameters.

  • Calibration kit for the testing flame.



Installation requirements of IEC 60332-1 Flame Propagation Test Apparatus for a Single Cable

Electrical

110V AC 60Hz / 230V AC 50Hz

​Ambient Temperature

Operating 10°C to 35°C

Size

560 mm (W) x 380 mm (D) x 1400 mm (H)

Weight

36KG

Gas

air and propane



Single Insulated Cable Testing Equipment , IEC 60332-1 Flame Propagation Test Apparatus 0
