Name: DIN Abrasion Test Machine ISO 4649 Compliant Textile Testing Instrument for Counting Results
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YYW006
Price: 2,502.00 USD
Availability: InStock

Home > products > Textile Testing Equipment >

DIN Abrasion Test Machine ISO 4649 Compliant Textile Testing Instrument for Counting Results

DIN abrasion test machine for textiles

ISO 4649 compliant textile tester

textile abrasion testing instrument

Place of Origin:

China

Brand Name:

YUYANG

Certification:

Model Number:

YYW006

Request A Quote

DIN Abrasion Test Machine ISO 4649 Compliant Textile Testing Instrument for Counting Results

Product Details

Load:

2.5±0.1N; 5±0.1N; 10.0±0.2N

Specimen Size:

Diameter 16mm, Thickness 6-16mm

Rotating Drum Diameter:

150mm

Rotating Drum Speed:

40 ±1RPM

Emery Cloth Specification:

60 #, 425 ±473 ±1.5 (mm)

Testing Length:

40M (about 84 Rotations)

Horizontal Displacement:

4.2mm / Rotation

Test-Arm Weight:

250 ± 5 (g)

Shift Screw:

6 Teeth / Inch

Limit Rotation:

85 Rotations

Highlight:

DIN abrasion test machine for textiles

ISO 4649 compliant textile tester

textile abrasion testing instrument

Payment & Shipping Terms

Minimum Order Quantity

Set/Sets

Price

pending

Packaging Details

85X32X40 cm

Delivery Time

Payment Terms

L/C, D/A, T/T

Supply Ability

High Precision Sensitivity Automatic Industrial Metal Detector Machine for Food Meat Vegetables Fish

Get Best Price

Video

Highly Sensitive Textile Testing Equipment for Metal Detection in Food and Medicine

Get Best Price

Video

Advanced Technology Textile Testing Equipment for Detecting Metals in Moisture and Frozen Products

Get Best Price

Fabric Textile Color Assessment Cabinet Matching Chamber Light Box for Inspection

Get Best Price

86-769-26622869

Contact Now

Product Description

DIN Abrasion Test Machine ISO 4649 Compliant Textile Testing Instrument for Counting Results

Product Specifications

Attribute	Value
Load	2.5±0.1N; 5±0.1N; 10.0±0.2N
Specimen Size	Diameter 16mm, thickness 6-16mm
Rotating Drum Diameter	150mm
Rotating Drum Speed	40 ±1RPM
Emery Cloth Specification	60 #, 425 ±473 ±1.5 (mm)
Testing Length	40M (about 84 rotations)
Horizontal Displacement	4.2mm / rotation
Test-Arm Weight	250 ± 5 (g)
Shift Screw	6 teeth / inch
Limit Rotation	85 rotations

Product Overview

DIN Abrasion Test Machine ISO 4649 & ASTM D5963 Compliant Textile Testing Instrument for Counting Results

Product Description

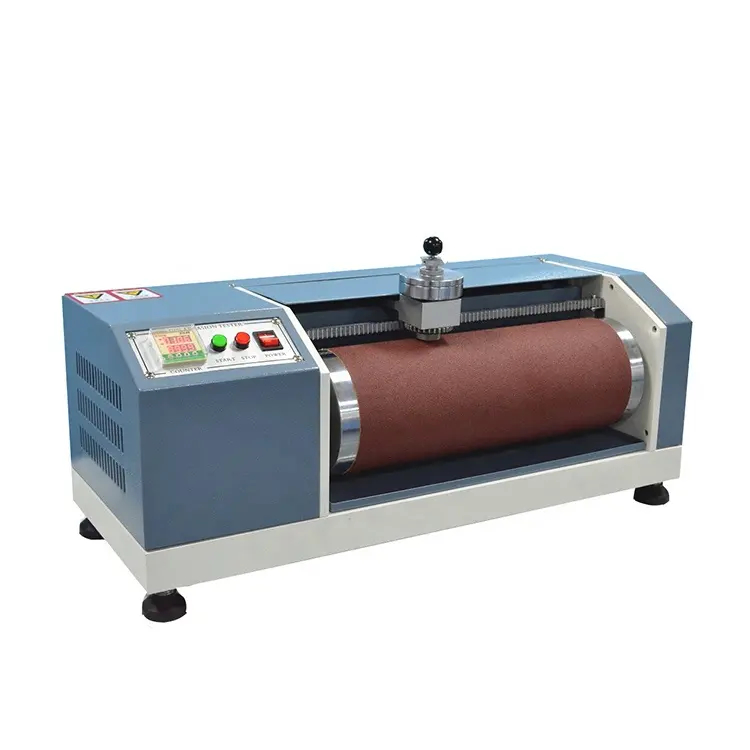

DIN Abrasion Test Machine For Rubber Plastic Leather is designed to test surface friction using a specific piece of sandpaper. After friction testing for a predetermined time, the condition of the material surface, weight, volume, and thickness are assessed to determine the abrasive nature of materials.

Testing Principle

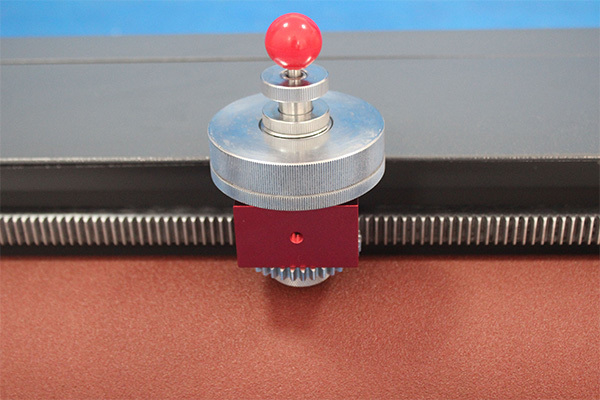

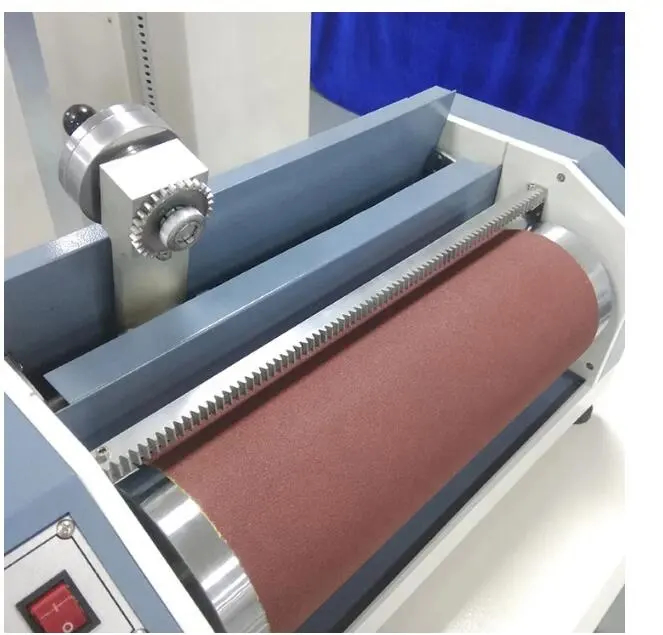

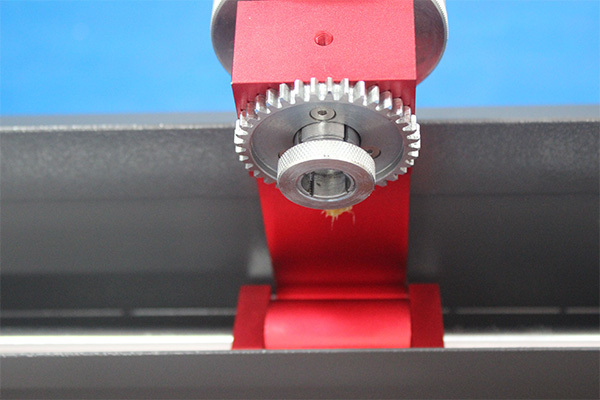

Under predetermined contact pressure and given area, the specimen is tested with sandpaper at an angle to measure abrasion resistance. The sandpaper is affixed to the surface of the drum, and samples are pressed against the drum. The specimen moves laterally along the roller, producing abrasion resistance at one end. The test measures mass loss of the specimen, with volume abrasion calculated using the specimen's density.

Compliant Standards:

DIN ISO 4649:2006-11 (E) - Rubber, vulcanized or thermoplastic - Determination of abrasion resistance using a rotating cylindrical drum device
ASTM D5963 - 04(2010)e1 Standard Test Method for Rubber Property--Abrasion Resistance (Rotary Drum Abrader)
