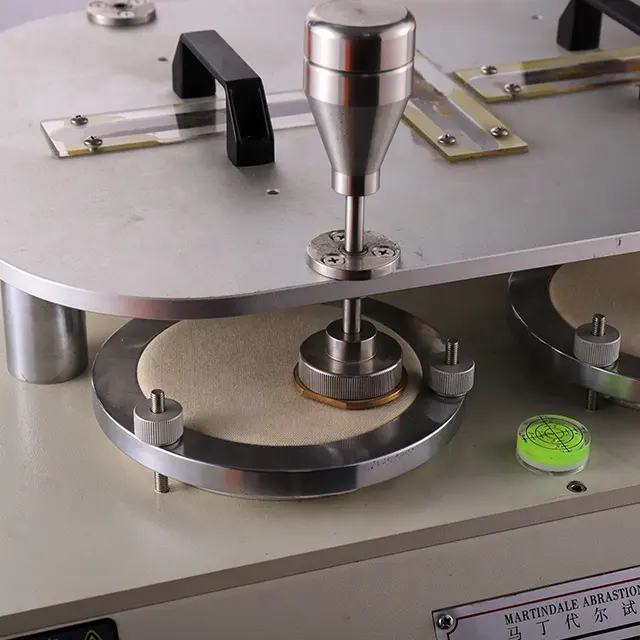

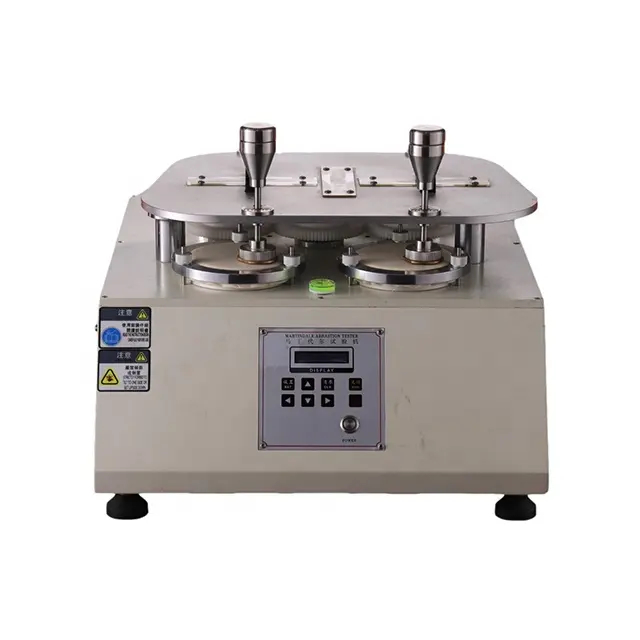

ISO 12947-2 Martindale Abrasion and Pilling Tester for Textile Resistance Testing Machine

Martindale Abrasion Tester applies to: the test of pilling degree of GB/T4802.2, ASTM D4970, ISO 12945-2 and so on. The theory: at a given pressure, circular fabric specimen and the same material carry out friction lissajous trajectory graph. After achieving the required rotation, evaluate the piling degree of the specimen.

Also applies to GB/T13775, ASTM D4966, ISO 12947 and other fabric wear tests. The theory: circular fabric sample at a certain pressure, rubbing with the standard abrasive according to lissajous curve trajectory, leading to specimen damaged, use the times of specimen damaged to represent fabric abrasion wear resistance.

• Testing Head: 4 (or 6 and 8 head could be selectable)

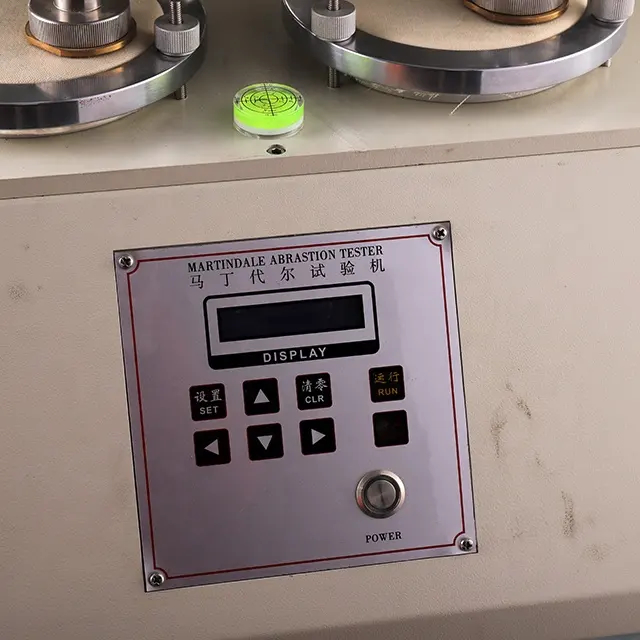

• Display: LED
• Accumulate count: 1~999999
• Dimensions (L x W x H): 880×600×410mm
• Power supply: AC380V, 180W or AC220V, 180W

• Wear resistance test: Clamps component 200 ± 1g, cloth sample hammer 395 ± 2g, furniture decorations specimen hammer 594 ± 2g
• Pilling test: Gripper assembly 155 ± 1g, heavy punch 260 ± 1g
• Relative velocity: 50 r/min

• Learns from advantages of domestic and foreign similar equipment's design
• Elegant appearance with touch display screen
• User-friendly interface, easy to operate
• Computer system uses two counting methods
• 8 station testing simultaneously to improve test efficiency
• Two kinds of lissajous trajectories: 24mm x 24mm and 60.5mm x 60.5mm
• Multiple trajectory matching accessories to adapt to various test method standards

• BS 3424/5690
• IWTO 40-88
• BS EN 388/530
• IWSTM 112/196
• ASTM 4966/4970
• IS 12673
• JIS L1096
• SFS 4328
• PR EN ISO 12947-1
• PR EN ISO 12945-2
• SATRA TM31
• ISO 20344

• Ballot sheet: 1pc
• Bowl shape specimen kit: 1pc
• O-rings (4,6,8)
• Abrasion weights kit (4,6,8)
• Pilling weights kit (4,6,8)
• Power line: 1pc

Wool fabric, felt, sponge, EMPA, scale, SM50 scales
